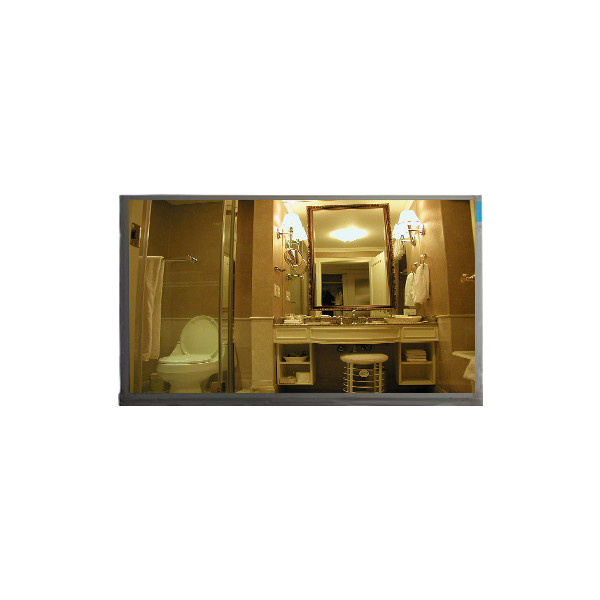

Hot Sell 1366*768 V236BJ1-P01 Rev.C3 23.6 inch LCD Module
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | V236BJ1-P01 Rev.C3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | V236BJ1-P01 Rev.C3 | Diagonal Size: | 23.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOB | Resolution: | 1366(RGB)×768, WXGA 66PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 521.471(W)×293.184(H) Mm |
| Frame Rate: | 60Hz | Used For: | TV Sets |
| Highlight: | 1366*768 LCD Module,V236BJ1-P01 Rev.C3 LCD Module,23.6 inch LCD Module |
||
Product Description
Hot Sell 1366*768 V236BJ1-P01 Rev.C3 23.6 inch LCD Module
V236BJ1-P01 Rev.C3 LCD Panel Product details :
| Brand | Innolux |
| Model P/N | V236BJ1-P01 Rev.C3 |
| Diagonal Size | 23.6" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1366(RGB)×768, WXGA 66PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 521.471(W)×293.184(H) mm |
| Bezel Opening | - |
| Outline (mm) | 535.06×307.34×1.32 (H×V×D) |
| Treatment | Antiglare (Haze 1%), Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 3000 : 1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥20) |
| Response | 8.5 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | MVA, Normally Black, Transmissive |
| Glass Thickness | 0.50+0.50 mm |
| Transmissivity | 5.6% (Typ.)(with Polarizer) |
| Color Depth | 16.7M 69%NTSC |
| Backlight | No B/L |
| Mass | 500±15g |
| Used for | TV Sets |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Driver IC list | Built-in COF 2 source COF + 2 gate COG chips |
| Signal Type | LVDS (1 ch, 8-bit), Connector30 pins |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Hot Sell 1366*768 V236BJ1-P01 Rev.C3 23.6 inch LCD Module | |
V236BJ1-P01 Rev.C3 LCD Screen Regarding Us:
For over a decade, we have been a trusted name in the Chinese market, specializing in the sale of high-quality LCD screens. Our extensive experience and dedication have allowed us to cater to a diverse range of industries, particularly focusing on industrial and medical applications. Whether you need compact screens as small as 0.5 inches or larger displays up to 88 inches, we have a broad selection to meet your requirements.
Our Product Range
We offer a comprehensive range of LCD screens from some of the most renowned and reliable brands in the industry. Our inventory includes:
Hitachi: Known for their durable and high-performance displays.
Samsung: Leading the market with cutting-edge technology and innovation.
Sharp: Renowned for their crystal-clear display quality and reliability.
NEC: A preferred choice for professional-grade monitors and displays.
Tianma: Recognized for their advanced industrial display solutions.
AUO: Providing a wide range of sizes and applications.
Fujitsu: Offering robust and efficient LCD solutions.
Kyocera: Known for their long-lasting and high-quality displays.
Technical Support
Beyond just providing screens, we also offer partial technical support to ensure that you can make the most out of your purchase. Our technical team is always ready to assist you with installation, troubleshooting, and any other technical queries you might have. We are committed to ensuring that our customers not only receive top-tier products but also the support they need to operate them efficiently.

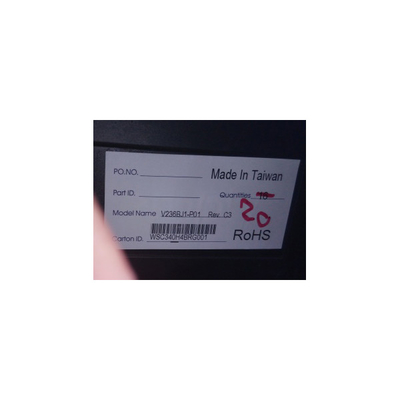

V236BJ1-P01 Rev.C3 LCD Panel Shipping and Package :
V236BJ1-P01 Rev.C3 LCD Screen Shipping Information:
Quality Assurance
Before shipping, we conduct rigorous testing on all our LCD screens to ensure they meet our high standards of quality and performance. This thorough testing process helps us guarantee that you receive a product that is in perfect working condition.
Shipping Timeline
Once your payment is confirmed, we will proceed with the shipping process. Typically, we ship orders within 1-3 working days. Please be assured that we prioritize efficiency and aim to get your order to you as quickly as possible.
Shipping Address
We ship orders according to the shipping address provided at the time of purchase. If you need to change the shipping address, please contact us promptly to update your information before we dispatch your order. It's crucial to inform us in advance to avoid any shipping delays or errors.
Estimated Delivery Time
The delivery time for your order may vary depending on your location. Generally, you can expect your package to arrive within 7-30 days. Delivery times can differ significantly between countries due to factors such as customs processing and local postal services.
V236BJ1-P01 Rev.C3 LCD Screen Returns Policy :
30-Day Money Back Guarantee
If you are not entirely satisfied with your LCD screen purchase, you can return it within 30 days of the purchase date for a full refund.
Return Process
Contact Us: To initiate a return, please contact our customer service team. Provide your purchasing information, including the order number and any other details that were sent to you at the time of purchase. This information helps us process your return efficiently.
Return Period: Ensure that your return is made within 30 days from the date of purchase. Returns made after this period may not be eligible for a refund.
Important Notes
The returned item must be in its original condition, including all accessories and packaging materials.
We recommend using a trackable shipping method for your return to ensure that it reaches us safely.
Once we receive and inspect the returned item, we will process your refund. Please allow a few business days for the refund to appear in your account.
V236BJ1-P01 Rev.C3 LCD Panel FAQ :
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
Q: How to order if I don't know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: When would you ship,IF I order V236BJ1-P01 Rev.C3 now?
A: The order are shipped within 1-2 working days after received the payment.
