19.0 Inch 1280*1024 30pin EDP LCD Screen Display Panel HSD190ME13-A02
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD190ME13-A02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD190ME13-A02 | Diagonal Size: | 19.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA 86PPI | Active Area: | 376.32(W)×301.056(H) Mm |
| Outline Size: | 396(W)×324(H) ×18.6(D) Mm | Brightness: | 270 Cd/m² (Typ.) |
| Contrast Ratio: | 700:1 (Typ.) (TM) | Response Time: | 2/6 (Typ.)(Tr/Td) |
| Panel Weight: | 2.30±0.12Kgs | Application: | Desktop Monitor |
| High Light: | EDP LCD Screen Display Panel,30pin LCD Screen Display Panel,HSD190ME13-A02 EDP LCD Screen |
||
Product Description

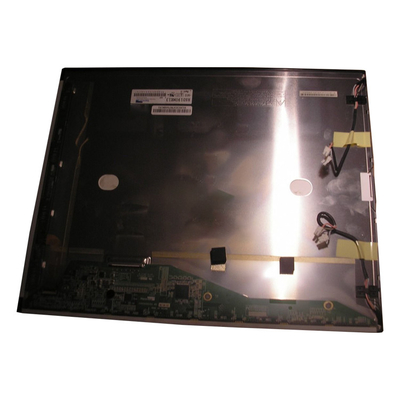

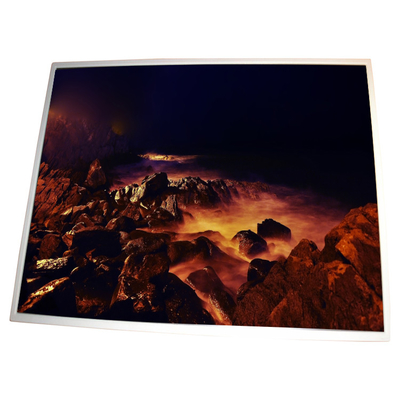

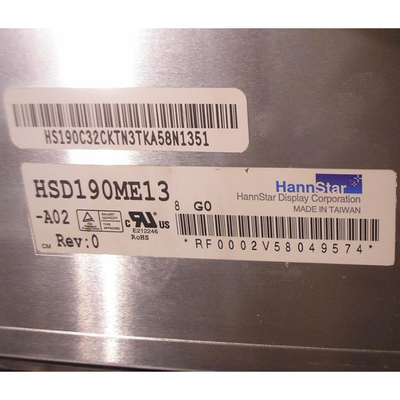

19.0 Inch 1280*1024 30pin EDP LCD Screen Display Panel HSD190ME13-A02
19.0 inch 1280*1024 TFT LCD Panda HSD190ME13-A02 30 pin EDP LCD Screen
HSD190ME13-A02 Product details :
| HannStar LCD Screen HSD190ME13-A02 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD190ME13-A02 |
| Diagonal Size | 19.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×1024, SXGA 86PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 376.32(W)×301.056(H) mm |
| Outline Size | 396(W)×324(H) ×18.6(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 270 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 75/75/70/65 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 2/6 (Typ.)(Tr/Td) |
| Display Colors | 16.2M 74% NTSC |
| Lamp Type | 4 pcs CCFL , 50K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 2.30±0.12Kgs |
| Application | Desktop Monitor |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| 19.0 inch 1280*1024 TFT LCD Panda HSD190ME13-A02 30 pin EDP LCD Screen | |
HSD190ME13-A02 Hello, before placing orders:
To avoid the wrong order or buy wrong product, please double check your model and screen size and part number. If you are not sure the purpose compatibility, please send your original specific models (screen) model on the back of the screen and photos sent to us; Usually we will send the LED panel is compatible model, it may be related to your original screen model is not completely the same. But we can make sure it is suitable for the model
Note: product prototype number of links and compatible model random delivery. If you have any special requirements you need to specify the type, please inform us before order. Thank you very much.
HSD190ME13-A02 Shipping and Package :
HSD190ME13-A02 Shipping:
The cutoff time for overnight shipping is 12:00 PM CST (China time) any business day, excluding weekends and holidays. Order placed beyond cutoff time is processed in next business day. (Buyer will be receiving the product in next Tuesday, if he places the order in afternoon of Friday, and chooses overnight shipping.)
A tracking number will be emailed to customer, upon processing order. In case customer missed the notification email, please login your Whatsapp account to check order details.
The product will be shipped to confirmed address with PayPal payment. Sorry we are unable to honor any address change request.
The product is shipped in customized high-grade shipping boxes, with sufficient padding materials.
HSD190ME13-A02 Warranty Policy:
All products come with a 60 days replacement-only warranty against technical issues. This warranty does not cover any damage or improper installation caused by consumer. Any kind of product modification done by buyer will void the warranty.
HSD190ME13-A02 FAQ:
Q: Can you give me a discount if I need a large quantity of HSD190ME13-A02 ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I place order now,when will you ship the goods of HSD190ME13-A02 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders of HSD190ME13-A02 ?
A: Of course!sample order is welcome !
Q: How to make payment of HSD190ME13-A02 ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How can I trace my order of HSD190ME13-A02 ?
A: we will give you tracking number then you can trace your order from website.
