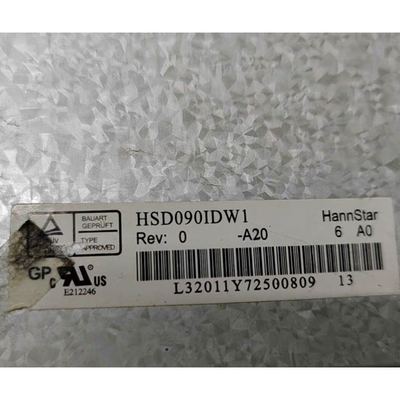

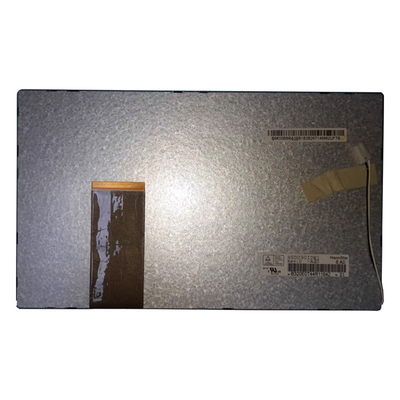

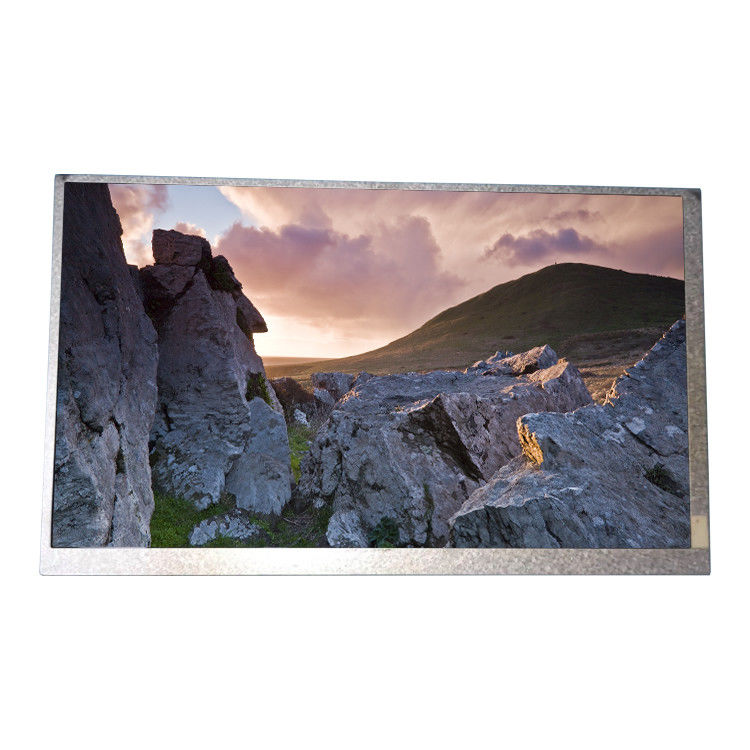

9.0 Inch 800*480 DVD Player TFT Display Module HSD090IDW1-A20
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD090IDW1-A20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton+foam |
| Delivery Time: | 3 days |
| Payment Terms: | TT/Alibaba |
| Supply Ability: | 1000pcs/week |
|
Detail Information |
|||
| Model P/N: | HSD090IDW1-A20 | Active Area: | 198(W)×112.08(H) Mm |
|---|---|---|---|
| Outline Size: | 210.7(W)×126.4(H) ×5.6(D) Mm | Response Time: | 5.5/10.5(Typ.)(Tr/Td) |
| Contrast: | 500:1 (Typ.) (TM) | Pixel Format: | RGB Vertical Stripe |
| Application: | Digital Photo Frame / Portable DVD Player | Brightness: | 250 Cd/m² (Typ.) |
| High Light: | DVD Player TFT Display Module,HSD090IDW1-A20 TFT Display Module,RGB Vertical Stripe LCD Screen Module |
||
Product Description
9.0 Inch 800*480 DVD Player TFT Display Module HSD090IDW1-A20
HSD090IDW1-A20 Applications:
HannStar LCD Screen Display Panel
The HannStar LCD Screen Display Panel provides an excellent viewing experience with its 800(RGB)×480 Resolution, HSD090IDW1-A20 Model Number, HannStar Brand Name, RGB Vertical Stripe Pixel Format, 70/70/50/60 (Typ.)(CR≥10) Viewing Angle, 500:1 (Typ.) (TM) Contrast, 201.1(W)×115.15(H) Mm Bezel Opening, 1pcs Minimum Order Quantity, Negotiable Price, Carton+foam Packaging Details, 3 days Delivery Time, TT/Alibaba Payment Terms, and 1000pcs/week Supply Ability. It is perfect for use in both commercial and residential applications, including retail stores, offices, schools, and homes.
This LCD Screen Display Panel from HannStar is easy to install and use. It has a slim design and is highly durable, making it perfect for both indoor and outdoor use. The LCD panel has a wide viewing angle, providing a clear and vivid display. It also has excellent color reproduction and contrast, making it ideal for displaying text, images, and videos.
With its wide range of features, the HannStar LCD Screen Display Panel is an excellent choice for any application. Whether you need a display for commercial purposes or for personal use, this panel is sure to provide a great viewing experience.
HSD090IDW1-A20 Technical Parameters:
|
HannStar LCD Screen HSD090IDW1-A20 |
|
|
Panel Brand |
HannStar |
|
Model P/N |
HSD090IDW1-A20 |
|
Diagonal Size |
9.0" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
800(RGB)×480, WVGA 104PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Active Area |
198(W)×112.08(H) mm |
|
Bezel Opening |
201.1(W)×115.15(H) mm |
|
Outline Size |
210.7(W)×126.4(H) ×5.6(D) mm |
|
Surface |
Antiglare, Hard coating (3H) |
|
Brightness |
250 cd/m² (Typ.) |
|
Contrast Ratio |
500:1 (Typ.) (TM) |
|
Viewing Angle |
70/70/50/60 (Typ.)(CR≥10) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Best View on |
6 o'clock |
|
Response Time |
5.5/10.5(Typ.)(Tr/Td) |
|
Display Colors |
262K/16.2M 47% NTSC |
|
Lamp Type |
3S7P WLED , 20K hours , Without Driver |
|
Frequency |
60Hz |
|
Touch Screen |
Without |
|
Panel Weight |
240g (Typ.) |
|
Application |
Digital Photo Frame / Portable DVD Player |
|
Signal Interface |
TTL (1 ch, 6/8-bit) , 50 pins FPC |
|
Input Voltage |
3.3/10/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.9G (28.4 m/s²) |
|
HSD090IDW1-A20 Original 9.0 inch 800*480 LCD Screen Display Module |
|
HSD090IDW1-A20 Product Description:
This 9.0 inch LCD Screen Display Panel (HSD090IDW1-A20) is specifically designed for small portable devices such as Digital Photo Frame and Portable DVD Player. It provides 800(RGB)×480 resolution with a weight of only 240g (Typ.), resulting in an excellent image quality and portability. The panel comes with 262K/16.2M colors and an impressive 47% NTSC color gamut as well as an A-Si TFT-LCD and LCM technology, which makes it an ideal solution for your device. Moreover, this panel is equipped with a 3S7P WLED backlight with an ultra-long lifespan of 20K hours while without driver and thus ensures a reliable performance.
HSD090IDW1-A20 Packing and Shipping:
The LCD Screen Display Panel is packaged securely for shipping. It is placed inside a box filled with protective foam to ensure it is safe and secure for transit. The box is then sealed with packing tape and labeled with the appropriate shipping information.
The LCD Screen Display Panel is typically shipped via an overnight courier service to ensure it arrives in perfect condition. Delivery times may vary depending on the destination. The package will be tracked throughout the shipping process to ensure it arrives on time.
HSD090IDW1-A20 FAQ:
Q:What is the minimum order quantity for this HSD090IDW1-A20 LCD Screen Display Panel?
A:The minimum order quantity for this HSD090IDW1-A20 LCD Screen Display Panel is 1pcs.
Q:What is the payment terms for this HSD090IDW1-A20 LCD Screen Display Panel?
A:The payment terms for this HSD090IDW1-A20 LCD Screen Display Panel is TT/Alibaba.
-
Q: Do you accept sample orders of HSD090IDW1-A20 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of HSD090IDW1-A20 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
