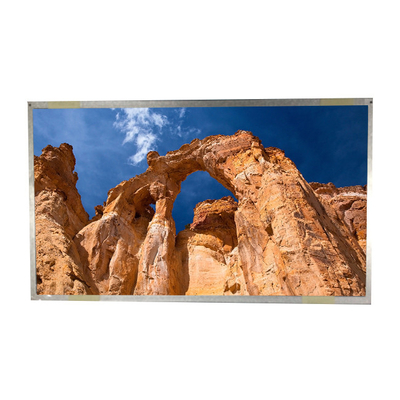

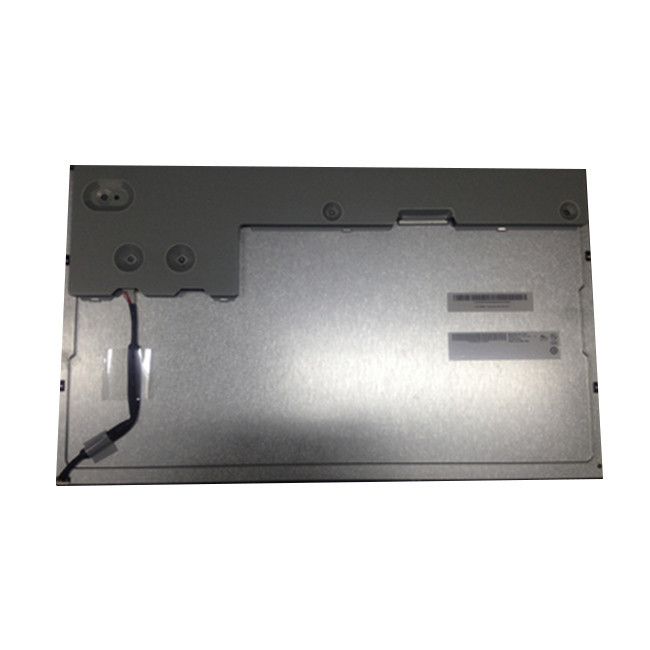

18.5inch TFT LCD Display Module 1366(RGB)×768 WXGA 84PPI Resolution
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G185XW01 V201 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G185XW01 V201 | Diagonal Size: | 18.5" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA, 84PPI | Display Size: | 409.8(W)×230.4(H) Mm |
| Outline Dim.: | 430.4(W)×254.7(H)×11.1(D) Mm | Brightness: | 450 Cd/m² (Typ.) |
| Support Color: | 16.7M , 70% NTSC | Response Time: | 3.5/1.5 (Typ.)(Tr/Td) Ms |
| Viewing Angle: | 85/85/80/80 (Typ.) (CR≥10) | Designed For: | Industrial |
| High Light: | WXGA TFT LCD Display Module,84PPI Resolution TFT LCD Display Module,G185XW01 V201 LCD Display Screen |
||
Product Description
18.5inch TFT LCD Display Module 1366(RGB)×768 WXGA 84PPI Resolution
G185XW01 V201 18.5inch 1366*768 TFT LCD Display module for industrial
G185XW01 V201 Product details :
| AUO LCD SCREEN G185XW01 V201 | |
| Panel Brand | AUO |
| Panel Model | G185XW01 V201 |
| Panel Size | 18.5 inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768, WXGA, 84PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 409.8(W)×230.4(H) mm |
| Bezel Opening | 413.4(W)×234.0(H) mm |
| Outline Size | 430.4(W)×254.7(H)×11.1(D) mm |
| Surface | Matte, Hard coating (3H) |
| Brightness | 450 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) [Transmission] |
| Viewing Angle | 85/85/80/80 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 3.5/1.5 (Typ.)(Tr/Td) ms |
| Display Colors | 16.7M , 70% NTSC |
| Lamp Type | WLED , 50K hours, with LED driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Application | Industrial |
| Panel Weight | 1.44Kgs (Max.) |
| Signal Interface | LVDS (1 ch, 8-bit) , terminal, 30 pins |
| Input Voltage | 5.0V (Typ.) |
| Environment | Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 60 °C |
| G185XW01 V201 18.5inch 1366*768 TFT LCD Display module for industrial | |
G185XW01 V201 Friendly Reminder :
We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.
If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.
G185XW01 V201 Friendly Reminder :
Installation guide is not included,We are not responsible for any damage caused by the installation of this accessory, make sure you understand how to install before ordering.
Special skills and techniques required for proper installation. We recommend you process your repairment with an assistance of a qualified technician.
Please make sure you understand disassembly procedure before purchase.It is strongly recommended that customers test the product before installation.
G185XW01 V201 About Shipping:
We will test them strictly before shipping.
We will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
G185XW01 V201 Shipping:
All items will be shipped within 48 business hours upon receipt of payment (Except Saturdays and Sundays and holidays).
7-15 working days to USA,Ship by USPS with track number.
14-22 business days to UK Australia,Canada.
18-25 business days to Greece,Spain,Poland,Norway.
18-25 business days to Germany,Filand.Sweden,Malta.
20-25 business days to France, Czech. most of Europe.
30-40 business days to other countries(Brazil and Russia).
This is the normally around ship time.if your country strict customs and will cause delay.
We are not responsible for any custom delay or tax. Import taxes are not included in the item price or shipping fee.
G185XW01 V201 Tariffs and fees:
We do not charge a fee for all customer orders, or even a part of.
When the parts arrive your local customs, if part tariffs, we will not be responsible for any customs duties or import taxes
Standard shipping items using international aviation, ship from Hong Kong needs 7-14
Working days (2-3 weeks) received most of the region.
If you do not have the date of receipt of the items from the 30 working days (5 weeks) survey, please contact us. (Russia United Kingdom. 5 to 9 weeks)
Our Working Time: Monday-Friday, Except legal holidays.
G185XW01 V201 Return :
All returns must be informed before returning.
The Buyer is ought to notify the seller of all returned items within 7 days after receiving the package. We reserve the right refusing any requirement that informs the seller longer than 7 days.
Exchange due to buyer wrong part ordered, buyer needs to pay 2-ways shipping fee.
Return items must have all original packaging and in good condition.
Return postage and insurance charge is non-refundable for refund or new shipment.
Shipping fees are non-refundable.
G185XW01 V201 FAQ:
Q: What happen if the lcd panel G185XW01 V201 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: When will my order G185XW01 V201 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q: How to order if I don't know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
