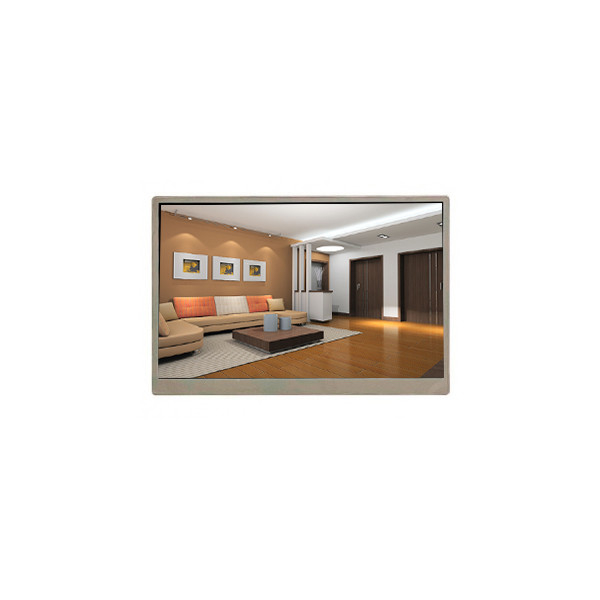

new 32.0 inch PC320CT01-1 1920*1080 60Hz LCD screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | MV190E0B-N10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | MV190E0B-N10 | Diagonal Size: | 19.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOB | Resolution: | 1280(RGB)×1024, SXGA 86PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 374.784(W)×299.827(H) Mm |
| Used For: | Desktop Monitor | Touch Screen: | Without |
Product Description
new 32.0 inch PC320CT01-1 1920*1080 60Hz LCD screen Panel
PC320CT01-1 LCD Panel Product details :
| Brand | HKC |
| Model P/N | PC320CT01-1 |
| Diagonal Size | 32.0" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1920×1080(RGB), FHD 69PPI |
| Pixel Format | RGB Horizontal Stripe |
| Active Area | 698.4(W)×392.85(H) mm |
| Bezel Opening | - |
| Outline Size | 715(W)×411(H)×1.4(D) mm |
| Brightness | 0 cd/m² |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Glass Depth | 0.50+0.50 mm |
| Display Colors | 16.7M 69%NTSC |
| Frequency | 60Hz |
| Weight | 906g (Typ.) |
| Surface | Antiglare (Haze 3%), Hard coating (3H) |
| Contrast Ratio | 3000:1 (Typ.) (TM) |
| Display Mode | FSA, Normally Black, Transmissive |
| Response Time | 8.5 (Typ.)(G to G) |
| Transmissivity | 5.5% (Typ.)(with Polarizer) |
| Lamp Type | No B/L |
| Touch Screen | Without |
| Application | TV Sets |
| Driver IC | COFBuilt-in 2 source chips |
| Signal Interface | LVDS (2 ch, 8-bit), 51 pinsConnector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 60 °C ;Storage Temp.: -20 ~ 60 °C |
| new 32.0 inch PC320CT01-1 1920*1080 60Hz LCD screen Panel | |
PC320CT01-1 LCD Panel Shipping and Package :
PC320CT01-1 LCD Panel FAQ :
Q: Are you manufactory or trade company?
A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: When will my order PC320CT01-1 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel PC320CT01-1 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
