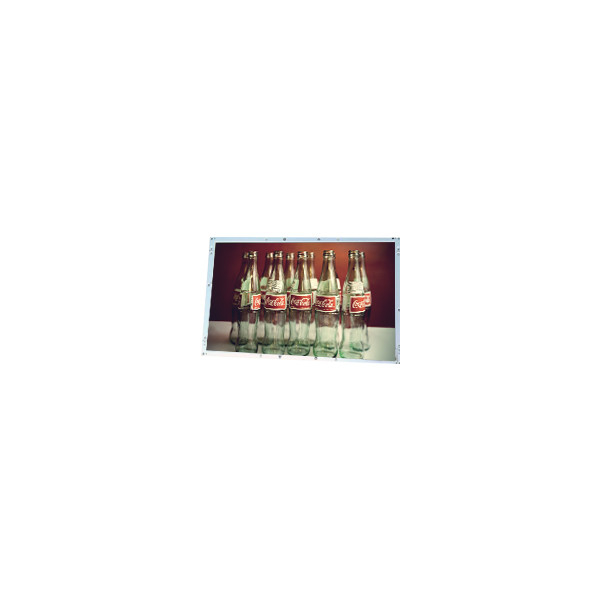

1366*768 LQ0DZC0128 32.0 inch lcd Screen for TV Sets
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ0DZC0128 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ0DZC0128 | Diagonal Size: | 32.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOB | Resolution: | 1366(RGB)×768, WXGA 49PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 697.685(W)×392.256(H) Mm |
| Application: | TV Sets | Touch Screen: | Without |
Product Description
1366*768 LQ0DZC0128 32.0 inch lcd Screen for TV Sets
LQ0DZC0128 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ0DZC0128 |
| Diagonal Size | 32.0" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1366(RGB)×768, WXGA 49PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 697.685(W)×392.256(H) mm |
| Bezel Opening | - |
| Outline Dim. | 709.3(H)×403.9(V)×1.8(D) mm |
| Treatment | Antiglare, Hard coating (2H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 5000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 7 (Typ.)(G to G) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Operating Mode | ASV, Normally Black, Transmissive |
| Plate Thickness | 0.70+0.70 mm |
| Transmittance | - |
| Support Color | 16.7M 77%NTSC |
| Light Source | No B/L |
| Weight | 1.15±0.10Kgs |
| Designed For | TV Sets |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| D-IC Detail | COF Built-in 10 source + 3 gate chips |
| Interface Type | LVDS (1 ch, 8-bit), 30 pinsConnector |
| Power Supply | 12.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -25 ~ 60 °C |
| 1366*768 LQ0DZC0128 32.0 inch lcd Screen for TV Sets | |
LQ0DZC0128 LCD Panel Attention:
Before placing an order for purchase, the buyer must confirm the screen model needs.
If you are not sure about the model of the screen, please contact us at the first time.
We will distinguish and prevent you from buying the wrong screen.
If the buyer's mistake let screen make the screen unusable, all the freight incurred shall be borne by the buyer.
LQ0DZC0128 LCD Panel Shipping and Package :
LQ0DZC0128 LCD Panel Shipping Information :
Shipping Agency: We utilize a reputable and efficient shipping agency known for its reliability and professionalism. Our goal is to ensure fast and secure delivery of your order.
Delivery Time: Typically, our standard delivery time ranges from 3 to 7 business days for shipments worldwide. This timeframe is subject to regional variations and potential delays beyond our control.
Additional Charges: Please note that import duties, taxes, and other related charges are not included in the item price or shipping charges. These charges, if applicable, are the responsibility of the buyer and may be assessed upon delivery by customs authorities in the destination country.
LQ0DZC0128 LCD Panel Return Note :
Model Confirmation: When placing an order for our LCD screen, please ensure that the model number matches exactly with the one you intend to replace. This is crucial to avoid purchasing the wrong product that may not function properly in your device.
Installation Caution: Before confirming that the screen does not work properly, refrain from using adhesive to attach our screen to your equipment. If adhesive is applied and the screen is installed, we regret that we cannot accept returns or provide refunds. This precaution is essential to ensure that our products remain in their original condition for potential troubleshooting or returns.
LQ0DZC0128 LCD Panel FAQ :
Q: If I place order now,when will you ship the goods of LQ0DZC0128 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can You declare my order of LQ0DZC0128 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods LQ0DZC0128 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can I pay my order of LQ0DZC0128 Avia credit card ?
A: Yes!you can use your credit card through your Paypal account.
Want to Know more details about this product
