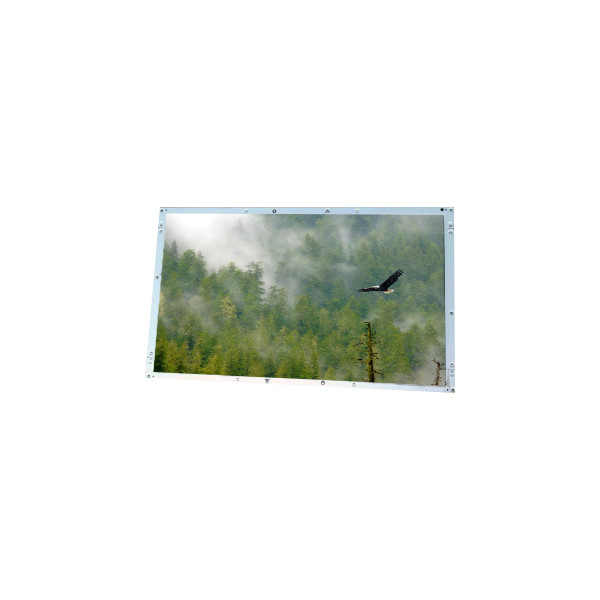

1920*1080 LK695D3LA08 70 inch 120Hz LCD screen for TV Sets
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LK695D3LA08 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LK695D3LA08 | Diagonal Size: | 70" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGBY)×1080, FHD 31PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 1538.88(W)×865.62(H) Mm |
| Application: | TV Sets | Touch Screen: | Without |
Product Description
1920*1080 LK695D3LA08 70 inch 120Hz LCD screen for TV Sets
LK695D3LA08 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LK695D3LA08 |
| Diagonal Size | 70" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGBY)×1080, FHD 31PPI |
| Pixel Format | RGBY Vertical Stripe |
| Active Area | 1538.88(W)×865.62(H) mm |
| Bezel Opening | - |
| Outline Dim. | 1593.4(H)×924.2(V)×51.7(D) mm |
| Treatment | Antiglare, Hard coating (2H) |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 5000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 4 (Typ.)(G to G) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Operating Mode | ASV, Normally Black, Transmissive |
| Support Color | 1.07B 92%DCI-P3 |
| Light Source | WLED, 60K hours, W/O Driver |
| Weight | 28.5±0.5Kgs |
| Designed For | TV Sets |
| Frame Rate | 120Hz |
| Touch Panel | Without |
| Interface Type | LVDS (4 ch, 10-bit), 92 pinsConnector |
| Power Supply | 12.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -25 ~ 60 °C |
| 1920*1080 LK695D3LA08 70 inch 120Hz LCD screen for TV Sets | |
LK695D3LA08 Pre-Order Check:
Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.
Note:
Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!
LK695D3LA08 LCD Panel Shipping and Package :
LK695D3LA08 Shipping Information:
Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.
Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.
Shipments will be processed within 3 business days of receiving payment.
Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.
LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.
Attention to Russian Customers:
For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.
LK695D3LA08 About the Goods:
Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.
While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.
LK695D3LA08 LCD Panel FAQ :
Q: How long the warranty of lcd LK695D3LA08 ?
A: 90 days .
Q: Can you test the lcd panel LK695D3LA08 before shipping ?
A: Yes , of course , don't worry , our item was tested ok before shipping .
Q: Do you accept the sample order LK695D3LA08 ?
A: Yes , sample order is welcome.
Q: Can you declared low value of my order LK695D3LA08 ?
A: Yes , we can , you can tell us before shipping .
Want to Know more details about this product
