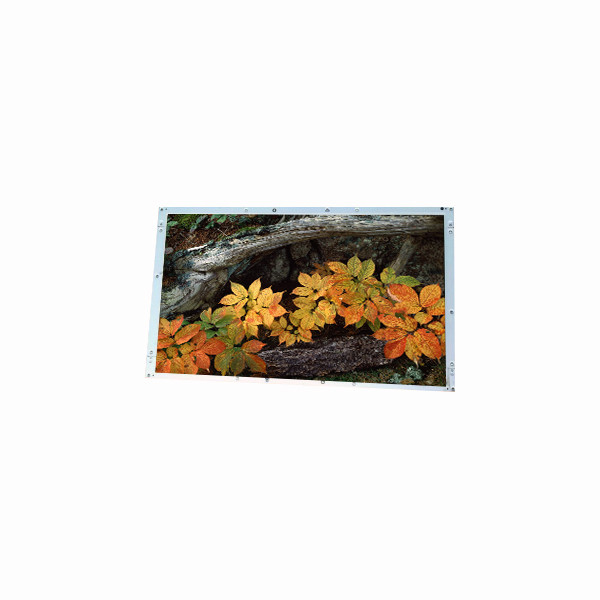

LK400D3LC03 1920*1080 40 inch 76%NTSC LCD Screen Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LK400D3LC03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LK400D3LC03 | Diagonal Size: | 40" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 55PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 885.6(W)×498.15(H) Mm |
| Touch Panel: | Without | Designed For: | TV Sets |
Product Description
LK400D3LC03 1920*1080 40 inch 76%NTSC LCD Screen Monitor
LK400D3LC03 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LK400D3LC03 |
| Diagonal Size | 40" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 55PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 885.6(W)×498.15(H) mm |
| Bezel Opening | 892.6(W)×504.2(H) mm |
| Outline Size | 914.6(W)×529.1(H)×25.6(D) mm |
| Treatment | Antiglare (Haze 7%), Hard coating (3H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 5000 : 1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Response | 6 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | ASV, Normally Black, Transmissive |
| Color Depth | 1.07B 76%NTSC |
| Backlight | 4 stringsWLED, 50K hours, No Driver |
| Mass | 7.60±1.00Kgs |
| Used for | TV Sets |
| Refresh Rate | 120Hz |
| Touchscreen | Without |
| Signal Type | LVDS (4 ch, 10-bit), 92 pinsConnector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LK400D3LC03 1920*1080 40 inch 76%NTSC LCD Screen Monitor | |
LK400D3LC03 Pre-Order Check:
Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.
Note:
Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!
LK400D3LC03 LCD Panel Shipping and Package :
LK400D3LC03 Shipping Information:
Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.
Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.
Shipments will be processed within 3 business days of receiving payment.
Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.
LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.
Attention to Russian Customers:
For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.
LK400D3LC03 About the Goods:
Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.
While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.
LK400D3LC03 LCD Panel FAQ :
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: When would you ship,IF I order LK400D3LC03 now?
A: The order are shipped within 1-2 working days after received the payment.
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
Q: How to order if I don't know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
