32.0 inch LK315T3LZ93 2000:1 (Typ.) 1366*768 LVDS LCD Screen Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LK315T3LZ93 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LK315T3LZ93 | Diagonal Size: | 32.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1366(RGB)×768, WXGA 49PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 697.685(W)×392.256(H) Mm |
| Touch Panel: | Without | Designed For: | TV Sets |
Product Description

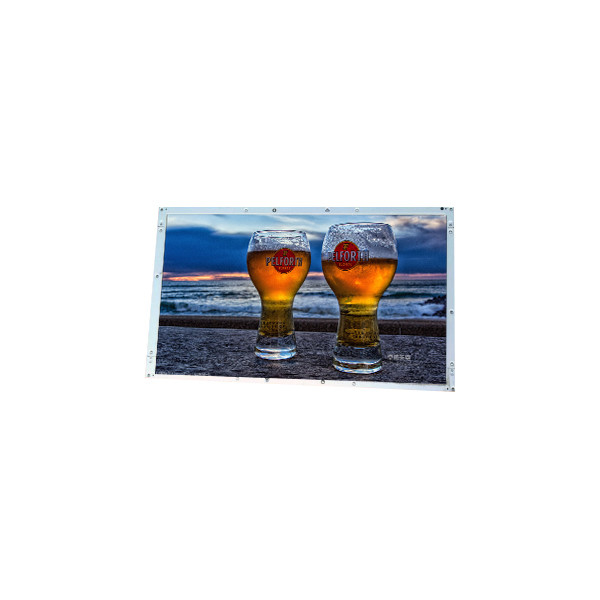

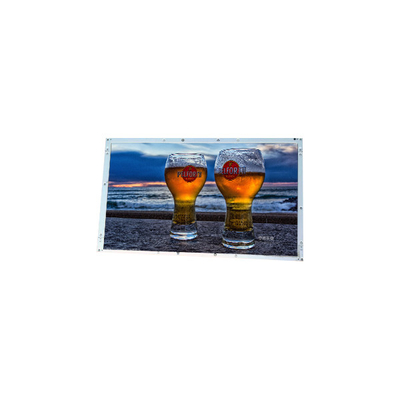

32.0 inch LK315T3LZ93 2000:1 (Typ.) 1366*768 LVDS LCD Screen Monitor
LK315T3LZ93 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LK315T3LZ93 |
| Diagonal Size | 32.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 49PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 697.685(W)×392.256(H) mm |
| Bezel Opening | 706.7(W)×401.3(H) mm |
| Outline Dim. | 760(W)×450(H)×50(D) mm |
| Luminance | 500 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Support Color | 16.7M 73% NTSC |
| Weight | 6.50±0.50Kgs |
| Frame Rate | 60Hz |
| Treatment | Antiglare, Hard coating (3H) |
| Contrast Ratio | 2000:1 (Typ.) (TM) |
| Response Time | 6 (Typ.)(G to G) |
| Operating Mode | ASV, Normally Black, Transmissive |
| Light Source | CCFL [12 pcs] , 60K hours , With Inverter |
| Designed For | TV Sets |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 8-bit)30 pins Connector |
| Power Supply | 12.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -25 ~ 60 °C |
| 32.0 inch LK315T3LZ93 2000:1 (Typ.) 1366*768 LVDS LCD Screen Monitor | |
LK315T3LZ93 Pre-Order Check:
Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.
Note:
Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!
LK315T3LZ93 LCD Panel Shipping and Package :
LK315T3LZ93 Shipping Information:
Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.
Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.
Shipments will be processed within 3 business days of receiving payment.
Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.
LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.
Attention to Russian Customers:
For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.
LK315T3LZ93 About the Goods:
Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.
While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.
LK315T3LZ93 LCD Panel FAQ :
Q: What happen if the lcd panel LK315T3LZ93 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Are you manufactory or trade company?
A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: When will my order LK315T3LZ93 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
