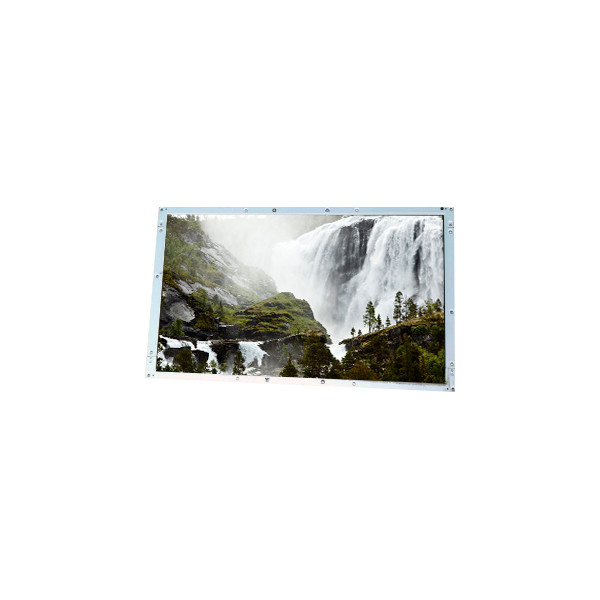

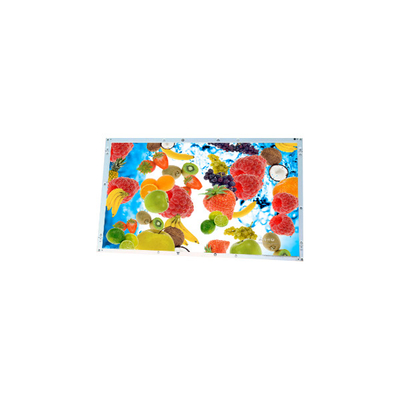

LK315T3LF14 1366*768 32.0 inch 37 pins lcd screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LK315T3LF14 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LK315T3LF14 | Diagonal Size: | 32.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1366(RGB)×768, WXGA 49PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 697.685(W)×392.256(H) Mm |
| Power Supply: | 5.0V (Typ.) | Designed For: | TV Sets |
Product Description
LK315T3LF14 1366*768 32.0 inch 37 pins lcd screen
LK315T3LF14 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LK315T3LF14 |
| Diagonal Size | 32.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 49PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 697.685(W)×392.256(H) mm |
| Bezel Opening | - |
| Outline Dim. | 760(H)×450(V) mm |
| Treatment | Antiglare, Hard coating (2H), Antireflection |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 1200:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 6 (Typ.)(G to G) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Operating Mode | ASV, Normally Black, Transmissive |
| Support Color | 16.7M |
| Light Source | CCFL [16 pcs], 60K hours, With Inverter |
| Weight | 7.50±0.30Kgs |
| Designed For | TV Sets |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 8-bit), 37 pinsConnector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -25 ~ 60 °C |
| LK315T3LF14 1366*768 32.0 inch 37 pins lcd screen | |
LK315T3LF14 LCD Panel Attention:
Before placing an order for purchase, the buyer must confirm the screen model needs.
If you are not sure about the model of the screen, please contact us at the first time.
We will distinguish and prevent you from buying the wrong screen.
If the buyer's mistake let screen make the screen unusable, all the freight incurred shall be borne by the buyer.
LK315T3LF14 LCD Panel Shipping and Package :
LK315T3LF14 LCD Panel Shipping Information :
Shipping Agency: We utilize a reputable and efficient shipping agency known for its reliability and professionalism. Our goal is to ensure fast and secure delivery of your order.
Delivery Time: Typically, our standard delivery time ranges from 3 to 7 business days for shipments worldwide. This timeframe is subject to regional variations and potential delays beyond our control.
Additional Charges: Please note that import duties, taxes, and other related charges are not included in the item price or shipping charges. These charges, if applicable, are the responsibility of the buyer and may be assessed upon delivery by customs authorities in the destination country.
LK315T3LF14 LCD Panel Return Note :
Model Confirmation: When placing an order for our LCD screen, please ensure that the model number matches exactly with the one you intend to replace. This is crucial to avoid purchasing the wrong product that may not function properly in your device.
Installation Caution: Before confirming that the screen does not work properly, refrain from using adhesive to attach our screen to your equipment. If adhesive is applied and the screen is installed, we regret that we cannot accept returns or provide refunds. This precaution is essential to ensure that our products remain in their original condition for potential troubleshooting or returns.
LK315T3LF14 LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of LK315T3LF14 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders for LK315T3LF14 ?
A: Of course!sample order is welcome !
Q: How to make payment for LK315T3LF14 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my goods LK315T3LF14 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
