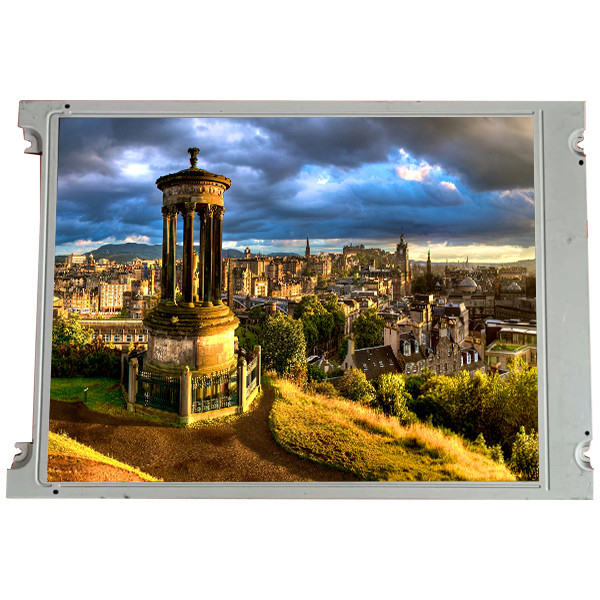

• BM080A002A 32.0 inch 1366*768 lcd display panel For KOE
BM080A002A 32.0 inch 1366*768 lcd display panel For KOE

BM080A002A 32.0 inch 1366*768 lcd display panel For KOE

Product Details:

Place of Origin: China
Brand Name: KOE
Model Number: BM080A002A

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Model Name: BM080A002A Diagonal Size: 32.0"
Panel Type: A-Si TFT-LCD, LCM Resolution: 1366(RGB)×768, WXGA 49PPI
Pixel Format: RGB Vertical Stripe Active Area: 697.685(W)×392.256(H) Mm
Luminance: 450 Cd/m² (Typ.) Contrast Ratio: 850:1 (Typ.) (TM)
Designed For: TV Sets Power Supply: 12.0V (Typ.)

Product Description

BM080A002A 32.0 inch 1366*768 lcd display panel For KOE



BM080A002A LCD Panel Product details :



Brand HITACHI
Model P/N BM080A002A
Diagonal Size 32.0"
Panel Type a-Si TFT-LCD, LCM
Resolution 1366(RGB)×768, WXGA 49PPI
Pixel Format RGB Vertical Stripe
Active Area 697.685(W)×392.256(H) mm
Bezel Opening 704.7(W)×399.3(H) mm
Outline Size 760(W)×450(H)×49(D) mm
Brightness 450 cd/m² (Typ.)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10)
Best View on Symmetry
Display Colors 16.7M 76%NTSC
Frequency 60Hz
Weight 7.00Kgs
Surface Antiglare
Contrast Ratio 850:1 (Typ.) (TM)
Display Mode IPS-Pro, Normally Black, Transmissive
Response Time 8/6 (Typ.)(Tr/Td)
Lamp Type 16 pcs EEFL, With Inverter
Touch Screen Without
Application TV Sets
Signal Interface LVDS (1 ch, 8-bit), 30 pinsConnector
Input Voltage 12.0V (Typ.)
Environment Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
BM080A002A 32.0 inch 1366*768 lcd display panel For KOE



BM080A002A LCD Panel Shipping and Package :

BM080A002A 32.0 inch 1366*768 lcd display panel For KOE 0



BM080A002A LCD Screen Shipping Information :



Tracking Number Update:
If your tracking number shows no logistics information, it could be due to delays in updates from logistics companies handling numerous parcels. Please reach out to us immediately instead of opening a dispute. We are committed to resolving any issues promptly and ensuring your satisfaction.



Time of Shipment:
We aim to ship all products within 1-5 weekdays. Our packing and shipping process is tailored to customer orders and involves thorough quality checks before dispatch. Therefore, a brief handling period is required to ensure product quality.



Delivery Time:
Unforeseen circumstances like hurricanes or rainstorms may affect logistics, causing delays. We assure you that we are honest sellers who prioritize your satisfaction. Kindly allow the logistics company adequate processing time to deliver your package to you.



Local Post Office Handling:
If your logistics information indicates that the package has reached the local post office but you haven't been contacted, please proactively reach out to your local post office to arrange for package collection. Failure to do so may result in the parcel being returned, and any consequences will be the buyer's responsibility.



Protection Time Extension:
Should the product protection period expire after we've shipped your item, please extend the protection period by contacting us promptly.



Import Duties:
Please note that import duties, taxes, and charges are not included in the item price or shipping charges. These additional costs are the responsibility of the buyer. We advise buyers to be aware of their country's import regulations and associated fees before making a purchase.


BM080A002A LCD Screen Quality & Warranty :



Quality Assurance: We ensure the quality of all LCD (touch screen) products through comprehensive testing using specialized equipment. Our commitment is to deliver only products of the highest quality. We understand that any issues with the product become our responsibility, and we strive to prevent such occurrences.


Product Dissatisfaction: In the event that you are dissatisfied with our products, we kindly request that you notify us within 3 days of receiving your parcel. To facilitate the resolution process, please provide real pictures and other evidence showcasing the issue. Upon verification, we will offer either a replacement or refund if the products do not meet the described specifications.


Return Policy: If you have possessed the item for more than 7 days, it is deemed used or second-hand. Under these circumstances, we can only provide a replacement service after receiving the returned item.


BM080A002A LCD Panel FAQ :



Q: Are you manufactory or trade company?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.



Q: Can you declared low value for my order when shipping?

A: Yes, We can do it for you if you need.



Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .



Q: Why big order delivery time are long?

A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!



BM080A002A LCD Screen Service Hours :



For any inquiries or issues, please feel free to contact us. We are dedicated to providing sincere service to our customers. Our service hours follow Beijing time:



Weekdays:
Morning: 8:00 AM to 12:00 PM
Afternoon: 1:30 PM to 6:10 PM


Additionally, we have customer service available 24 hours to assist you with problem-solving. Please don't hesitate to reach out to us whenever you need assistance.



Want to Know more details about this product
I am interested in BM080A002A 32.0 inch 1366*768 lcd display panel For KOE could you send me more details such as type, size, quantity, material, etc.
Thanks!
Waiting for your reply.
