• LC420WXN-SBA1 LCD Display Panel 1366*768 LCD Screen Module
LC420WXN-SBA1 LCD Display Panel 1366*768 LCD Screen Module

LC420WXN-SBA1 LCD Display Panel 1366*768 LCD Screen Module

Product Details:

Place of Origin: China
Brand Name: LG
Model Number: LC420WXN-SBA1

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Model Name: LC420WXN-SBA1 Diagonal Size: 42"
Panel Type: A-Si TFT-LCD, LCM Resolution: 1366(RGB)×768, WXGA 37PPI
Pixel Format: RGB Vertical Stripe Active Area: 930.25(W)×523.01(H) Mm
Support Color: 16.7M 72% NTSC Light Source: EEFL , 50K Hours , With Inverter
Designed For: TV Sets Frame Rate: 60Hz

Product Description

LC420WXN-SBA1 LCD Display Panel 1366*768 LCD Screen Module



LC420WXN-SBA1 LCD Panel Product details :



Brand LG Display
Model P/N LC420WXN-SBA1
Diagonal Size 42"
Panel Type a-Si TFT-LCD, LCM
Resolution 1366(RGB)×768, WXGA 37PPI
Pixel Format RGB Vertical Stripe
Active Area 930.25(W)×523.01(H) mm
Bezel Opening 939.0(W)×531.0(H) mm
Outline Dim. 983(W)×576(H)×52(D) mm
Luminance 500 cd/m² (Typ.)
View Direction Symmetry
Viewing Angle 89/89/89/89 (Min.)(CR≥10)
Support Color 16.7M 72% NTSC
Weight 10.5/11.0Kgs (Typ./Max.)
Frame Rate 60Hz
Treatment Antiglare (Haze 10%), Hard coating (3H)
Contrast Ratio 1200:1 (Typ.) (TM)
Response Time 5 (Typ.)(G to G)
Operating Mode S-IPS, Normally Black, Transmissive
Light Source EEFL, 50K hours , With Inverter
Designed For TV Sets
Touch Panel Without
Interface Type LVDS (1 ch, 8-bit)30 pins Connector
Power Supply 12.0V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C
LC420WXN-SBA1 LCD Display Panel 1366*768 LCD Screen Module

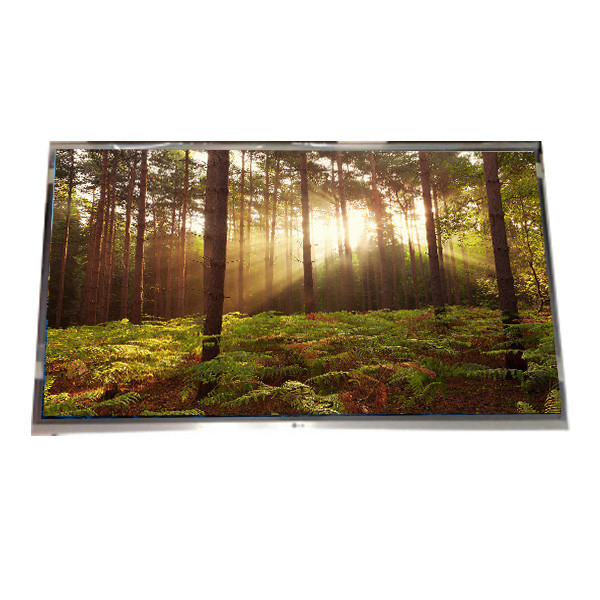

LC420WXN-SBA1 LCD Screen Photos :

Please be advised that the photos provided are for illustrative purposes only and depict items similar to the product you are considering. They serve as a general guide to help you visualize the item.

It's important to note that specific markings, labels, colors, etc., shown in the photos may not necessarily reflect the exact details of the item you will receive. If there are particular features or characteristics critical to your needs, we recommend consulting with us prior to making a purchase.

Please understand that the photos do not constitute a comprehensive description of the item, and we encourage you to reach out to us for any clarifications or additional information you may require.


LC420WXN-SBA1 LCD Panel Shipping and Package :

LC420WXN-SBA1 LCD Display Panel 1366*768 LCD Screen Module 0


LC420WXN-SBA1 LCD Screen Shipping Delivery :

Thank you for choosing our LCD screen. We understand the anticipation of receiving your order promptly. It's important to note that while we strive to provide accurate estimates for delivery times, they serve as approximations rather than guarantees.

In the majority of instances, items typically arrive within or before the estimated timeframe. However, once your goods are handed over to the delivery service, their execution and timing are beyond our direct control.

LC420WXN-SBA1 LCD Screen Returns:

1. Change of Mind or Incorrect Purchase: If you wish to return the item due to a change of mind or an incorrect purchase, please be aware that you will be responsible for reimbursing any out-of-pocket delivery costs incurred by the seller. These costs will be deducted from your refund.

2. Faulty Item Claims: In cases where you claim a fault with the item but upon inspection, no fault is found, you will be required to reimburse the seller for any out-of-pocket delivery costs incurred. Additionally, if applicable, an inspection/technical services fee may also be charged.

3. Condition of Returns: All returns must be in their original condition. Items that are returned in a condition other than their original state, including but not limited to misuse or damage, will be refused.


LC420WXN-SBA1 LCD Panel FAQ :



Q: Can you give me a discount if I need a large quantity of LC420WXN-SBA1 ?

A: Of course!If you make a large order, we will give you a discount.



Q: Can You declare my order of LC420WXN-SBA1 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .



Q: How to make payment of LC420WXN-SBA1 ?

A: We accept T/T , Paypal , western union .



Q: How long is the warranty ?

A: We offer 90 days warranty .
