42.0 inch LC420WXD-SAA1 LCD display panel 1366*768 51 Pins
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LC420WXD-SAA1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LC420WXD-SAA1 | Diagonal Size: | 42" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1366(RGB)×768, WXGA 37PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 930.25(W)×523.01(H) Mm |
| Support Color: | 16.7M/1.07B 72%NTSC | Light Source: | EEFL, 50K Hours, With Inverter |
| Designed For: | TV Sets | Frame Rate: | 120Hz |
Product Description
42.0 inch LC420WXD-SAA1 LCD display panel 1366*768 51 Pins
LC420WXD-SAA1 LCD Panel Product details :
| Brand | LG |
| Model P/N | LC420WXD-SAA1 |
| Diagonal Size | 42" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 37PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 930.25(W)×523.01(H) mm |
| Bezel Opening | 939.0(W)×531.0(H) mm |
| Outline Dim. | 983(H)×576(V)×51.8(D) mm |
| Treatment | Antiglare (Haze 13%), Hard coating (3H) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 1100:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 10 (Typ.)(MPRT) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Operating Mode | S-IPS, Normally Black, Transmissive |
| Support Color | 16.7M/1.07B 72%NTSC |
| Light Source | EEFL, 50K hours, With Inverter |
| Weight | 10.5/11.0Kgs (Typ./Max.) |
| Designed For | TV Sets |
| Frame Rate | 120Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8/10-bit), 51 pinsConnector |
| Power Supply | 12.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| 42.0 inch LC420WXD-SAA1 LCD display panel 1366*768 51 Pins | |

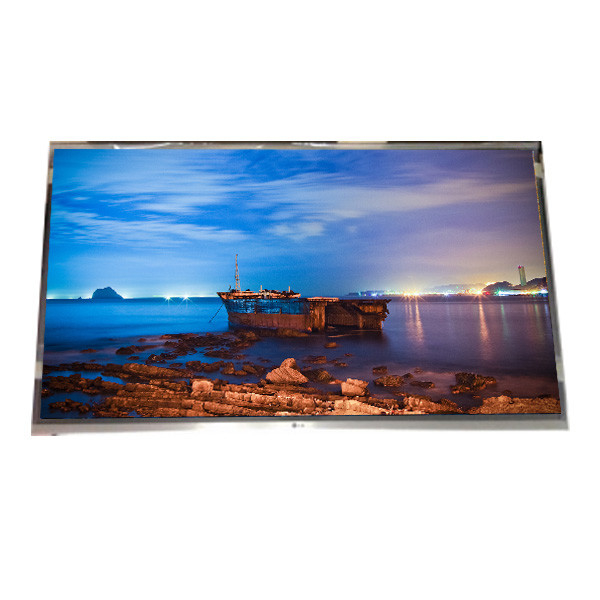

LC420WXD-SAA1 LCD Screen Photos :
Please be advised that the photos provided are for illustrative purposes only and depict items similar to the product you are considering. They serve as a general guide to help you visualize the item.
It's important to note that specific markings, labels, colors, etc., shown in the photos may not necessarily reflect the exact details of the item you will receive. If there are particular features or characteristics critical to your needs, we recommend consulting with us prior to making a purchase.
Please understand that the photos do not constitute a comprehensive description of the item, and we encourage you to reach out to us for any clarifications or additional information you may require.
LC420WXD-SAA1 LCD Panel Shipping and Package :
LC420WXD-SAA1 LCD Screen Shipping Delivery :
Thank you for choosing our LCD screen. We understand the anticipation of receiving your order promptly. It's important to note that while we strive to provide accurate estimates for delivery times, they serve as approximations rather than guarantees.
In the majority of instances, items typically arrive within or before the estimated timeframe. However, once your goods are handed over to the delivery service, their execution and timing are beyond our direct control.
LC420WXD-SAA1 LCD Screen Returns:
1. Change of Mind or Incorrect Purchase: If you wish to return the item due to a change of mind or an incorrect purchase, please be aware that you will be responsible for reimbursing any out-of-pocket delivery costs incurred by the seller. These costs will be deducted from your refund.
2. Faulty Item Claims: In cases where you claim a fault with the item but upon inspection, no fault is found, you will be required to reimburse the seller for any out-of-pocket delivery costs incurred. Additionally, if applicable, an inspection/technical services fee may also be charged.
3. Condition of Returns: All returns must be in their original condition. Items that are returned in a condition other than their original state, including but not limited to misuse or damage, will be refused.
LC420WXD-SAA1 LCD Panel FAQ :
Q: If I place order now,when will you ship the goods of LC420WXD-SAA1 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How can I trace my order of LC420WXD-SAA1 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of LC420WXD-SAA1 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of LC420WXD-SAA1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
