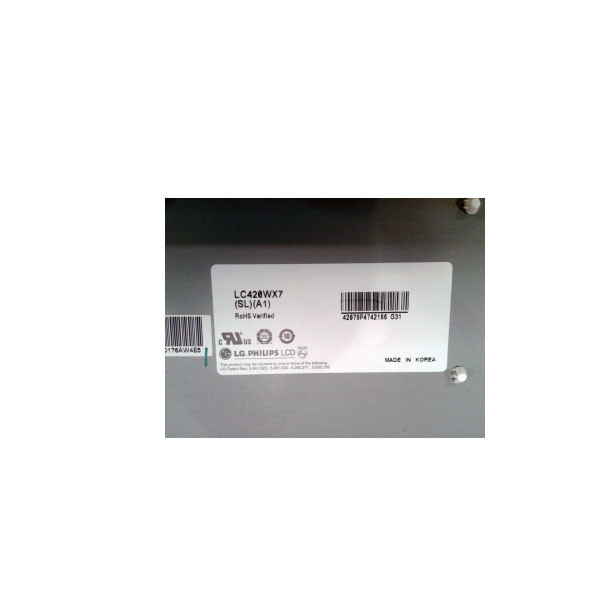

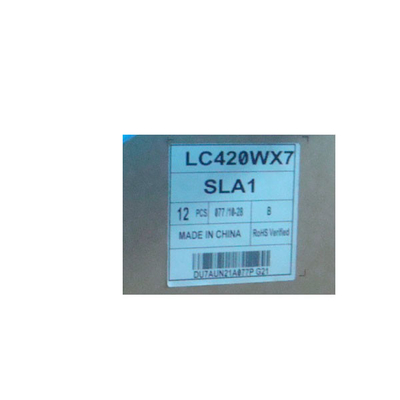

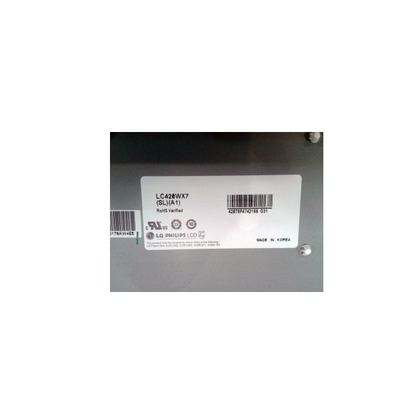

42.0 inch LC420WX7-SLA1 LCD display 1366*768 30 Pins LCD Screen
Product Details:
Place of Origin: | China |
Brand Name: | LG |
Model Number: | LC420WX7-SLA1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LC420WX7-SLA1 | Diagonal Size: | 42" |
---|---|---|---|
Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1366(RGB)×768, WXGA 37PPI |
Pixel Format: | RGB Vertical Stripe | Active Area: | 930.25(W)×523.01(H) Mm |
Support Color: | 16.7M 73%NTSC | Light Source: | EEFL, 50K Hours, With Inverter |
Designed For: | TV Sets | Frame Rate: | 60Hz |
Product Description
42.0 inch LC420WX7-SLA1 LCD display 1366*768 30 Pins LCD Screen
LC420WX7-SLA1 LCD Panel Product details :
Brand | LG |
Model P/N | LC420WX7-SLA1 |
Diagonal Size | 42" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1366(RGB)×768, WXGA 37PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 930.25(W)×523.01(H) mm |
Bezel Opening | 939.0(W)×531.0(H) mm |
Outline Dim. | 983(H)×576(V)×51.8(D)mm |
Treatment | Antiglare (Haze 13%), Hard coating (3H) |
Luminance | 500 cd/m² (Typ.) |
Contrast Ratio | 1000:1 (Typ.) (TM) |
View Direction | Symmetry |
Response Time | 10 (Typ.)(Tr+Td), 5 (Typ.)(G to G) |
Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
Operating Mode | S-IPS, Normally Black, Transmissive |
Support Color | 16.7M 73%NTSC |
Light Source | EEFL, 50K hours, With Inverter |
Weight | 10.5Kgs (Typ.) |
Designed For | TV Sets |
Frame Rate | 60Hz |
Touch Panel | Without |
Interface Type | LVDS (1 ch, 8-bit), 30 pinsConnector |
Power Supply | 12.0V (Typ.) |
Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
42.0 inch LC420WX7-SLA1 LCD display 1366*768 30 Pins LCD Screen |
LC420WX7-SLA1 LCD Panel Shipping and Package :
LC420WX7-SLA1 LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of LC420WX7-SLA1?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of LC420WX7-SLA1to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How to make payment of LC420WX7-SLA1?
A: We accept T/T , Paypal , western union .
