New 42.0 inch LC420WX5-SLA1 1366*768 Resolution LCD Display Panel
Product Details:
Place of Origin: | China |
Brand Name: | LG |
Model Number: | LC420WX5-SLA1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LC420WX5-SLA1 | Diagonal Size: | 42" |
---|---|---|---|
Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1366(RGB)×768, WXGA 37PPI |
Pixel Format: | RGB Vertical Stripe | Active Area: | 930.25(W)×523.01(H) Mm |
Support Color: | 16.7M 72% NTSC | Light Source: | CCFL [18 Pcs] , 50K Hours , With Inverter |
Designed For: | TV Sets | Frame Rate: | 60Hz |
Product Description
New 42.0 inch LC420WX5-SLA1 1366*768 Resolution LCD Display Panel
LC420WX5-SLA1 LCD Panel Product details :
Brand | LG |
Model P/N | LC420WX5-SLA1 |
Diagonal Size | 42" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1366(RGB)×768, WXGA 37PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 930.25(W)×523.01(H) mm |
Bezel Opening | 939.0(W)×531.0(H) mm |
Outline Dim. | 983(W)×576(H)×51.8(D) mm |
Luminance | 500 cd/m² (Typ.) |
View Direction | Symmetry |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
Support Color | 16.7M 72% NTSC |
Weight | - |
Frame Rate | 60Hz |
Treatment | Antiglare, Hard coating (3H) |
Contrast Ratio | 1000:1 (Typ.) (TM) |
Response Time | 10 (Typ.)(Tr+Td), 5 (Typ.)(G to G) |
Operating Mode | S-IPS, Normally Black, Transmissive |
Light Source | CCFL [18 pcs] , 50K hours , With Inverter |
Designed For | TV Sets |
Touch Panel | Without |
Interface Type | LVDS (1 ch, 8-bit)30 pins Connector |
Power Supply | 12.0V (Typ.) |
Environment | Operating Temperature: 0 ~ 40 °C; Storage Temperature: -20 ~ 50 °C |
New 42.0 inch LC420WX5-SLA1 1366*768 Resolution LCD Display Panel |

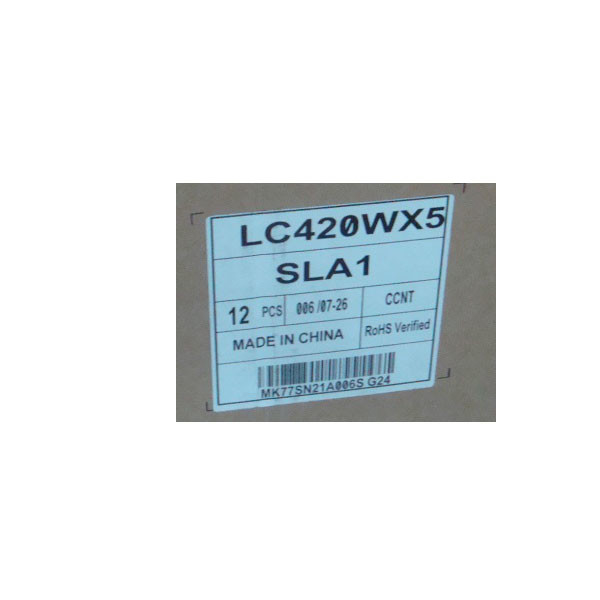

LC420WX5-SLA1 LCD Panel Shipping and Package :
LC420WX5-SLA1 LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of LC420WX5-SLA1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of LC420WX5-SLA1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How can I trace my order of LC420WX5-SLA1 ?
A: we will give you tracking number then you can trace your order from website.
Q: Do you accept sample orders of LC420WX5-SLA1 ?
A: Of course!sample order is welcome !
