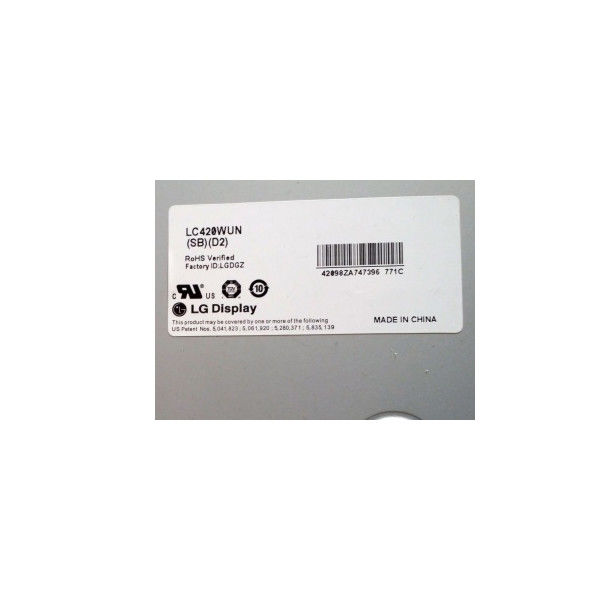

LC420WUN-SBD2 LCD Display Panel 1920*1080 LCD Screen Module
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LC420WUN-SBD2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LC420WUN-SBD2 | Diagonal Size: | 42" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 52PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 930.24(W)×523.26(H) Mm |
| Support Color: | 16.7M/1.06B 72%NTSC | Light Source: | EEFL, 50K Hours, With Inverter |
| Designed For: | TV Sets | Frame Rate: | 60Hz |
Product Description
LC420WUN-SBD2 LCD Display Panel 1920*1080 LCD Screen Module
LC420WUN-SBD2 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LC420WUN-SBD2 |
| Diagonal Size | 42" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 52PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 930.24(W)×523.26(H) mm |
| Bezel Opening | 939.0(W)×531.0(H) mm |
| Outline(mm) | 983(W)×576(H)×52(D) |
| Luminance | 450 (Typ.)(cd/m²) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 16.7M/1.06B 72% NTSC |
| Mass | 11.5/12.5Kgs (Typ./Max.) |
| Refresh Rate | 60Hz |
| Treatment | Antiglare (Haze 10%), Hard coating (3H) |
| Contrast Ratio | 1300 : 1 (Typ.) (TM) |
| Work Mode | S-IPS, Normally Black, Transmissive |
| Response | 5 (Typ.)(G to G) ms |
| Backlight | EEFL , 50K hours , With Inverter |
| Used for | TV Sets |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8/10-bit), 51 pins Connector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LC420WUN-SBD2 LCD Display Panel 1920*1080 LCD Screen Module | |
