42.0 inch LC420WUN-SBA1 LCD display panel 1920*1080 51 Pins
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LC420WUN-SBA1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LC420WUN-SBA1 | Diagonal Size: | 42" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 52PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 930.24(W)×523.26(H) Mm |
| Support Color: | 16.7M/1.06B 72%NTSC | Light Source: | EEFL, 50K Hours, With Inverter |
| Designed For: | TV Sets | Frame Rate: | 60Hz |
Product Description
42.0 inch LC420WUN-SBA1 LCD display panel 1920*1080 51 Pins
LC420WUN-SBA1 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LC420WUN-SBA1 |
| Diagonal Size | 42" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 52PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 930.24(W)×523.26(H) mm |
| Bezel Opening | 939.0(W)×531.0(H) mm |
| Outline(mm) | 983 × 576× 52 (H×V×D) |
| Treatment | Antiglare (Haze 10%), Hard coating (3H) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 1400 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Response | 5 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | S-IPS, Normally Black, Transmissive |
| Color Depth | 16.7M/1.06B 72%NTSC |
| Backlight | EEFL, 50K hours, With Inverter |
| Mass | 11.5/12.5Kgs (Typ./Max.) |
| Used for | TV Sets |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8/10-bit), 51 pinsConnector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| 42.0 inch LC420WUN-SBA1 LCD display panel 1920*1080 51 Pins | |
LC420WUN-SBA1 LCD Screen Notice:
Part Number Clarification:
Please be aware that the part numbers listed in the titles are provided solely to assist you in locating a compatible screen for your current model number. While we strive to ensure compatibility, it is not guaranteed that you will receive the exact part number as indicated in the listing title. Rest assured, we will ship a 100% compatible item equivalent to the original part number. Manufacturers frequently update and modify part numbers over time, and certain part numbers may no longer be available.
Illustrative Purposes Only:

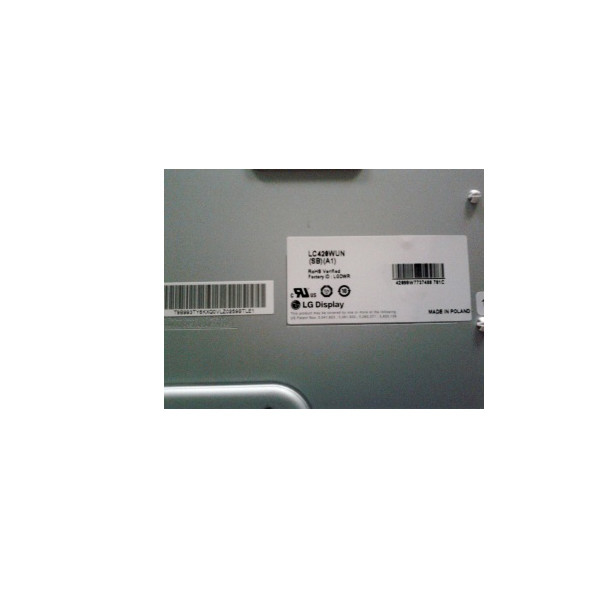

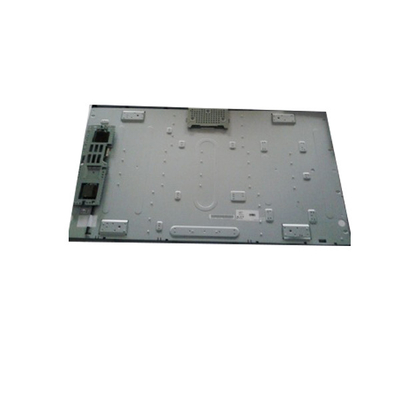

Additionally, the pictures included in the listing serve purely for illustrative purposes, intended to showcase the connector's position and the fixing points. These images are meant to provide guidance and clarity regarding the product, but the actual item shipped may vary slightly in appearance.
