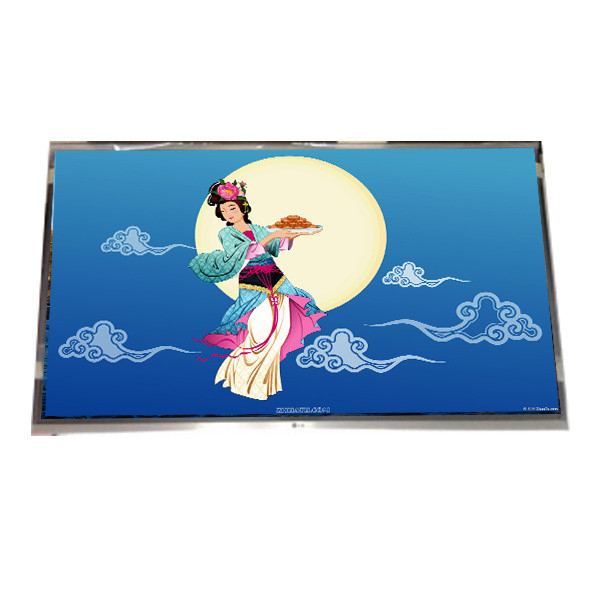

New 42.0 inch LC420WUF-SBB1 1920*1080 Resolution LCD Display Panel
Product Details:
Place of Origin: | China |
Brand Name: | LG |
Model Number: | LC420WUF-SBB1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LC420WUF-SBB1 | Diagonal Size: | 42" |
---|---|---|---|
Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 52PPI |
Pixel Format: | RGB Vertical Stripe | Active Area: | 930.24(W)×523.26(H) Mm |
Display Colors: | 16.7M/1.06B 72%NTSC | Lamp Type: | EEFL [18 Pcs] , 50K Hours , W/O Driver |
Application: | TV Sets | Frequency: | 120Hz |
Product Description
New 42.0 inch LC420WUF-SBB1 1920*1080 Resolution LCD Display Panel
LC420WUF-SBB1 LCD Panel Product details :
Brand | LG Display |
Model P/N | LC420WUF-SBB1 |
Diagonal Size | 42" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1920(RGB)×1080, FHD 52PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 930.24(W)×523.26(H) mm |
Bezel Opening | 939.0(W)×531.0(H) mm |
Outline Dim. | 983(W)×576(H)×47(D) mm |
Luminance | 500 cd/m² (Typ.) |
View Direction | Symmetry |
Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
Support Color | 16.7M/1.06B 72% NTSC |
Weight | 11.0/12.0Kgs (Typ./Max.) |
Frame Rate | 120Hz |
Treatment | Antiglare (Haze 10%), Hard coating (3H) |
Contrast Ratio | 1400:1 (Typ.) (TM) |
Response Time | 5 (Typ.)(G to G), 8 (Typ.)(MPRT) |
Operating Mode | S-IPS, Normally Black, Transmissive |
Light Source | EEFL [18 pcs] , 50K hours , W/O Driver |
Designed For | TV Sets |
Touch Panel | Without |
Interface Type | LVDS (4 ch, 8/10-bit)92 pins Connector |
Power Supply | 12.0V (Typ.) |
Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C |
New 42.0 inch LC420WUF-SBB1 1920*1080 Resolution LCD Display Panel |
LC420WUF-SBB1 LCD Panel Shipping and Package :
LC420WUF-SBB1 LCD Panel FAQ :
Q: Can You declare my order of LC420WUF-SBB1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods LC420WUF-SBB1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of LC420WUF-SBB1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I place order now,when will you ship the goods of LC420WUF-SBB1 ?
A: The order will be shipped within 2-3 working days after received your payment.
