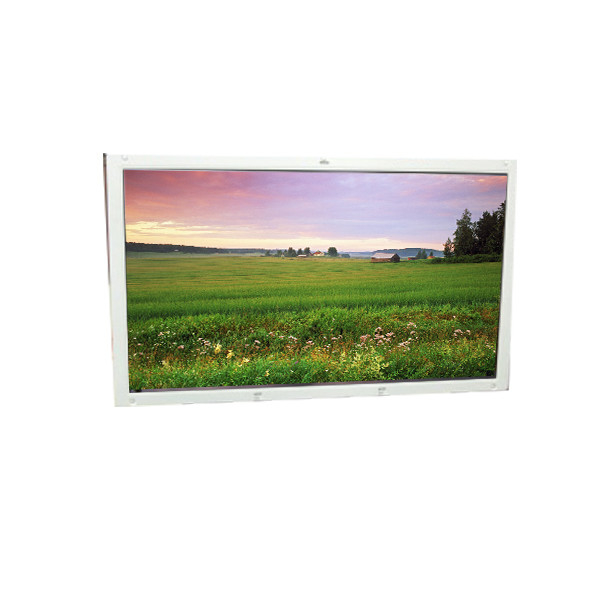

32.0 inch 1366*768 60Hz LC320W01-SL13 Lcd screen
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LC320W01-SL13 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | LC320W01-SL13 | Diagonal Size: | 32.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1366×768(RGB), WXGA 49PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 697.685(W)×392.256(H) Mm |
| Display Colors: | 16.7M 72%NTSC | Lamp Type: | 18 PcsEEFL, 50K Hours, With Inverter |
| Application: | TV Sets | Frequency: | 60Hz |
Product Description
32.0 inch 1366*768 60Hz LC320W01-SL13 Lcd screen
LC320W01-SL13 Product details :
| Brand | LG |
| Model P/N | LC320W01-SL13 |
| Diagonal Size | 32.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 49PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 697.685(W)×392.256(H) mm |
| Bezel Opening | 703.8(W)×398.4(H) mm |
| Outline (mm) | 760×450×48 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 8/10 (Typ.)(Tr/Td), 9 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | S-IPS, Normally Black, Transmissive |
| Color Depth | 16.7M 72%NTSC |
| Backlight | 18 pcsEEFL, 50K hours, With Inverter |
| Mass | 6.90Kgs (Typ.) |
| Used for | TV Sets,Digital Signage |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit), Connector30 pins |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 50 °C Operating Temp.: 0 ~ 40 °C |
| 32.0 inch 1366*768 60Hz LC320W01-SL13 Lcd screen | |
LC320W01-SL13 Important:
Specific laptop models can come in many sizes and resolutions. Laptop LCD resolution should not beupgraded or downgraded. You must
confirm that this screen matches your laptop in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility.
LC320W01-SL13 Payment and Taxes:
1. We recommend Alipay to be safer.
2. Shipment of the products outside China will incur import duties and other charges which are not included in the price or freight of the products and are for the responsibility of the recipient.
LC320W01-SL13 About transportation:
1: The recipient must be the company's full name or full name.
2: If the product ordered is very expensive, you need to get the packaging quickly. It is recommended to use DHL or EMS for transportation.
3: If you choose DHL shipping. Some DHL remote addresses require an additional remote address service fee, approximately $ 35. In some countries, aircraft cannot carry spare batteries. Some motherboards do not have a BIOS battery. You can use the original BIOS battery. I hope you can understand.
4: If a customs clearance fee is incurred, the buyer bears it.
5: After receiving the package, please check the package in time. If the packaging is damaged, save the video evidence. We can ask the logistics company to make up.
LC320W01-SL13 Return:
Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.
Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.
LC320W01-SL13 FAQ:
Q: Can you declared low value for my order LC320W01-SL13 when shipping?
A: Yes, We can do it for you if you need.
Q: Can you test the lcd panel LC320W01-SL13 before shipping ?
A: Of course , our all the lcd panel was Strictly tested before shipping .
Q: What happen if the lcd panel LC320W01-SL13 I received can't work ?
A: LG Display LC320W01-SL13 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: How long the warranty of LC320W01-SL13 ?
A: 90 days .
