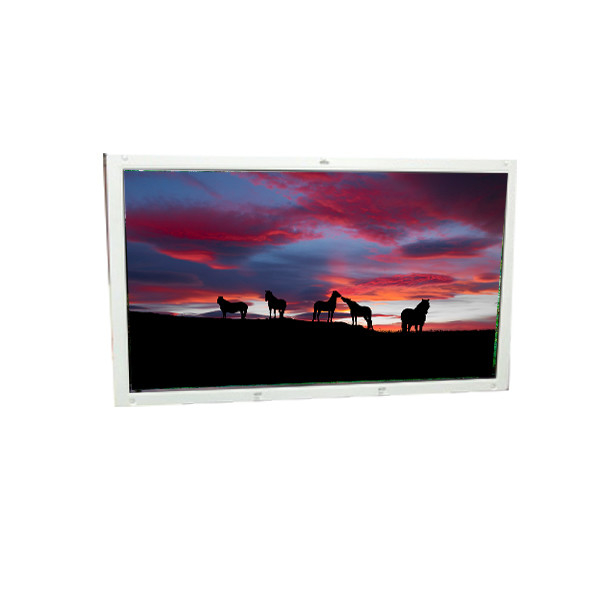

32.0 inch LCD Screen LC320W01-SL08 Lcd Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LC320W01-SL08 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | LC320W01-SL08 | Diagonal Size: | 32.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1366×768(RGB), WXGA 49PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 697.685(W)×392.256(H) Mm |
| Color Depth: | 16.7M 71%NTSC | Backlight: | EEFL [18 Pcs] , 50K Hours , With Inverter |
| Used For: | TV Sets | Refresh Rate: | 60Hz |
Product Description
32.0 inch LCD Screen LC320W01-SL08 Lcd Display Panel
LC320W01-SL08 Product details :
| Brand | LG |
| Model P/N | LC320W01-SL08 |
| Diagonal Size | 32.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 49PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 697.685(W)×392.256(H) mm |
| Bezel Opening | 703.8(W)×398.4(H) mm |
| Outline Dim. | 760(W)×450(H)×49(D) mm |
| Luminance | 500 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Support Color | 16.7M 71% NTSC |
| Weight | 6.90/7.24Kgs (Typ./Max.) |
| Frame Rate | 60Hz |
| Treatment | Antiglare, Hard coating (3H) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Response Time | 8/10 (Typ.)(Tr/Td) |
| Operating Mode | S-IPS, Normally Black, Transmissive |
| Light Source | EEFL [18 pcs] , 50K hours , With Inverter |
| Designed For | TV Sets |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 8-bit)30 pins Connector |
| Power Supply | 12.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 40 °C; Storage Temperature: -20 ~ 65 °C |
| 32.0 inch LCD Screen LC320W01-SL08 Lcd Display Panel | |
LC320W01-SL08 Important:
Specific laptop models can come in many sizes and resolutions. Laptop LCD resolution should not beupgraded or downgraded. You must
confirm that this screen matches your laptop in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility.
LC320W01-SL08 Payment and Taxes:
1. We recommend Alipay to be safer.
2. Shipment of the products outside China will incur import duties and other charges which are not included in the price or freight of the products and are for the responsibility of the recipient.
LC320W01-SL08 About transportation:
1: The recipient must be the company's full name or full name.
2: If the product ordered is very expensive, you need to get the packaging quickly. It is recommended to use DHL or EMS for transportation.
3: If you choose DHL shipping. Some DHL remote addresses require an additional remote address service fee, approximately $ 35. In some countries, aircraft cannot carry spare batteries. Some motherboards do not have a BIOS battery. You can use the original BIOS battery. I hope you can understand.
4: If a customs clearance fee is incurred, the buyer bears it.
5: After receiving the package, please check the package in time. If the packaging is damaged, save the video evidence. We can ask the logistics company to make up.
LC320W01-SL08 Return:
Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.
Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.
LC320W01-SL08 FAQ:
Q: Can You declare my order of LC320W01-SL08 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of LC320W01-SL08 ?
A: 90days warranty .
Q: How do you ship my goods LC320W01-SL08 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
LC320W01-SL08 Shipping and Package :
