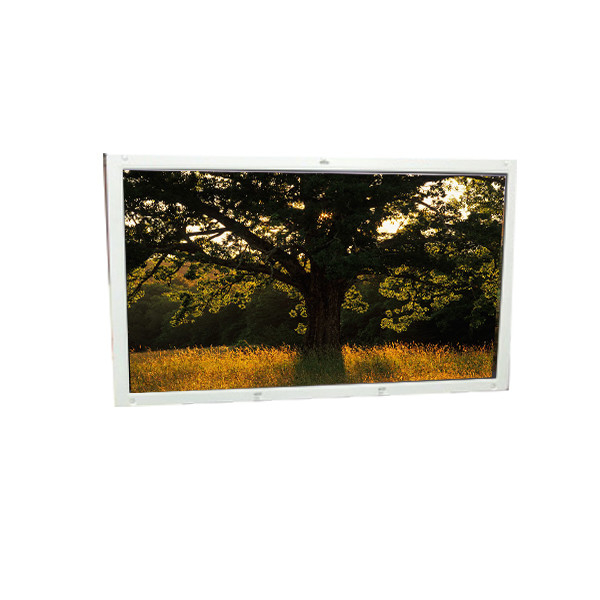

32.0 inch LC320W01-SL06 LCD display panel 1366*768 30 Pins
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LC320W01-SL06 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | LC320W01-SL06 | Diagonal Size: | 32.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1366×768(RGB), WXGA 49PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 697.685(W)×392.256(H) Mm |
| Color Depth: | 16.7M 71%NTSC | Backlight: | 18 PcsEEFL, 60K Hours, With Inverter |
| Used For: | TV Sets | Refresh Rate: | 60Hz |
Product Description
32.0 inch LC320W01-SL06 LCD display panel 1366*768 30 Pins
LC320W01-SL06 Product details :
| Brand | LG |
| Model P/N | LC320W01-SL06 |
| Diagonal Size | 32.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 49PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 697.685(W)×392.256(H) mm |
| Bezel Opening | 703.8(W)×398.4(H) mm |
| Outline Size | 760(W)×450(H)×49(D) mm |
| Brightness | 500 cd/m² (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.7M 71%NTSC |
| Frequency | 60Hz |
| Weight | 6.90/7.24Kgs (Typ./Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Display Mode | S-IPS, Normally Black, Transmissive |
| Response Time | 8/10 (Typ.)(Tr/Td), 8 (Typ.)(G to G) |
| Lamp Type | 18 pcs EEFL , 60K hours , With Inverter |
| Touch Screen | Without |
| Application | TV Sets |
| Signal Interface | LVDS (1 ch, 8-bit), 30 pinsConnector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 50 °C |
| 32.0 inch LC320W01-SL06 LCD display panel 1366*768 30 Pins | |
LC320W01-SL06 Important:
Specific laptop models can come in many sizes and resolutions. Laptop LCD resolution should not beupgraded or downgraded. You must
confirm that this screen matches your laptop in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility.
LC320W01-SL06 Payment and Taxes:
1. We recommend Alipay to be safer.
2. Shipment of the products outside China will incur import duties and other charges which are not included in the price or freight of the products and are for the responsibility of the recipient.
LC320W01-SL06 About transportation:
1: The recipient must be the company's full name or full name.
2: If the product ordered is very expensive, you need to get the packaging quickly. It is recommended to use DHL or EMS for transportation.
3: If you choose DHL shipping. Some DHL remote addresses require an additional remote address service fee, approximately $ 35. In some countries, aircraft cannot carry spare batteries. Some motherboards do not have a BIOS battery. You can use the original BIOS battery. I hope you can understand.
4: If a customs clearance fee is incurred, the buyer bears it.
5: After receiving the package, please check the package in time. If the packaging is damaged, save the video evidence. We can ask the logistics company to make up.
LC320W01-SL06 Return:
Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.
Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.
LC320W01-SL06 FAQ:
Q: Can You declare my order of LC320W01-SL06 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of LC320W01-SL06 ?
A: 90days warranty .
Q: If I order LC320W01-SL06 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for LC320W01-SL06 ?
A: Of course!sample order is welcome !
LC320W01-SL06 Shipping and Package :
