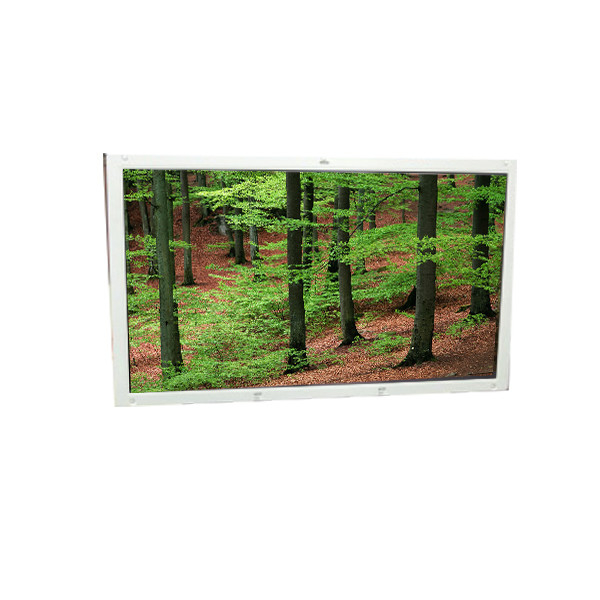

32.0 inch LC320W01-SL03 LCD display 1366*768 30 Pins LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LC320W01-SL03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | LC320W01-SL03 | Diagonal Size: | 32.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1366×768(RGB), WXGA 49PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 697.685(W)×392.256(H) Mm |
| Color Depth: | 16.7M 71%NTSC | Backlight: | 18 PcsEEFL, 60K Hours, With Inverter |
| Used For: | TV Sets | Refresh Rate: | 60Hz |
Product Description
32.0 inch LC320W01-SL03 LCD display 1366*768 30 Pins LCD Screen
LC320W01-SL03 Product details :
| Brand | LG |
| Model P/N | LC320W01-SL03 |
| Diagonal Size | 32.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 49PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 697.685(W)×392.256(H) mm |
| Bezel Opening | 703.8(W)×398.4(H) mm |
| Outline(mm) | 760 × 450× 49 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 8/10 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | S-IPS, Normally Black, Transmissive |
| Color Depth | 16.7M 71%NTSC |
| Backlight | 18 pcsEEFL, 60K hours, With Inverter |
| Mass | 6.90/7.24Kgs (Typ./Max.) |
| Used for | TV Sets |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit), 30 pins Connector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 50 °C Operating Temp.: 0 ~ 50 °C |
| 32.0 inch LC320W01-SL03 LCD display 1366*768 30 Pins LCD Screen | |
LC320W01-SL03 Important:
Specific laptop models can come in many sizes and resolutions. Laptop LCD resolution should not beupgraded or downgraded. You must
confirm that this screen matches your laptop in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility.
LC320W01-SL03 Payment and Taxes:
1. We recommend Alipay to be safer.
2. Shipment of the products outside China will incur import duties and other charges which are not included in the price or freight of the products and are for the responsibility of the recipient.
LC320W01-SL03 About transportation:
1: The recipient must be the company's full name or full name.
2: If the product ordered is very expensive, you need to get the packaging quickly. It is recommended to use DHL or EMS for transportation.
3: If you choose DHL shipping. Some DHL remote addresses require an additional remote address service fee, approximately $ 35. In some countries, aircraft cannot carry spare batteries. Some motherboards do not have a BIOS battery. You can use the original BIOS battery. I hope you can understand.
4: If a customs clearance fee is incurred, the buyer bears it.
5: After receiving the package, please check the package in time. If the packaging is damaged, save the video evidence. We can ask the logistics company to make up.
LC320W01-SL03 Return:
Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.
Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.
LC320W01-SL03 FAQ:
Q: Can You declare my order of LC320W01-SL03 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of LC320W01-SL03 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of LC320W01-SL03 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of LC320W01-SL03 ?
A: we will give you tracking number then you can trace your order from website.
LC320W01-SL03 Shipping and Package :
