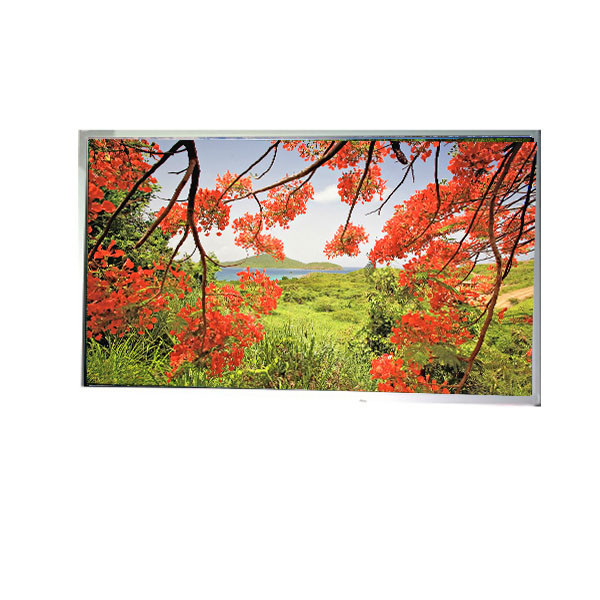

29.5 inch LC300W01-C5 LCD display 1280*768 20 Pins LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LC300W01-C5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LC300W01-C5 | Diagonal Size: | 29.5" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1280(RGB)×768, WXGA 50PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 643.2(W)×385.92(H) Mm |
| Support Color: | 16.7M 71%NTSC | Light Source: | CCFL [16 Pcs], 50K Hours, With Inverter |
| Used For: | TV Sets | Refresh Rate: | 60Hz |
Product Description
29.5 inch LC300W01-C5 LCD display 1280*768 20 Pins LCD Screen
LC300W01-C5 LCD Panel Product details :
| Brand | LG |
| Model P/N | LC300W01-C5 |
| Diagonal Size | 29.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×768, WXGA 50PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 643.2(W)×385.92(H) mm |
| Bezel Opening | 649.2(W)×391.8(H) mm |
| Outline Dim. | 697.8(H)×431.8(V)×60.9(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 16 (Typ.)(Tr) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Operating Mode | S-IPS, Normally Black, Transmissive |
| Support Color | 16.7M 71%NTSC |
| Light Source | CCFL [16 pcs], 50K hours, With Inverter |
| Weight | 6.10Kgs (Typ.) |
| Designed For | TV Sets |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 8-bit), 20 pinsConnector |
| Power Supply | 12.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 40 °C; Storage Temperature: -20 ~ 50 °C |
| 29.5 inch LC300W01-C5 LCD display 1280*768 20 Pins LCD Screen | |
LC300W01-C5 LCD Display Warning:
Installation Guide Not Included:
Please be aware that the installation guide is not included with this accessory. We want to emphasize that we cannot be held responsible for any damage resulting from improper installation. Prior to bidding, ensure that you possess the necessary expertise for installation. Your understanding in this matter is greatly appreciated.
Compatibility Guarantee:
We guarantee compatibility with your machine for the item you receive. However, please note that we only assure compatibility and cannot guarantee specific features beyond that.
Quality Assurance and Testing:
Rest assured, each screen undergoes thorough testing, ensuring 100% operational functionality before shipment. This includes repairing or replacing old, damaged, cracked, or faulty filters to maintain optimal performance standards.
Precautionary Measures Upon Receipt:
Upon receiving the product, please refrain from removing the protective film or applying adhesive on the back immediately. It is crucial to first test the machine by inserting the new screen and checking for normal sensitivity. This step ensures quality compliance and prevents potential damage to the motherboard and screen.
Safety Protocol During Testing:
Before conducting any tests, disconnect the power to prevent the risk of damaging the motherboard and screen. Failure to do so may result in irreparable damage, for which we cannot be held responsible. Please exercise caution and follow these instructions diligently.
LC300W01-C5 LCD Display Helpful Information:
We understand the importance of ensuring compatibility when purchasing an LCD display. To assist you in making the right choice and to avoid any compatibility issues, we offer the following helpful information:
Matching Size, Resolution, and Backlight:
It's crucial to match the size, resolution, and backlight specifications of the product with your existing screen. This ensures seamless integration and optimal performance. Please double-check these specifications before making your purchase.
Contact Us for Assistance:
If you are uncertain about which screen to choose or if you have any questions regarding compatibility, please don't hesitate to reach out to us. You can provide us with details such as your LCD brand, serial number, model, or the model number located on the back of your current screen. Our dedicated technicians are here to assist you in selecting the correct screen for your needs.
LC300W01-C5 LCD Panel Shipping and Package :
LC300W01-C5 LCD Panel FAQ :
Q: Can you declared low value for my order LC300W01-C5 when shipping?
A: Yes, We can do it for you if you need.
Q: Can you test the lcd panel LC300W01-C5 before shipping ?
A: Of course , our all the lcd panel was Strictly tested before shipping .
Q: What happen if the lcd panel LC300W01-C5 I received can't work ?
A: lcd display LG Display LC300W01-C5 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: How long the warranty of LC300W01-C5 ?
A: 90 days .
