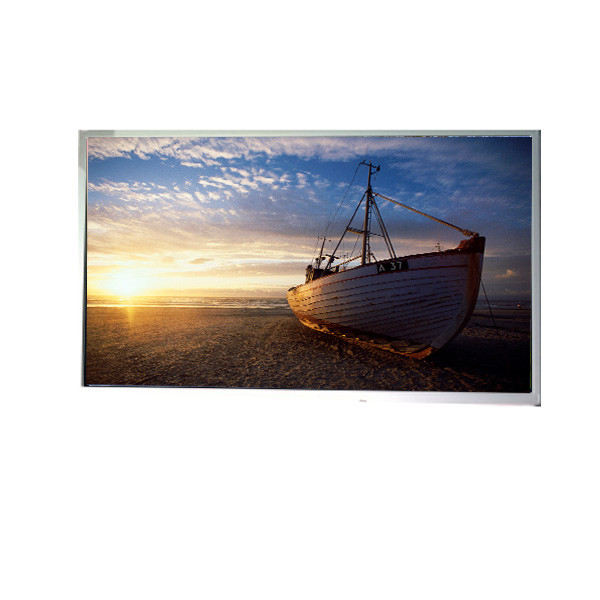

Original 29.5 inch 1280*768 Resolution LCD Screen LC300W01-A3P6
Product Details:
Place of Origin: | China |
Brand Name: | LG |
Model Number: | LC300W01-A3P6 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LC300W01-A3P6 | Diagonal Size: | 29.5" |
---|---|---|---|
Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1280(RGB)×768, WXGA 50PPI |
Pixel Format: | RGB Vertical Stripe | Active Area: | 643.2(W)×385.92(H) Mm |
Color Depth: | 16.7M 69%NTSC | Backlight: | 16 PcsCCFL, 50K Hours, With Inverter |
Used For: | TV Sets | Refresh Rate: | 60Hz |
Product Description
Original 29.5 inch 1280*768 Resolution LCD Screen LC300W01-A3P6
LC300W01-A3P6 LCD Panel Product details :
Brand | LG |
Model P/N | LC300W01-A3P6 |
Diagonal Size | 29.5" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1280(RGB)×768, WXGA 50PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 643.2(W)×385.92(H) mm |
Bezel Opening | 649.2(W)×391.8(H) mm |
Outline(mm) | 697.8 × 431.8× 51.9 (H×V×D) |
Treatment | Antiglare, Hard coating (3H) |
Luminance | 450 cd/m² (Typ.) |
Contrast Ratio | 350 : 1 (Typ.) (TM) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
Response | 25 (Typ.)(Tr) ms |
Good View at | Symmetry |
Work Mode | Normally Black, Transmissive |
Color Depth | 16.7M 69%NTSC |
Backlight | 16 pcsCCFL, 50K hours, With Inverter |
Mass | 6.70Kgs (Typ.) |
Used for | TV Sets |
Refresh Rate | 60Hz |
Touchscreen | Without |
Signal Type | LVDS (1 ch, 8-bit), 20 pinsConnector |
Voltage Supply | 12.0V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 50 °C Operating Temp.: 0 ~ 40 °C |
Original 29.5 inch 1280*768 Resolution LCD Screen LC300W01-A3P6 |
LC300W01-A3P6 LCD Panel Shipping and Package :
LC300W01-A3P6 LCD Panel FAQ :
Q: Can You declare my order of LC300W01-A3P6 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of LC300W01-A3P6 ?
A: 90days warranty .
Q: How can I trace my order of LC300W01-A3P6 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods LC300W01-A3P6 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
