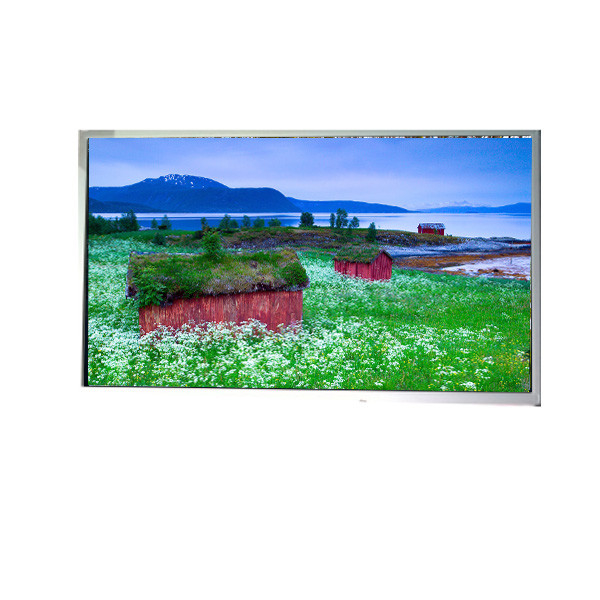

New 29.5 inch LC300W01-A3 1280*768 Resolution LCD Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LC300W01-A3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LC300W01-A3 | Diagonal Size: | 29.5" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1280(RGB)×768, WXGA 50PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 643.2(W)×385.92(H) Mm |
| Color Depth: | 16.7M 69%NTSC | Backlight: | 16 PcsCCFL, 50K Hours, Optional |
| Used For: | TV Sets | Refresh Rate: | 60Hz |
Product Description
New 29.5 inch LC300W01-A3 1280*768 Resolution LCD Display Panel
LC300W01-A3 LCD Panel Product details :
| Brand | LG |
| Model P/N | LC300W01-A3 |
| Diagonal Size | 29.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×768, WXGA 50PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 643.2(W)×385.92(H) mm |
| Bezel Opening | 649.2(W)×391.8(H) mm |
| Outline(mm) | 697.8 × 431.8× 51.9 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 350 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr) ms |
| Good View at | Symmetry |
| Work Mode | Normally Black, Transmissive |
| Color Depth | 16.7M 69%NTSC |
| Backlight | 16 pcsCCFL, 50K hours, Optional |
| Mass | 6.40/6.72Kgs (Typ./Max.) |
| Used for | TV Sets |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit), 20 pins Connector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 50 °C Operating Temp.: 0 ~ 40 °C |
| New 29.5 inch LC300W01-A3 1280*768 Resolution LCD Display Panel | |
LC300W01-A3 LCD Display Warning:
Installation Guide Not Included:
Please be aware that the installation guide is not included with this accessory. We want to emphasize that we cannot be held responsible for any damage resulting from improper installation. Prior to bidding, ensure that you possess the necessary expertise for installation. Your understanding in this matter is greatly appreciated.
Compatibility Guarantee:
We guarantee compatibility with your machine for the item you receive. However, please note that we only assure compatibility and cannot guarantee specific features beyond that.
Quality Assurance and Testing:
Rest assured, each screen undergoes thorough testing, ensuring 100% operational functionality before shipment. This includes repairing or replacing old, damaged, cracked, or faulty filters to maintain optimal performance standards.
Precautionary Measures Upon Receipt:
Upon receiving the product, please refrain from removing the protective film or applying adhesive on the back immediately. It is crucial to first test the machine by inserting the new screen and checking for normal sensitivity. This step ensures quality compliance and prevents potential damage to the motherboard and screen.
Safety Protocol During Testing:
Before conducting any tests, disconnect the power to prevent the risk of damaging the motherboard and screen. Failure to do so may result in irreparable damage, for which we cannot be held responsible. Please exercise caution and follow these instructions diligently.
LC300W01-A3 LCD Display Helpful Information:
We understand the importance of ensuring compatibility when purchasing an LCD display. To assist you in making the right choice and to avoid any compatibility issues, we offer the following helpful information:
Matching Size, Resolution, and Backlight:
It's crucial to match the size, resolution, and backlight specifications of the product with your existing screen. This ensures seamless integration and optimal performance. Please double-check these specifications before making your purchase.
Contact Us for Assistance:
If you are uncertain about which screen to choose or if you have any questions regarding compatibility, please don't hesitate to reach out to us. You can provide us with details such as your LCD brand, serial number, model, or the model number located on the back of your current screen. Our dedicated technicians are here to assist you in selecting the correct screen for your needs.
LC300W01-A3 LCD Panel Shipping and Package :
LC300W01-A3 LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of LC300W01-A3 ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I place order now,when will you ship the goods of LC300W01-A3 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders of LC300W01-A3 ?
A: Of course!sample order is welcome !
Q: Can You declare my order of LC300W01-A3 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
LC300W01-A3 LCD Display Service Hours:
Thank you for choosing our product. We are committed to providing exceptional customer service to ensure your satisfaction. Our service hours, based on Beijing time, are as follows:
Monday to Friday: 8:00 AM - 12:00 PM, 1:30 PM - 6:00 PM
However, please note that we understand your needs may arise outside of these hours. Therefore, we have dedicated customer service representatives available 24 hours a day to assist you with any inquiries or issues you may encounter.
Feel free to reach out to us at any time, and we will do our utmost to address your concerns promptly and effectively.
Thank you for your trust in our products and services. We look forward to serving you.
Want to Know more details about this product
