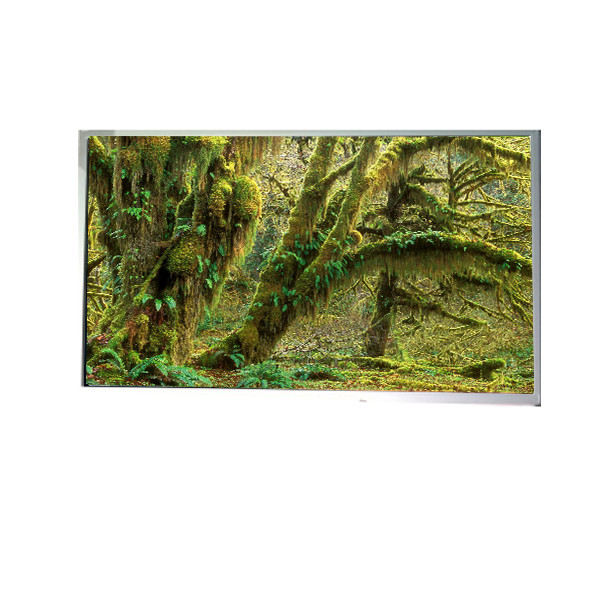

LC260W01-A5K1 LCD Display Panel 1280*768 LCD Screen Module
Product Details:
Place of Origin: | China |
Brand Name: | LG |
Model Number: | LC260W01-A5K1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LC260W01-A5K1 | Diagonal Size: | 26.0" |
---|---|---|---|
Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1280(RGB)×768, WXGA 57PPI |
Pixel Format: | RGB Vertical Stripe | Active Area: | 566.4(W)×339.84(H) Mm |
Support Color: | 16.7M | Lamp Type: | 14 Pcs CCFL , 50K Hours , With Inverter |
Application: | TV Sets | Frequency: | 60Hz |
Product Description
LC260W01-A5K1 LCD Display Panel 1280*768 LCD Screen Module
LC260W01-A5K1 LCD Panel Product details :
Brand | LG |
Model P/N | LC260W01-A5K1 |
Diagonal Size | 26.0" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1280(RGB)×768, WXGA 57PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 566.4(W)×339.84(H) mm |
Bezel Opening | 571.4(W)×344.9(H) mm |
Outline Size | 622(W)×389(H)×45.2(D) mm |
Brightness | 450 cd/m² (Typ.) |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
Best View on | Symmetry |
Display Colors | 16.7M 72%NTSC |
Frequency | 60Hz |
Weight | - |
Surface | Antiglare, Hard coating (3H) |
Contrast Ratio | 500:1 (Typ.) (TM) |
Display Mode | S-IPS, Normally Black, Transmissive |
Response Time | 7.5/8.5 (Typ.)(Tr/Td) |
Lamp Type | 14 pcs CCFL , 50K hours , With Inverter |
Touch Screen | Without |
Application | TV Sets |
Signal Interface | LVDS (1 ch, 8-bit), 20 pinsConnector |
Input Voltage | 12.0V (Typ.) |
Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
LC260W01-A5K1 LCD Display Panel 1280*768 LCD Screen Module |
LC260W01-A5K1 Panel Shipping and Package :
LC260W01-A5K1 LCD Panel FAQ :
Q: Can You declare my order of LC260W01-A5K1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of LC260W01-A5K1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods LC260W01-A5K1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can I pay my order of LC260W01-A5K1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
