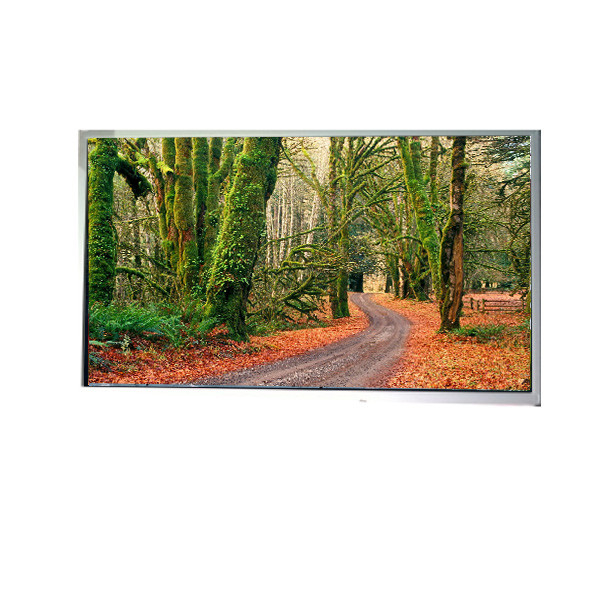

LC220WXE-TBA1 LCD Display Panel 1366*768 LCD Screen Module
Product Details:
Place of Origin: | China |
Brand Name: | LG |
Model Number: | LC220WXE-TBA1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LC220WXE-TBA1 | Diagonal Size: | 21.6" |
---|---|---|---|
Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1366(RGB)×768, WXGA 72PPI |
Pixel Format: | RGB Vertical Stripe | Active Area: | 477.417(W)×268.416(H) Mm |
Display Colors: | 16.7M 73%NTSC | Lamp Type: | 4 Pcs CCFL , 50K Hours , Without Driver |
Application: | TV Sets | Frame Rate: | 60Hz |
Product Description
LC216EXN-SDA1 21.6 Inch Original LCD 1366*768 LCD Screen Display
LC216EXN-SDA1 LCD Panel Product details :
Brand | LG Display |
Model P/N | LC216EXN-SDA1 |
Diagonal Size | 21.6" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1366(RGB)×768, WXGA 72PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 477.417(W)×268.416(H) mm |
Bezel Opening | 481.5(W)×272.5(H) mm |
Outline Size | 501(W)×297(H)×13.7(D) mm |
Surface | Antiglare (Haze 13%), Hard coating (3H) |
Brightness | 300 cd/m² (Typ.) |
Contrast Ratio | 1000:1 (Typ.) (TM) |
Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
Display Mode | IPS, Normally Black, Transmissive |
Best View on | Symmetry |
Response Time | 6 (Typ.)(G to G) |
Display Colors | 16.7M 68%NTSC |
Lamp Type | WLED, 30K hours, With LED Driver |
Frequency | 60Hz |
Touch Screen | Without |
Panel Weight | 1.42/1.50Kgs (Typ./Max.) |
Application | TV Sets |
Signal Interface | LVDS (1 ch, 8-bit), 30 pinsConnector |
Input Voltage | 5.0±0.5V |
Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
LC216EXN-SDA1 21.6 Inch Original LCD 1366*768 LCD Screen Display |
LC216EXN-SDA1 LCD Panel Shipping and Package :
LC216EXN-SDA1 LCD Panel FAQ :
Q: Can You declare my order of LC216EXN-SDA1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: If I place order now,when will you ship the goods of LC216EXN-SDA1 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of LC216EXN-SDA1 via credit card ?
A:Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
