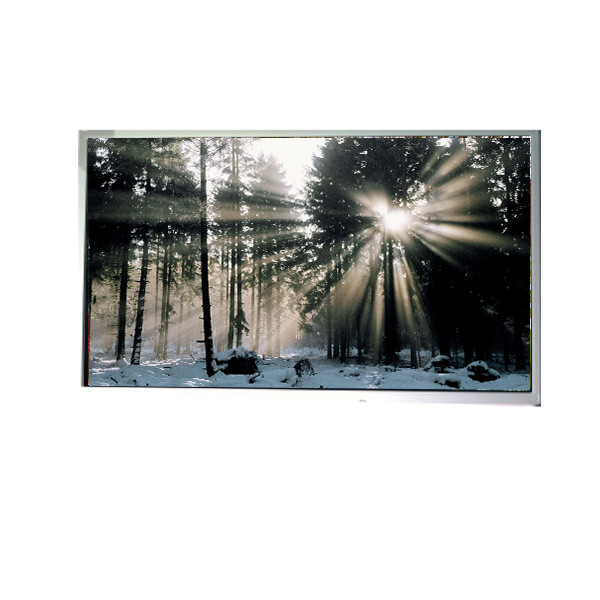

21.6 inch LCD Screen Module LC216EXN-SCA1 Lcd Display Panel
Product Details:
Place of Origin: | China |
Brand Name: | LG |
Model Number: | LC216EXN-SCA1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LC216EXN-SCA1 | Diagonal Size: | 21.6" |
---|---|---|---|
Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1366(RGB)×768, WXGA 72PPI |
Pixel Format: | RGB Vertical Stripe | Active Area: | 477.417(W)×268.416(H) Mm |
Display Colors: | 16.7M 68%NTSC | Lamp Type: | WLED, 30K Hours, With LED Driver |
Application: | TV Sets | Frame Rate: | 60Hz |
Product Description
21.6 inch LCD Screen Module LC216EXN-SCA1 Lcd Display Panel
LC216EXN-SCA1 LCD Panel Product details :
Brand | LG Display |
Model P/N | LC216EXN-SCA1 |
Diagonal Size | 21.6" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1366(RGB)×768, WXGA 72PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 477.417(W)×268.416(H) mm |
Bezel Opening | 481.5(W)×272.5(H) mm |
Outline Size | 501(W)×297(H)×14.5(D) mm |
Treatment | Antiglare (Haze 13%), Hard coating (3H) |
Luminance | 300 cd/m² (Typ.) |
Contrast Ratio | 1000 : 1 (Typ.) (TM) |
Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
Response | 6 (Typ.)(G to G) ms |
Good View at | Symmetry |
Work Mode | IPS, Normally Black, Transmissive |
Color Depth | 16.7M 68%NTSC |
Backlight | WLED, 30K hours, With LED Driver |
Mass | 1.75/1.85Kgs (Typ./Max.) |
Used for | TV Sets |
Refresh Rate | 60Hz |
Touchscreen | Without |
Signal Type | LVDS (1 ch, 8-bit), 30 pinsConnector |
Voltage Supply | 5.0V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
21.6 inch LCD Screen Module LC216EXN-SCA1 Lcd Display Panel |
LC216EXN-SCA1 LCD Panel Shipping and Package :
LC216EXN-SCA1 LCD Panel FAQ :
Q: Can You declare my order of LC216EXN-SCA1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of LC216EXN-SCA1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of LC216EXN-SCA1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Do you accept sample orders of LC216EXN-SCA1 ?
A: Of course!sample order is welcome !
