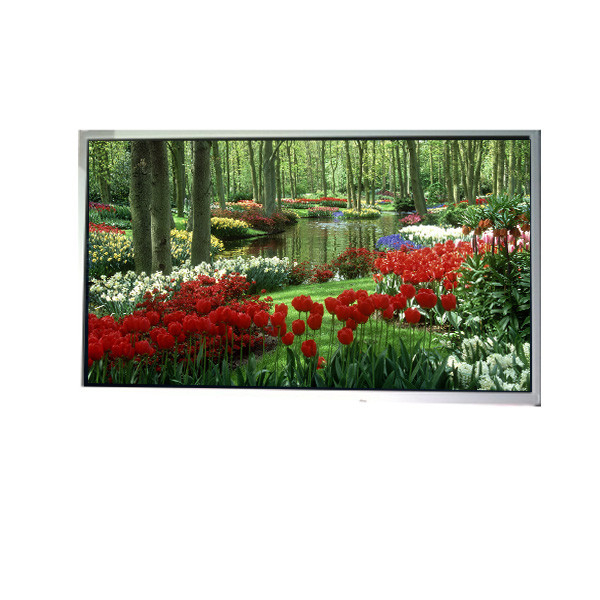

21.5 inch LC215WUE-TBA1 LCD display panel 1920*1080 30 Pins
Product Details:
Place of Origin: | China |
Brand Name: | LG |
Model Number: | LC215WUE-TBA1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LC215WUE-TBA1 | Diagonal Size: | 21.5" |
---|---|---|---|
Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 102PPI |
Pixel Format: | RGB Vertical Stripe | Active Area: | 476.64(W)×268.11(H) Mm |
Display Colors: | 16.7M 72%NTSC | Lamp Type: | 4 Pcs CCFL , 50K Hours , Without Driver |
Application: | TV Sets | Frequency: | 60Hz |
Product Description
21.5 inch LC215WUE-TBA1 LCD display panel 1920*1080 30 Pins
LC215WUE-TBA1 LCD Panel Product details :
Brand | LG Display |
Model P/N | LC215WUE-TBA1 |
Diagonal Size | 21.5" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1920(RGB)×1080, FHD 102PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 476.64(W)×268.11(H) mm |
Bezel Opening | 479.8(W)×271.3(H) mm |
Outline Size | 495.6(W)×292.2(H)×17(D) mm |
Brightness | 400 cd/m² (Typ.) |
Viewing Angle | 85/85/70/85 (Typ.)(CR≥10) |
Best View on | - |
Display Colors | 16.7M 72%NTSC |
Frequency | 60Hz |
Weight | 2.10Kgs (Typ.) |
Surface | Antiglare, Hard coating (3H) |
Contrast Ratio | 1000:1 (Typ.) (TM) |
Display Mode | TN, Normally White, Transmissive |
Response Time | 1.3/3.7 (Typ.)(Tr/Td) |
Lamp Type | 4 pcs CCFL , 50K hours , Without Driver |
Touch Screen | Without |
Application | TV Sets |
Signal Interface | LVDS (2 ch, 8-bit), 30 pinsConnector |
Input Voltage | 5.0V (Typ.) |
Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
21.5 inch LC215WUE-TBA1 LCD display panel 1920*1080 30 Pins |
LC215WUE-TBA1 LCD Panel Shipping and Package :
LC215WUE-TBA1 LCD Panel FAQ :
Q: Can You declare my order of LC215WUE-TBA1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of LC215WUE-TBA1 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long will I receive my goods LC215WUE-TBA1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of LC215WUE-TBA1 ?
A: We accept T/T , Paypal , western union .
