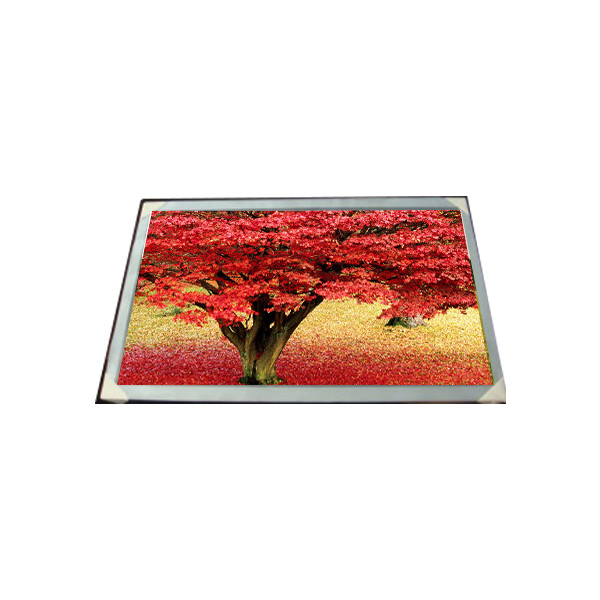

20.1 inch LC201V02-SDA1 LCD display 640*480 41 Pins LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LC201V02-SDA1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LC201V02-SDA1 | Diagonal Size: | 20.1" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 640(RGB)×480, VGA 39PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 408(W)×306(H) Mm |
| Color Depth: | 16.7M 72%NTSC | Backlight: | 6 PcsCCFL, 50K Hours, No Driver |
| Used For: | TV Sets | Refresh Rate: | 60Hz |
Product Description
20.1 inch LC201V02-SDA1 LCD display 640*480 41 Pins LCD Screen
LC201V02-SDA1 Panel Product details :
| Brand | LG |
| Model P/N | LC201V02-SDA1 |
| Diagonal Size | 20.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 640(RGB)×480, VGA 39PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 408(W)×306(H) mm |
| Bezel Opening | 413.0(W)×311.0(H) mm |
| Outline Size | 432(W)×331.5(H)×25.5(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 12/13 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Color Depth | 16.7M 72%NTSC |
| Backlight | 6 pcsCCFL, 50K hours, No Driver |
| Mass | 3.50Kgs (Typ.) |
| Used for | TV Sets |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | CMOS (1 ch, 8-bit), 41 pinsConnector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| 20.1 inch LC201V02-SDA1 LCD display 640*480 41 Pins LCD Screen | |
LC201V02-SDA1Screen Payment:
PayPal Payment:
Our primary method of payment is PayPal due to its buyer protection and reputation for safety in online transactions.
Please ensure you have a PayPal account ready for payment.
Confirm Shipping Address:
Before making the payment, kindly double-check that your shipping address is accurate.
We will only ship the item to the address provided during checkout, so it's crucial to verify its correctness.
Shipping Address Verification:
Please review your shipping address carefully before finalizing your purchase to avoid any shipping delays or errors.
Other Payment Methods:
If PayPal is not suitable for you, we also support alternative payment methods. Please let us know your preferred method, and we will provide instructions accordingly.
Once you've confirmed your shipping address and selected your preferred payment method, proceed with the payment, and we'll ensure prompt processing and shipment of your order. If you have any further questions or need assistance, feel free to reach out.
LC201V02-SDA1 Panel Shipping and Package :
Shipping Policy for LC201V02-SDA1 Screen:
Comprehensive Shipping Coverage: Our shipping rates encompass the entirety of the shipping process, inclusive of handling, packaging, and associated labor costs. We strive to provide a transparent and all-encompassing service to our valued customers.
Address Responsibility: It is imperative for customers to provide accurate delivery addresses. We cannot be held liable for undeliverable addresses. In instances where items are returned due to incorrect address details supplied by the buyer, we reserve the right to levy shipping fees for resending the package. Please note that any non-received items attributed to invalid addresses registered on PayPal are not covered by our full refund or replacement policy.
Local Pickup Option: For added convenience, we offer a local pickup option. Customers located nearby have the opportunity to collect their orders directly, providing a hassle-free solution for obtaining their desired products.
LC201V02-SDA1 Panel FAQ :
Q: How long is the warranty of LC201V02-SDA1 ?
A: 90 days warranty .
Q: How can I trace my order of Samsung LC201V02-SDA1 ?
A: we will give you tracking number then you can trace your order form website.
Q: How to make payment for LC201V02-SDA1 ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of lcd panel LC201V02-SDA1 at a very low value ?
A: Yes , we can . pls inform us before shipping .
LC201V02-SDA1LCD Screen Contact Us:
Delivery Time frame:
If you haven't received your goods within 45 days (excluding Christmas and New Year's Day), please don't hesitate to contact us.
Resolution Options:
In case of any delivery issues, such as non-receipt of goods, we will either resend the items or provide a full refund without any excuses.
We prioritize ensuring a positive buying experience for our customers, even when delivery circumstances are beyond our control.
Customer Support:
Your satisfaction is our priority, and we are committed to providing the best possible service.
If you have any questions or concerns, please reach out to us immediately, and we will assist you promptly.
Appreciation:
We genuinely value your support and appreciate your business.
We wish you a pleasant shopping experience and look forward to serving you again in the future.
If you encounter any issues with your order or have any queries, please feel free to contact us, and we will be more than happy to assist you. Thank you for choosing us, and happy shopping!
