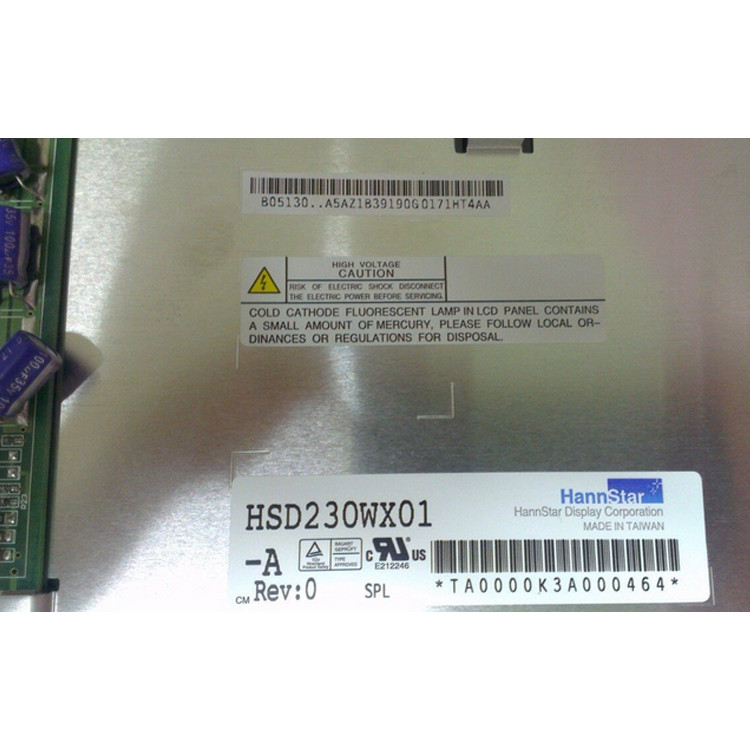

23.0 Inch 1280*768 TFT LCD Screen Display Module Panel HSD230WX01-A LCD Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD230WX01-A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD230WX01-A | Diagonal Size: | 23.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×768, WXGA 65PPI | Active Area: | 499.2(W)×299.52(H) Mm |
| Bezel Opening: | 504.0(W)×304.0(H) Mm | Outline(mm): | 540(W)×340(H)×30.8(D) |
| Treatment: | Hard Coating (3H), Antireflection | Work Mode: | IPS Pro, Normally Black, Transmissive |
| Mass: | 2.50±0.10Kgs | Used For: | TV Sets |
| High Light: | 23.0 inch TFT LCD Screen,HSD230WX01-A LCD Monitor,HSD230WX01-A |
||
Product Description
23.0 inch 1280*768 TFT LCD Screen Display Module Panel HSD230WX01-A LCD Monitor
HSD230WX01-A LCD Panel Product details :
| HannStar LCD Screen HSD230WX01-A | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD230WX01-A |
| Diagonal Size | 23.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×768, WXGA 65PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 499.2(W)×299.52(H) mm |
| Bezel Opening | 504.0(W)×304.0(H) mm |
| Outline(mm) | 540(W)×340(H)×30.8(D) |
| Treatment | Hard coating (3H), Antireflection |
| Luminance | 500 (Typ.)(cd/m²) |
| Contrast Ratio | 400 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Work Mode | IPS Pro, Normally Black, Transmissive |
| Good View at | Symmetry |
| Response | 12/13 (Typ.)(Tr/Td) ms |
| Color Depth | 16.2M 72% NTSC |
| Backlight | 12 pcs CCFL , 50K hours , No Driver |
| Mass | 2.50±0.10Kgs |
| Used for | TV Sets |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit) , 20 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| 23.0 inch 1280*768 TFT LCD Screen Display Module Panel HSD230WX01-A Lcd Monitor | |
