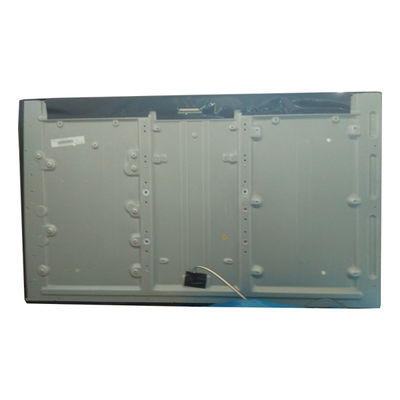

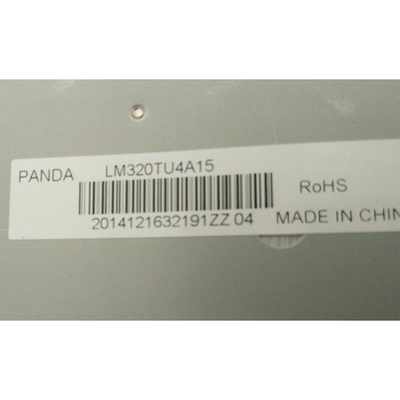

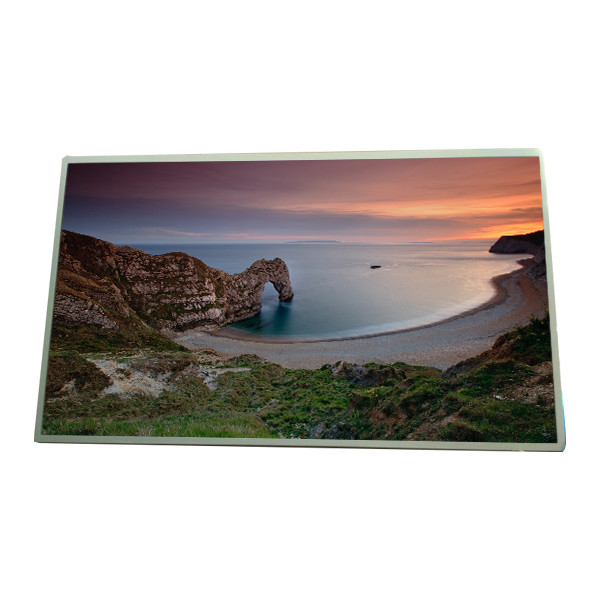

PANDA 32 INCH LM320TU4A 1366*768 49PPI 30 pins LCD SCREEN
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | PANDA |
| Model Number: | LM320TU4A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | LM320TU4A | Panel Size: | 32.0 Inch |
|---|---|---|---|
| Resolution: | 1366(RGB)×768 [WXGA] 49PPI | Display Area: | 697.685(H)×392.256(V) Mm |
| Outline Size: | 725.2(H)×421.9(V)mm | Viewing Angle: | 88/88/88/88 (Typ.)(CR≥10) |
| Display Colors: | 16.7M 72% NTSC | Application: | TV Sets |
Product Description
PANDA 32 INCH LM320TU4A 1366*768 49PPI 30 pins LCD SCREEN
LM320TU4A Product details :
| PANDA LCD Screen LM320TU4A | |
| Brand | PANDA |
| Model | LM320TU4A |
| Diagonal Size | 32.0 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 1366(RGB)×768 [WXGA] 49PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 697.685(H)×392.256(V) mm |
| Outline Dim. | 725.2(H)×421.9(V)mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 5000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 7(Typ.)(G to G) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Operating Mode | UV2A, Normally Black, Transmissive |
| Support Color | 16.7M 72% NTSC |
| Light Source | WLED [9S4P] , 30K hours , W/O Driver |
| Designed For | TV Sets |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Power Supply | 12.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| PANDA 32 INCH LM320TU4A 1366*768 49PPI 30 pins LCD SCREEN | |
LM320TU4A Product Description:
1: Products: We have all the spare parts and accessories for all the models of mobile phones,laptops, and tablet PC
2 : Price can be negotiable based on quantity; delivery terms;
3 : Samples: We can offer samples ,but we kindly ask you pay for samples and the freight.
4: Quality guarantee: We will inspect the appearance and test functions of all of our items before shipping, so it is very important for our customers to let professional operators test and install them.
5: Package: All the items will be packed very well to avoid damage.
6: After-service: We provide best after-service, any problem will be solved successfully and smoothly, 100% satisfaction guaranteed.
LM320TU4A Shipment:
When you place an order,please choose a shipping method and pay for the order including the shipping fee,We will send the items within X days once your payment is completed.
We do mot guarantee delivery time on all international shipments due to differences in customs clearing times in individual countries,which may affect how quickly your product is inspected.Please note that buyers are responsible for all additional customs fees,brokerage fees,duties,and taxes for refused shipments.
The shipping cost does not include any import taxes,and buyers are responsible for customs duties.
LM320TU4A Returns:
We do our best to serve our customers the best that we can.
We will refund you if you return the items within 15 days of your receipt of the items for any reason,However,the buyer should make sure that the items returned are in their original conditions. if the items are damaged or lost when they are returned,the buyer will be responsible for such damage or loss,and we will not give the buyer a full refund. The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
The buyer will be responsible for the shipping fees to return the items.
LM320TU4A Warranty :
1, We take 12 months warranty from the shipping date , no matter what quality problem it's .
2, Pls keep in touch with us , if you have any problems pls contact us immediately , we will help you to solve the problem ASAP. .
LM320TU4A FAQ:
What payment methods you support ?
We accept the Trade Assurance Order on alibaba , or T/T , PAYPAL and WESTERN UNION .
What express service can I choose ?
A:We cooperate with many express companies , for example , FEDEX , DHL , TNT , EMS and China Post Air Mail.
Could you test my order before shipping ?
Yeah , Don't worry , All the order will be tested ok before shippment
LM320TU4A Shipping and Package :
