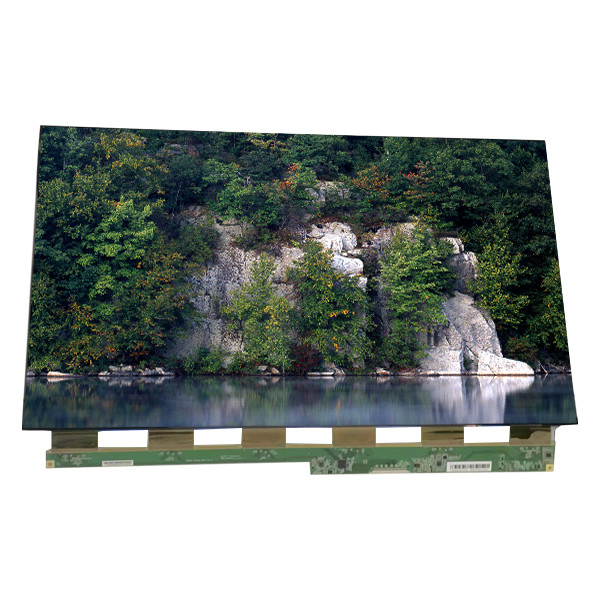

CC240LV1D 23.8 Inch LCD Display Panel Symmetry LVDS 30 Pins Connector
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | PANDA |
| Model Number: | CC240LV1D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | CC240LV1D | Diagonal Size: | 23.8 Inch |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×1080 [FHD] 92PPI | Active Area: | 527.04(H)×296.46(V) Mm |
| Outline Dim.: | 534.04(H)×307.76(V)×1.37(D) Mm | Contrast Ratio: | 5000:1 (Typ.) (TM) |
| Plate Thickness: | 0.50+0.50 Mm | Transmittance: | 4.3% (Typ.)(with Polarizer) |
| Weight: | 510g (Typ.) | Designed For: | TV Sets |
| Highlight: | 23.8 Inch LCD Display Panel,CC240LV1D LCD Display Panel,Symmetry LCD Display Panel |
||
Product Description
New Original CC240LV1D 23.8 Inch LCD Display Panel LCD TV
CC240LV1D Product details :
| PANDA LCD Screen CC240LV1D | |
| Manufacturer | PANDA |
| Panel Model | CC240LV1D |
| Panel Size | 23.8" |
| Panel Type | Oxide TFT-LCD, CELL |
| Resolution | 1920(RGB)×1080, FHD, 92PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 527.04(W)×296.46(H) mm |
| Outline Size | 534.04(W)×307.76(H)×1.37(D) mm |
| Surface | Antiglare, Hard coating (2H) |
| Brightness | 0 cd/m² |
| Contrast Ratio | 5000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | UV2A, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 8 (Typ.)(G to G) |
| Glass Depth | 0.50+0.50 mm |
| Transmissivity | 4.3% (Typ.)(with Polarizer) |
| Display Colors | 16.7M 74% NTSC |
| Lamp Type | No B/L |
| Frequency | 60Hz |
| Touch Screen | Without |
| Driver IC | COFBuilt-in 6 source chips |
| Panel Weight | 510g (Typ.) |
| Application | TV Sets |
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| New Original CC240LV1D 23.8 Inch LCD Display Panel LCD TV | |
CC240LV1D Important:
Specific TV models can come in many sizes and resolutions. TV LCD resolution should not beupgraded or downgraded. You must confirm that this screen matches your TV in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility.
CC240LV1D Payment and Tax:
1.Alipay is perferred and safety
2.Product being shipped outside of China will incur import duties taxes and charges etc.Those fees are not covered by either price or shipping charges of product,and are responsibility of recipient.
CC240LV1D Shipping and Package :
CC240LV1D About shipment:
We ship our products all over the world and the delivery time is 3-5 working days after payment confirmation. You can also choose an operator and will inform you of the additional charges in remote areas as soon as possible.
All prices excluding import and export tax shall be paid by the buyer.
(we will cooperate with you to provide the required declaration information)
CC240LV1D Return:
Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.
Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.
CC240LV1D FAQ:
Q: How long will I receive my goods CC240LV1D ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of CC240LV1D?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of CC240LV1D to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of CC240LV1D via credit card ?
A: Yes!you can use your credit card through your Paypal account.
