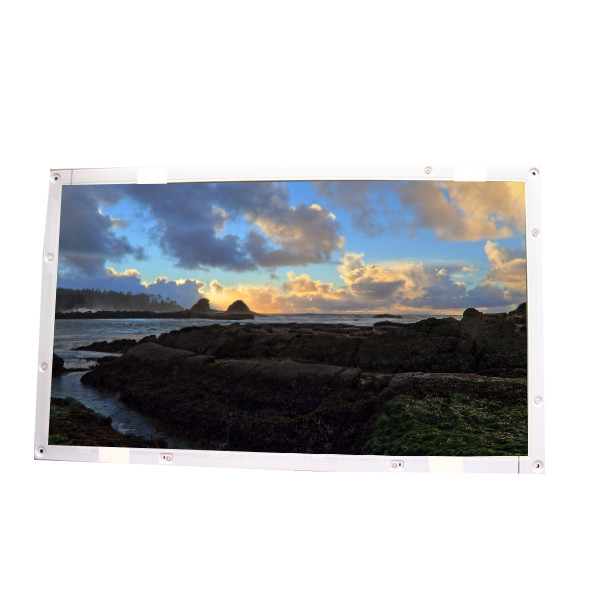

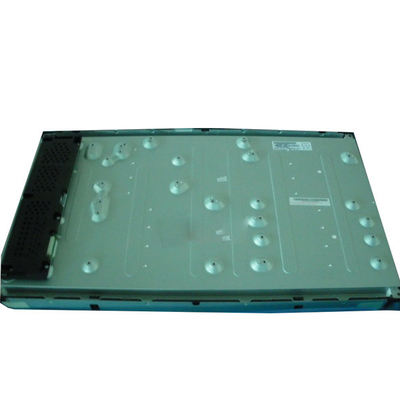

T260XW04 V2 30 Pins 26 Inch LCD Screen 1366*768 for AUO
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | T260XW04 V2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | T260XW04 V2 | Diagonal Size: | 26.0 Inch |
|---|---|---|---|
| Pixel Format: | 1366(RGB)×768, WXGA, 60PPI | Active Area: | 575.769(W)×323.712(H) Mm |
| Outline Dim.: | 626(W)×373(H) Mm | Bezel Area: | 580.8(W)×328.8(H) Mm |
| Display Colors: | 16.7M 72% NTSC | Designed For: | TV Sets |
Product Description
T260XW04 V2 30 Pins 26 Inch LCD Screen 1366*768 for AUO
T260XW04 V2 Product details :
| AUO LCD SCREEN T260XW04 V2 | |
| Panel Brand | AUO |
| Panel Model | T260XW04 V2 |
| Panel Size | 26.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768, WXGA, 60PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 575.769(W)×323.712(H) mm |
| Bezel Opening | 580.8(W)×328.8(H) mm |
| Outline Size | 626(W)×373(H) mm |
| Surface | Antiglare (Haze 13%), Hard coating (3H) |
| Brightness | 450 cd/m² (Typ.) |
| Contrast Ratio | 3000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | AMVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 6.5 (Typ.)(G to G) |
| Display Colors | 16.7M 72% NTSC |
| Lamp Type | CCFL [4 pcs] , 50K hours , With Inverter |
| Designed Fo | TV Sets |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 3.50Kgs (Typ.) |
| Signal Interface | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| T260XW04 V2 30 Pins 26 Inch LCD Screen 1366*768 for AUO | |
T260XW04 V2 Friendly Reminder :
We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.
If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.
T260XW04 V2 Return& Refund:
Please read the item description and check the pictures carefully before bidding.
Refund or Return is available if the item arrived broken,not as described or does not do what it's supposed to.
Return items must have all original packaging and in good condition.
T260XW04 V2 Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
T260XW04 V2 About Shipping:
We will test them strictly before shipping.
We will ship it in 3 working days after your paying.Buyer is responsible for customs duty fee.
It usually takes 10-45 business days for international shipping.If you don't receive the parcel for a long time,pls contact with us.
T260XW04 V2 FAQ:
Q: What happen if the lcd panel T260XW04 V2 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: When will my order T260XW04 V2 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q: How to order if I don't know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
T260XW04 V2 Shippment & Packing
