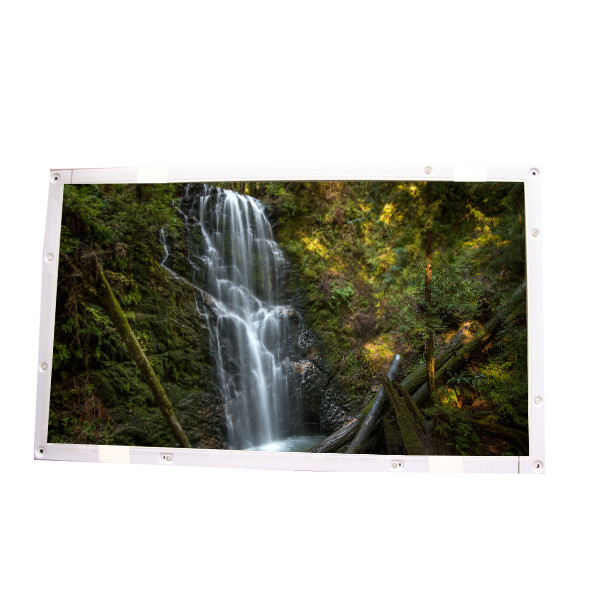

T260XW04 V1 30 Pins 26 Inch LCD Screen 1366*768 for AUO
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | T260XW04 V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | T260XW04 V1 | Diagonal Size: | 26.0 Inch |
|---|---|---|---|
| Pixel Format: | 1366(RGB)×768, WXGA, 60PPI | Active Area: | 575.769(W)×323.712(H) Mm |
| Outline Dim.: | 626(W)×373(H) Mm | Bezel Area: | 580.8(W)×328.8(H) Mm |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Designed For: | TV Sets |
Product Description
T260XW04 V1 30 Pins 26 Inch LCD Screen 1366*768 for AUO
T260XW04 V1 Product details :
| AUO LCD SCREEN T260XW04 V1 | |
| Panel Brand | AUO |
| Panel Model | T260XW04 V1 |
| Panel Size | 26.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768, WXGA, 60PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 575.769(W)×323.712(H) mm |
| Bezel Opening | 580.8(W)×328.8(H) mm |
| Outline Size | 626(W)×373(H) mm |
| Surface | Antiglare (Haze 13%), Hard coating (3H) |
| Brightness | 420 cd/m² (Typ.) |
| Contrast Ratio | 3000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | AMVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 6.5 (Typ.)(G to G) |
| Display Colors | 16.7M 72% NTSC |
| Lamp Type | 3 pcs CCFL , 50K hours , Without Driver |
| Frequency | 60Hz |
| Designed Fo | TV Sets |
| Touch Screen | Without |
| Panel Weight | 3.50Kgs (Typ.) |
| Signal Interface | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| T260XW04 V1 30 Pins 26 Inch LCD Screen 1366*768 for AUO | |
T260XW04 V1 Friendly Reminder :
We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.
If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.
T260XW04 V1 Return& Refund:
Please read the item description and check the pictures carefully before bidding.
Refund or Return is available if the item arrived broken,not as described or does not do what it's supposed to.
Return items must have all original packaging and in good condition.
T260XW04 V1 Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
T260XW04 V1 Guarantee:
1. All items will be strictly tested before shipping.
2. Warranty iS 90 days.
T260XW04 V1 FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can I pay my order of T260XW04 V1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: If I place order now,when will you ship the goods of T260XW04 V1 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long will I receive my goods T260XW04 V1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
