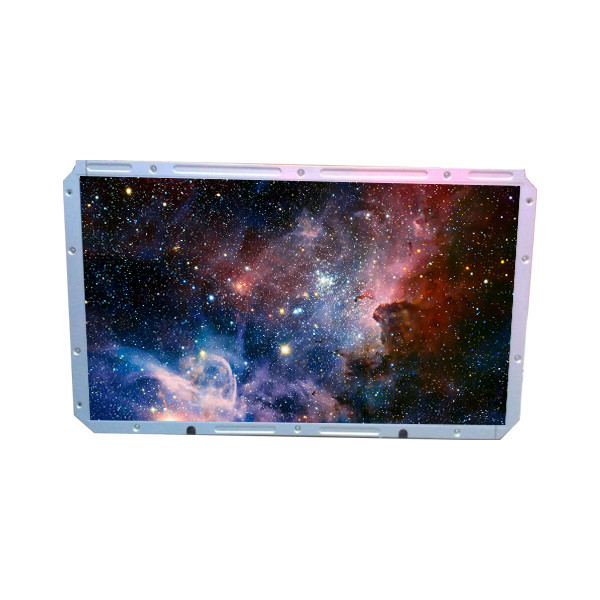

T260XW03 V0 30 Pins 26 Inch LCD Screen 1366*768 for AUOb
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | T260XW03 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | T260XW03 V0 | Diagonal Size: | 26.0 Inch |
|---|---|---|---|
| Pixel Format: | 1366(RGB)×768, WXGA, 60PPI | Active Area: | 575.769(W)×323.712(H) Mm |
| Outline Dim.: | 626(W)×373(H) ×44.6(D) Mm | Bezel Area: | 580.8(W)×328.8(H) Mm |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) | Designed For: | TV Sets |
Product Description
T260XW03 V0 30 Pins 26 Inch LCD Screen 1366*768 for AUO
T260XW03 V0 Product details :
| AUO LCD SCREEN T260XW03 V0 | |
| Panel Brand | AUO |
| Panel Model | T260XW03 V0 |
| Panel Size | 26.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768, WXGA, 60PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 575.769(W)×323.712(H) mm |
| Bezel Opening | 580.8(W)×328.8(H) mm |
| Outline Size | 626(W)×373(H) mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 6/2 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 71% NTSC |
| Lamp Type | CCFL , 60K hours , With Inverter |
| Frequency | 60Hz |
| Designed For | TV Sets |
| Touch Screen | Without |
| Panel Weight | 4.50Kgs (Typ.) |
| Signal Interface | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| T260XW03 V0 30 Pins 26 Inch LCD Screen 1366*768 for AUO | |
T260XW03 V0 Our company:
Because of we have stock many kinds of electronic components, so can not upload one by one, if you can't find what you need in our store, please contact us, we will offer in the first time. Thank you in advance.
T260XW03 V0 Pyment:
1. We accept Escrow, Alipay, Paypal, T/T(Bank Transfer), Credit Card, Western Union, Moneygram, etc....
2. If you have any problems of payment, please contact us.
T260XW03 V0 Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
T260XW03 V0 Guarantee:
1. All items will be strictly tested before shipping.
2. Warranty iS 90 days.
T260XW03 V0 Returns:
We do our best to serve our customers the best that we can.We will refund you if you return the items within 15 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are in their original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund.The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
T260XW03 V0 FAQ:
Q: How to order AUO lcd panel T260XW03 V0 ?
A: We accept the T/T , Western union , paypal .
Q: How long the warranty of T260XW03 V0 ?
A: 90days.
Q: What happen if the T260XW03 V0 I received can't work ?
A: Our AUO T260XW03 V0 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: can you declared low price of my 26.0 inch TFT-LCD T260XW03 V0 when shipping?
A: Yes , please inform us the value you want .
