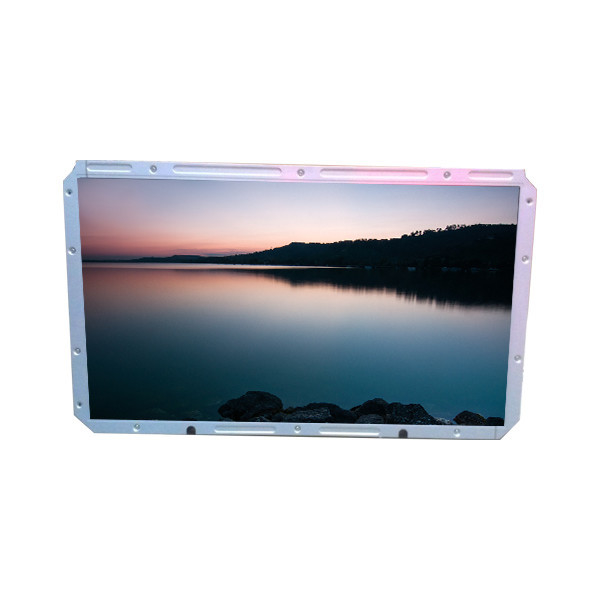

T260XW02 VT 30 Pins 26 Inch LCD Screen 1366*768 for AUO
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | T260XW02 VT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | T260XW02 VT | Screen Size: | 26.0 Inch |
|---|---|---|---|
| Pixel Number: | 1366(RGB)×768, WXGA, 60PPI | Active Area(mm): | 575.769(W)×323.712(H) Mm |
| Bezel Opening: | 580.8(W)×328.8(H) Mm | Display Colors: | 16.7M 72% NTSC |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Used For: | TV Sets |
Product Description
T260XW02 VT 30 Pins 26 Inch LCD Screen 1366*768 for AUO
T260XW02 VT Product details :
| AUO LCD SCREEN T260XW02 VT | |
| Panel Brand | AUO |
| Panel Model | T260XW02 VT |
| Panel Size | 26.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768, WXGA, 60PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 575.769(W)×323.712(H) mm |
| Bezel Opening | 580.8(W)×328.8(H) mm |
| Outline Size | 626(W)×373(H) ×44.5(D) mm |
| Surface | Antiglare (Haze 11%), Hard coating (3H) |
| Best View on | Symmetry |
| Brightness | 450 cd/m² (Typ.) |
| Contrast Ratio | 3000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | AMVA, Normally Black, Transmissive |
| Response Time | 6.5 (Typ.)(G to G) |
| Display Colors | 16.7M 72% NTSC |
| Lamp Type | CCFL , 60K hours , With Inverter |
| Designed For | TV Sets |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 3.75Kgs (Typ.) |
| Signal Interface | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| T260XW02 VT 30 Pins 26 Inch LCD Screen 1366*768 for AUO | |
T260XW02 VT NOTE:
1.Before you place your order, if you are not sure which screen model you need, please be sure to contact customer service and we will get back to you promptly.
2.We may ship a compatible screen model according to the inventory. If you need to specify the model, please leave a message or contact customer service.
•3-->The LCD model name in your hand, such as: LM140LF1L02
•4-->Your notebook computer name, such as: brand,specific model
•5-->Send the above information to us, we will reply you with fast and correct transaction within 24 hours, thank you!
T260XW02 VT Payment:
1.- Please make sure your payment account is available before you bid the item.
2.- All payments should be cleared within 7days after you receive the item. If you really have difficulty in paying the item,
please contact us firstly, we will help to solve it.
3.- If you have any special request about the details of item, please leave a note in your order.
T260XW02 VT Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
T260XW02 VT Note:
1: This product is a display screen, which needs to be installed by professionals. Please purchase with caution, thank you!
2: Purchasing this product, according to the buyer's choice of logistics, we will send it out within 48 hours, if there is a delay, please wait for the tracking information to prevail!
3: After receiving the product, if there is a problem, please contact customer service to solve it!
T260XW02 VT FAQ:
Q: How do you ship my goods T260XW02 VT ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of AUO T260XW02 VT ?
A: 90 days warranty .
Q: How can I trace my order of T260XW02 VT ?
A: we will give you tracking number then you can trace your order form website.
Q: Can you give me a discount if I need a large quantity of T260XW02 VT ?
A: Of course!If you make a large order, we will give you a discount.
T260XW02 VT Shippment & Packing
