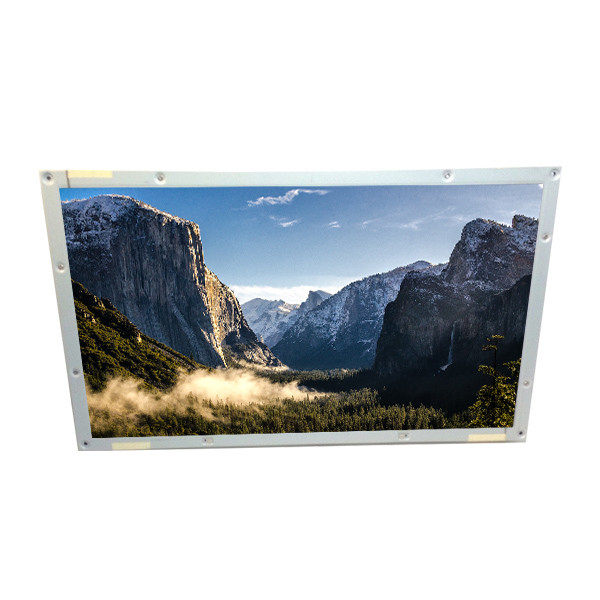

T260XW02 V5 30 Pins 26 Inch LCD Screen 1366*768
Product Details:
Place of Origin: | China |
Brand Name: | AUO |
Model Number: | T260XW02 V5 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model: | T260XW02 V5 | Diagonal Size: | 26.0 Inch |
---|---|---|---|
Resolution: | 1366(RGB)×768, WXGA, 60PPI | Display Area: | 575.769(W)×323.712(H) Mm |
Contrast Ratio: | 800:1 (Typ.) (TM) | Viewing Angle: | 88/88/88/88 (Typ.)(CR≥10) |
Display Colors: | 16.7M 72% NTSC | Designed For: | TV Sets |
Product Description
T260XW02 V5 30 Pins 26 Inch LCD Screen 1366*768
T260XW02 V5 Product details :
AUO LCD SCREEN T260XW02 V5 | |
Panel Brand | AUO |
Panel Model | T260XW02 V5 |
Panel Size | 26.0" |
Panel Type | a-Si TFT-LCD , LCM |
Resolution | 1366(RGB)×768, WXGA, 60PPI |
Pixel Format | RGB Vertical Stripe |
Display Area | 575.769(W)×323.712(H) mm |
Bezel Opening | 580.0(W)×328.8(H) mm |
Outline Size | 626(W)×373(H) mm |
Surface | Antiglare, Hard coating (3H) |
Brightness | 500 cd/m² (Typ.) |
Contrast Ratio | 800:1 (Typ.) (TM) |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
Display Mode | VA, Normally Black, Transmissive |
Response Time | 15/5 (Typ.)(Tr/Td) |
Display Colors | 16.7M 72% NTSC |
Lamp Type | 8 pcs CCFL , 60K hours , With Inverter |
Frequency | 60Hz |
Used for | TV Sets |
Touch Screen | Without |
Panel Weight | 4.20Kgs (Typ.) |
Signal Interface | LVDS (1 ch, 8-bit) , 30 pins Connector |
Input Voltage | 5.0V (Typ.) |
Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
T260XW02 V5 30 Pins 26 Inch LCD Screen 1366*768 |
T260XW02 V5 Why directly choose us:
1.All the goods for sale are in stock, we can ship to you within 1-3 working days.
2.Welcome to send us your RFQ or BOM list, we will give you our best price !
3.If our price is higher than your ideal price, please contact us, we can apply for a discount for you and look forward to cooperating with you!
4.If you want to know more about the goods datasheet, please contact us and we will provide it to you ASAP !
T260XW02 V5 Payment Information:
T/T (Wire Transfer) / PayPal / western Union / MoneyGram
T260XW02 V5 GUARANTEE AND RETURN:
1. We offer guarantee for all our products.
2. Buyers will bear the shipping cost of returning defective or non-defective items.
3. Returned items must be in good condition like the one we send, not damaged.
4. Returned items are subject to approval by us, must be in the original box as shipped.
5. Damaged items received must be reported within 2 days.
6. All non-seller error returns, there are 15% restocking fees and shipping and handling charges are non-refundable. (For example, you have purchased wrong item)
T260XW02 V5 FAQ:
Q: How long is the warranty of T260XW02 V5 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of T260XW02 V5 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders for T260XW02 V5 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of T260XW02 V5 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
T260XW02 V5 Shippment & Packing
