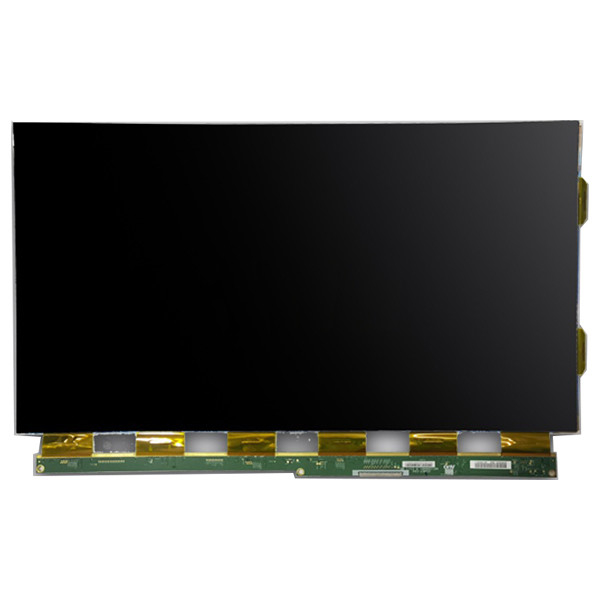

AUO 21.5 inch 1920(RGB)×1080 T215HVN01.1 CELL LCD Monitors Screen Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | T215HVN01.1 CELL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 600 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | T215HVN01.1 CELL | Screen Size: | 21.5 Inch |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080 [FHD] 102PPI | Active Area: | 476.64(H)×268.11(V) Mm |
| Outline Dim.: | 487.6(H)×279.41(V) ×1.4(D) Mm | Treatment: | Antiglare, Hard Coating (3H) |
| Weight: | 402g (Typ.) | Designed For: | TV Sets |
Product Description
AUO 21.5 inch 1920(RGB)×1080 T215HVN01.1 CELL LCD Monitors Screen Display
Product details :
| AUO LCD SCREEN T215HVN01.1 CELL | |
| Manufacturer | AUO |
| Model Name | T215HVN01.1 CELL |
| Screen Size | 21.5 inch |
| Screen Type | CELL , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 102PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 476.64 × 268.11 (H×V) |
| Outline(mm) | 487.6 × 279.41 × 1.4 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 0 cd/m² (Typ.) |
| Contrast Ratio | 3000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/85/85 (Typ.)(CR≥10) |
| Response | 13/5 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | VA, Normally Black, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Glass Thickness | 0.50+0.50 mm |
| Transmissivity | 3.04% (Typ.)(with Polarizer) |
| Backlight | No B/L |
| Mass | 402g (Typ.) |
| Used for | Desktop Monitor / TV Sets |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Driver IC list | Built-in COF 6 source + 2 gate chips |
| Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
Friendly Reminder :
- Installation guide is not included,We are not responsible for any damage caused by the installation of this accessory, make sure you understand how to install before ordering.
- Special skills and techniques required for proper installation. We recommend you process your repairment with an assistance of a qualified technician.
- Please make sure you understand disassembly procedure before purchase.It is strongly recommended that customers test the product before installation.
Shipping and Package :
Shippment:
Usually we will prepare and ship your goods within 1 working day.
Pls check if your item is in good condition upon receipt of it.
Delivery time:
----Via Express: Generally 7-10 working days.
----Via Air Mail: Generally 30-50working days.
Reminder :
Our price is not including any customs tax / fee in the destination . You need to pay some tax / fee or not , when the goods get Clearance Customs in the destination Customs , It depends the laws in the destination country .
There are many other high quality products in our store, we sincerely invite you add our store to your store list.
If you have any needs, pls don't hesitate to contact us, we will try our best to help you, hope you can have a happy shopping with us. Best regards!
FAQ :
Q: How can I trace my order of T215HVN01.1 CELL ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of T215HVN01.1 CELL ?
A: Of course!If you make a large order, we will give you a discount.
Q: How to make payment of T215HVN01.1 CELL ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90days warranty .
