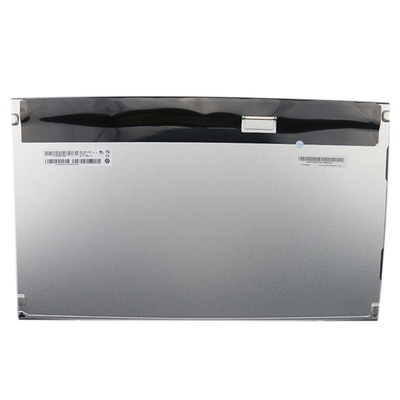

21.5 inch T215HVN01.0 1920×1080 Lcd Screen Display Touch Digitizer Spare Parts Assembly Replacement
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | T215HVN01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 600 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | T215HVN01.0 | Screen Size: | 21.5 Inch |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080 [FHD] 102PPI | Active Area: | 476.64(H)×268.11(V) Mm |
| Outline Dim.: | 495.6(H)×292.2(V) ×11.1(D) Mm | Bezel Area: | 479.84(H)×271.31(V) Mm |
| Weight: | 1.67Kgs (Typ.) | Designed For: | Desktop Monitor / TV Sets |
Product Description
21.5 inch T215HVN01.0 1920×1080 Lcd Screen Display Touch Digitizer Spare Parts Assembly Replacement
Product details :
| AUO LCD SCREEN T215HVN01.0 | |
| Manufacturer | AUO |
| Model Name | T215HVN01.0 |
| Screen Size | 21.5 inch |
| Screen Type | a-Si TFT-LCD , LCM |
| Pixel Number | 1920(RGB)×1080, FHD, 102PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 476.64(W)×268.11(H) mm |
| Outline(mm) | 495.6(W)×292.2(H) ×11.1(D) mm |
| Bezel Area(mm) | 479.84(W)×271.31(H) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 3000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 18 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | VA, Normally Black, Transmissive |
| Color Depth | 16.7M 77% NTSC |
| Backlight | 17S4P WLED , 30K hours , Without Driver |
| Mass | 1.67Kgs (Typ.) |
| Used for | Desktop Monitor / TV Sets |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
Helpful Information:
To make sure you purchase a correct screen, please be sure to match size, resolution, and backlight of product. If you are uncertain, please contact us with your lcd brand/serial/model, or model number on back of the screen. Our technicians will help you to choose the correct screen.
Shipping and Package :
Shipping :
1, Shipping via China Post Registered Air Mail or ePacket.
2, We will send out your goods within 3 working days after we get your order .
3, Normally , you can get the goods within 27 calendar days .
4, Please make sure your shipping information ( including address / post code / phone number / contact person ) are correct before order . If you want us send it to another address , pls inform us in advance , and leave message in our transaction.
Warranty :
1, We take 6 months warranty from the shipping date , no matter what quality problem it's .
2, Pls keep in touch with us , if you have any problems pls contact us immediately , we will help you to solve the problem ASAP.
Contact Us:
- If you haven't received your goods over 45days(Except Christmas and New year day). Please contact me immediately.
- Resend or a full refund will be issued to you without any excuse
- We care about our valued customers and will do our best to help you. So if you have any questions, please contact me immediately.
- Thank you for your support !
FAQ :
Q: Can You declare my order of T215HVN01.0 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of T215HVN01.0 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of T215HVN01.0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of T215HVN01.0 ?
A: Of course!sample order is welcome !
