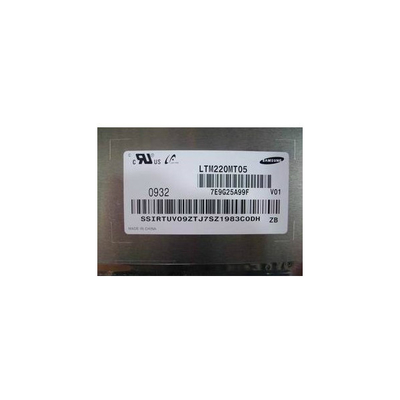

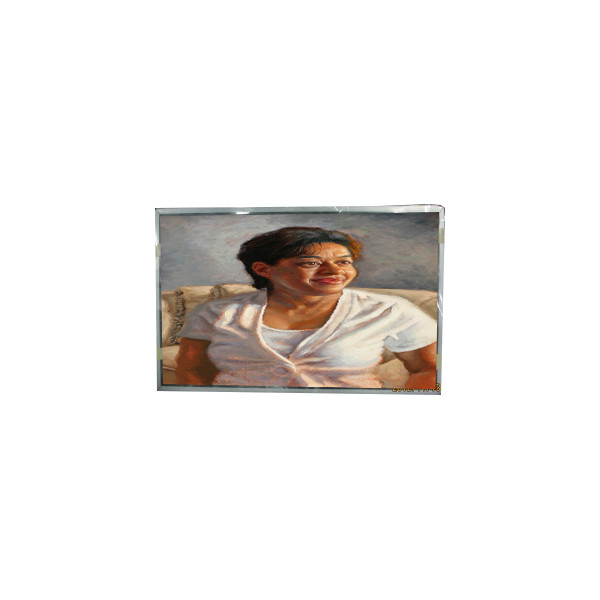

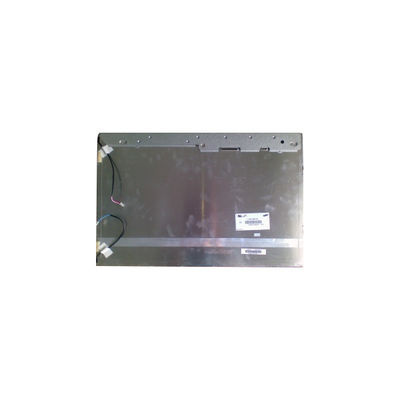

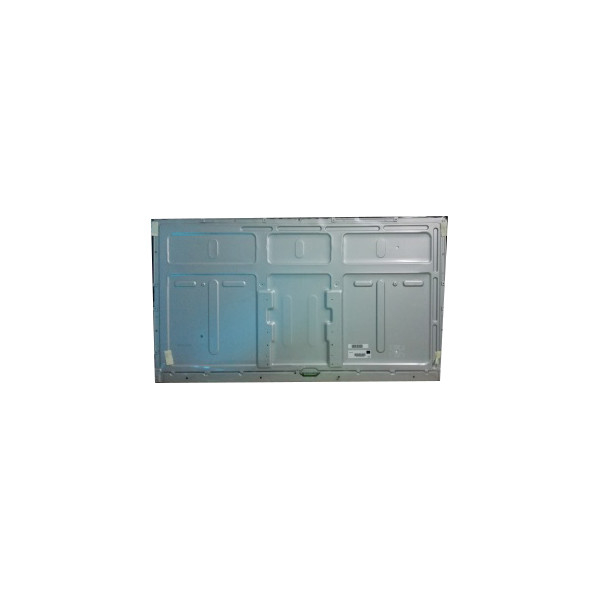

LTM220MT05 22.0 Inch 1680*1050 60Hz LCD Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Samsung |
| Model Number: | LTM220MT05 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTM220MT05 | Diagonal Size: | 22.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1680(RGB)×1050, WSXGA+ 90PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 473.76(W)×296.1(H) Mm |
| Touch Panel: | Without | Used For: | Desktop Monitor |
| Highlight: | 1920*1080 LCD Screen Display Panel,V400HJ6-ME2 LCD Screen Display Panel,40.0 inch LCD Screen Display Panel |
||
Product Description
LTM220MT05 22.0 Inch 1680*1050 60Hz LCD Screen Display Panel
LTM220MT05 LCD Panel Product details :
| Brand | Samsung |
| Model P/N | LTM220MT05 |
| Diagonal Size | 22.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1680(RGB)×1050, WSXGA+ 90PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 473.76(W)×296.1(H) mm |
| Bezel Opening | 477.7(W)×300.1(H) mm |
| Outline Size | 493.7(W)×320.1(H)×17(D) mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | - |
| Response Time | 5 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 72%NTSC |
| Lamp Type | 2 pcsCCFL, 50K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 2.60Kgs (Max.) |
| Application | Desktop Monitor |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 60 °C |
LTM220MT05 LCD Panel Note :
Model Verification:
Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.
Comprehensive Testing:
We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.
LTM220MT05 LCD Panel Shipping and Package :
LTM220MT05 LCD Panel Shipping Guidelines:
Address Confirmation:
It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.
Shipment Timeline:
Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.
LTM220MT05 LCD Panel ESTIMATED DELIVERY TIME :
Standard Shipping:
The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.
Expedited Shipping:
For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.
LTM220MT05 LCD Panel FAQ :
Q: Can I pay my goods LTM220MT05 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods LTM220MT05 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
Q: Can you give me a discount if I need a large quantity of LTM220MT05 ?
A: Of course!If you make a large order, we will give you a discount.
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: How long will I receive my goods of LTM220MT05 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
