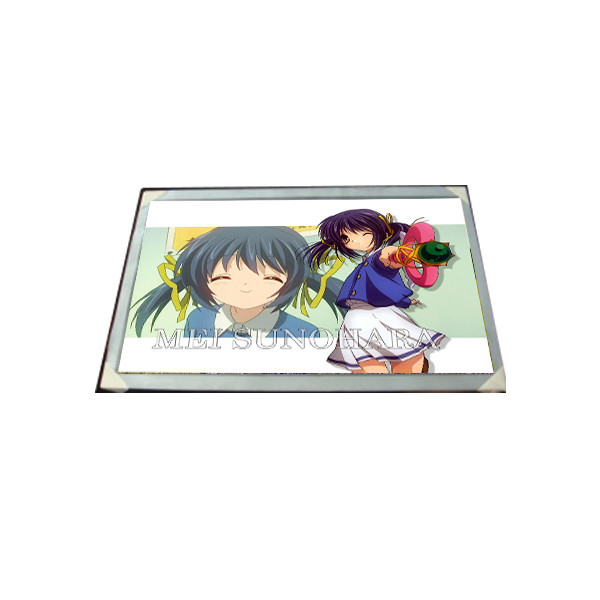

Original 1600*1200 LM201U05-SLM1 20.1 inch 300 cd/m2 LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LM201U05-SLM1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM201U05-SLM1 | Diagonal Size: | 20.1" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1600(RGB)×1200, UXGA 99PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 408(W)×306(H) Mm |
| Touch Panel: | Without | Used For: | Desktop Monitor |
| Highlight: | V400HJ6-MD1 LCD Screen,1920*1080 LCD Screen,300 cd/m2 LCD Screen |
||
Product Description
Original 1600*1200 LM201U05-SLM1 20.1 inch 300 cd/m2 LCD Screen
LM201U05-SLM1 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LM201U05-SLM1 |
| Diagonal Size | 20.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1600(RGB)×1200, UXGA 99PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 408(W)×306(H) mm |
| Bezel Opening | 413.0(W)×311.0(H) mm |
| Outline Size | 432(W)×331.5(H)×25.5(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 6.5/7.5 (Typ.)(Tr/Td), 6 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Color Depth | 16.7M 72%NTSC |
| Backlight | 6 pcsCCFL, 45K hours, No Driver |
| Mass | 3.20/3.25Kgs (Typ./Max.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Voltage Supply | 18.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
LM201U05-SLM1 LCD Panel Note :
Model Verification:
Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.
Comprehensive Testing:
We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.
LM201U05-SLM1 LCD Panel Shipping and Package :
LM201U05-SLM1 LCD Panel Shipping Guidelines:
Address Confirmation:
It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.
Shipment Timeline:
Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.
LM201U05-SLM1 LCD Panel ESTIMATED DELIVERY TIME :
Standard Shipping:
The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.
Expedited Shipping:
For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.
LM201U05-SLM1 LCD Panel FAQ :
Q: Can I pay my order of LM201U05-SLM1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of LM201U05-SLM1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of LM201U05-SLM1 ?
A: Of course!sample order is welcome !
Q: How can I trace my order of LM201U05-SLM1 ?
A: we will give you tracking number then you can trace your order from website.
Want to Know more details about this product
