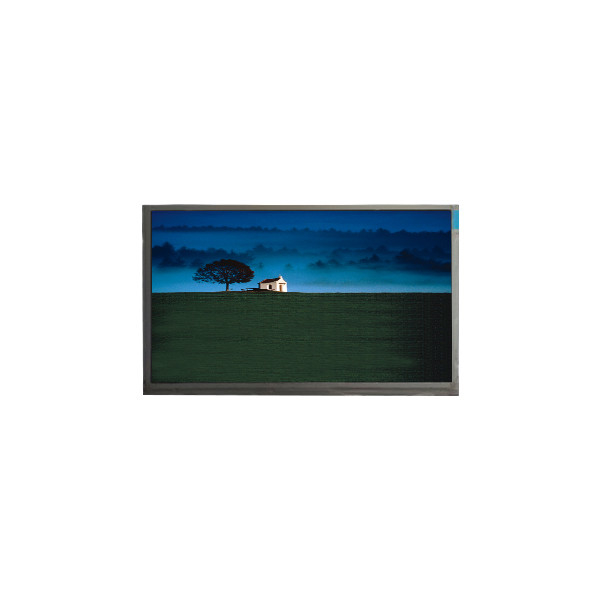

hot sell 1440*900 19.0 inch M190MWW3 R1 30 pins LCD Screen

Brand Name:	IVO
Model Number:	M190MWW3 R1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M190MWW3 R1

Diagonal Size:

19.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1440(RGB)×900, WXGA+ 89PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

408.24(W)×255.15(H) Mm

Touch Panel:

Without

Used For:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Highlight:

40.0 inch LCD Screen

92 pins LCD Screen

V400DK2-KS5 LCD Screen

Product Description

hot sell 1440*900 19.0 inch M190MWW3 R1 30 pins LCD Screen

M190MWW3 R1 LCD Panel Product details :

Brand	IVO
Model P/N	M190MWW3 R1
Diagonal Size	19.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1440(RGB)×900, WXGA+ 89PPI
Pixel Format	RGB Vertical Stripe
Active Area	408.24(W)×255.15(H) mm
Bezel Opening	412.24(W)×259.15(H) mm
Outline (mm)	428×278×17 (H×V×D)
Treatment	Antiglare, Hard coating
Luminance	250 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Response	5 (Typ.)(Tr+Td) ms
Good View at	-
Work Mode	TN, Normally White, Transmissive
Color Depth	16.7M 72%NTSC
Backlight	2 pcsCCFL, 50K hours, No Driver
Mass	2.25Kgs
Used for	Desktop Monitor
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (2 ch, 8-bit), Connector30 pins
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

M190MWW3 R1 LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

M190MWW3 R1 LCD Panel Shipping and Package :

hot sell 1440*900 19.0 inch M190MWW3 R1 30 pins LCD Screen 0

M190MWW3 R1 LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

M190MWW3 R1 LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

M190MWW3 R1 LCD Panel FAQ :

Q: Can you test the lcd panel M190MWW3 R1 before shipping ?

A: Yes , of course , don't worry , our item was tested ok before shipping .

Q: Do you accept the sample order M190MWW3 R1 ?

A: Yes , sample order is welcome.

Q: Can you declared low value of my order M190MWW3 R1 ?

A: Yes , we can , you can tell us before shipping .

Q: How long the warranty of lcd M190MWW3 R1 ?

A: 90 days .
