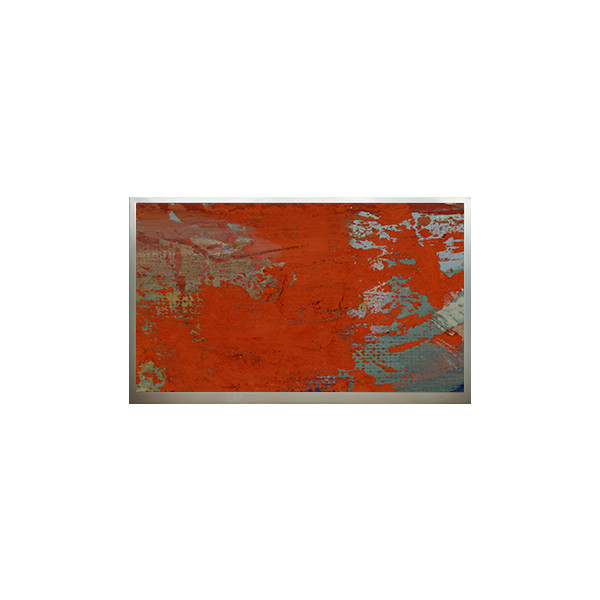

Original 22.0 Inch M220Z2-L02 30 Pins LCD Module Panel

All Category

Floor Standing Digital Signage

Multi Touch Screen Panel

chance

info@yongs-hk.com

86-18575563918

Contact Now

Original 22.0 Inch M220Z2-L02 30 Pins LCD Module Panel

Brand Name:	Innolux
Model Number:	M220Z2-L02
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M220Z2-L02

Diagonal Size:

22.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1680(RGB)×1050, WSXGA+ 90PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

473.76(W)×296.1(H) Mm

Touch Panel:

Without

Used For:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Highlight:

V400DJ2-B02 LCD Module Panel

51 pins LCD Module Panel

40.0 inch LCD Module Panel

Product Description

Original 22.0 Inch M220Z2-L02 30 Pins LCD Module Panel

M220Z2-L02 LCD Panel Product details :

Brand	CMO
Model P/N	M220Z2-L02
Diagonal Size	22.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1680(RGB)×1050, WSXGA+ 90PPI
Pixel Format	RGB Vertical Stripe
Active Area	473.76(W)×296.1(H) mm
Bezel Opening	477.7(W)×300.1(H) mm
Outline Dim.	493.7(H)×320.1(V)×21.92(D)mm
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	1.3/3.7 (Typ.)(Tr/Td)
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	16.7M 104%NTSC
Light Source	RGB LED [13S12P], 30K hours, With LED Driver
Weight	2.50Kgs (Max.)
Designed For	Desktop Monitor
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (2 ch, 8-bit), 30 pinsConnector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

M220Z2-L02 LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

M220Z2-L02 LCD Panel Shipping and Package :

Original 22.0 Inch M220Z2-L02 30 Pins LCD Module Panel 0

M220Z2-L02 LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

M220Z2-L02 LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

M220Z2-L02 LCD Panel FAQ :

Q: What happen if the lcd panel M220Z2-L02 I received can't work ?

A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

Q: Can you declared low value of my order about M220Z2-L02 ?

A: Yes , we can . But you need to leave message to us before shipping.

Q: When will my order M220Z2-L02 ?

A: The order are shipped within 1-2 working days after received the payment.

Q: How to order M220Z2-L02 ?

A: We accept T/T , PAYPAL , WESTERN UNION .
