High Quality 19.0 inch M190A1-PSA 1440*900 LCD Module

All Category

Floor Standing Digital Signage

High Quality 19.0 inch M190A1-PSA 1440*900 LCD Module

Brand Name:	Innolux
Model Number:	M190A1-PSA
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M190A1-PSA

Diagonal Size:

19.0"

Panel Type:

A-Si TFT-LCD, CELL, FOB

Resolution:

1440(RGB)×900, WXGA+ 89PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

408.24(W)×255.15(H) Mm

Touch Panel:

Without

Used For:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Highlight:

40.0 inch LCD Module

V400DJ1-QS5 Rev.M2 LCD Module

3840*2160 LCD Module

Product Description

High Quality 19.0 inch M190A1-PSA 1440*900 LCD Module

M190A1-PSA LCD Panel Product details :

Brand	CMO
Model P/N	M190A1-PSA
Diagonal Size	19.0"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1440(RGB)×900, WXGA+ 89PPI
Pixel Format	RGB Vertical Stripe
Active Area	408.24(W)×255.15(H) mm
Bezel Opening	-
Outline Size	419.84(W)×266.05(H)×1.82(D) mm
Brightness	0 cd/m²
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)
Best View on	-
Glass Depth	0.70+0.70 mm
Display Colors	262K 59%NTSC
Frequency	60Hz
Weight	460g (Max.)
Surface	Antiglare (Haze 25%), Hard coating (3H)
Contrast Ratio	1000:1 (Typ.) (TM)
Display Mode	TN, Normally White, Transmissive
Response Time	1.5/3.5 (Typ.)(Tr/Td)
Transmissivity	5.6% (Typ.)(with Polarizer)
Lamp Type	No B/L
Touch Screen	Without
Application	Desktop Monitor
Driver IC	COGBuilt-in 6 source + 3 gate COG chips
Signal Interface	RSDS (2 Channel), 55 pinsConnector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C

M190A1-PSA LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

M190A1-PSA LCD Panel Shipping and Package :

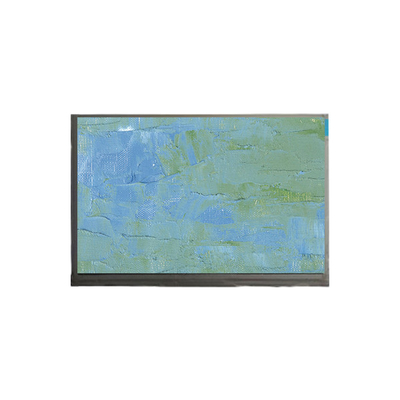

High Quality 19.0 inch M190A1-PSA 1440*900 LCD Module 0

M190A1-PSA LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

M190A1-PSA LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

M190A1-PSA LCD Panel FAQ :

Q: How to make payment of M190A1-PSA ?

A: We accept T/T , Paypal , western union .

Q: If I place order now,when will you ship the goods of M190A1-PSA ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can You declare my order of M190A1-PSA to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty ?

A: We offer 90 days warranty .
