LCD Screen Display Panel

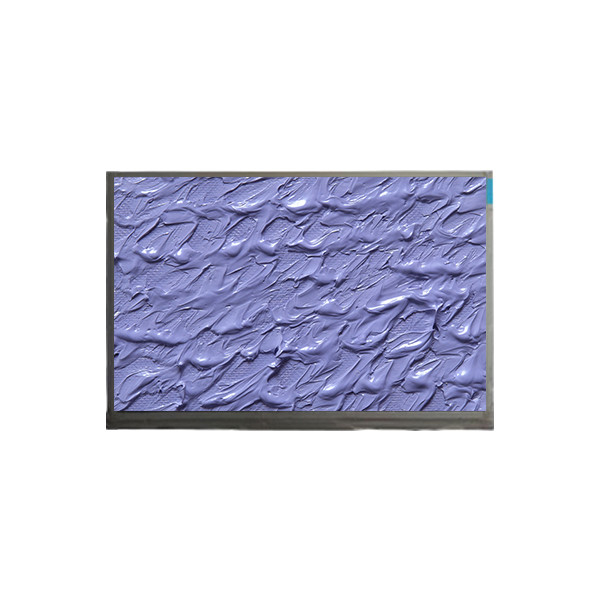

M185B1-P01 18.5 inch 1366*768 TFT LCD Panel

All Category

Floor Standing Digital Signage

M185B1-P01 18.5 inch 1366*768 TFT LCD Panel

Brand Name:	Innolux
Model Number:	M185B1-P01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M185B1-P01

Diagonal Size:

18.5"

Panel Type:

A-Si TFT-LCD, CELL, FOB

Resolution:

1366(RGB)×768, WXGA 84PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

409.8(W)×230.4(H) Mm

Touch Panel:

Without

Used For:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Highlight:

3840*2160 LCD Panel

V400DJ1-QS5 Rev.M1 LCD Panel

40.0 inch LCD Panel

Product Description

M185B1-P01 18.5 inch 1366*768 TFT LCD Panel

M185B1-P01 LCD Panel Product details :

Brand	CMO
Model P/N	M185B1-P01
Diagonal Size	18.5"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1366(RGB)×768, WXGA 84PPI
Pixel Format	RGB Vertical Stripe
Active Area	409.8(W)×230.4(H) mm
Bezel Opening	-
Outline Size	420.65(W)×241.25(H)×1.83(D) mm
Surface	Antiglare (Haze 25%), Hard coating (3H)
Brightness	0 cd/m²
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	-
Response Time	1.3/3.7 (Typ.)(Tr/Td)
Glass Depth	0.70+0.70 mm
Transmissivity	6.0% (Typ.)(with Polarizer)
Display Colors	16.7M 68%NTSC
Lamp Type	No B/L
Frequency	60Hz
Touch Screen	Without
Driver IC	COF Built-in 6 source chips
Panel Weight	415/435g (Typ./Max.)
Application	Desktop Monitor
Signal Interface	LVDS (1 ch, 8-bit), 30 pins Connector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C

M185B1-P01 LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

M185B1-P01 LCD Panel Shipping and Package :

M185B1-P01 18.5 inch 1366*768 TFT LCD Panel 0

M185B1-P01 LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

M185B1-P01 LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

M185B1-P01 LCD Panel FAQ :

Q: How to order lcd panel M185B1-P01 ?

A: We accept T/T , PAYPAL , WESTERN UNION.

Q: When will my order lcd panel M185B1-P01 ?

A: The order are shipped within 1-2 working days after received the payment.

Q: Can you test lcd panel M185B1-P01 before shipping?

A: Don't Worry , Our M185B1-P01 was tested ok before shipping

Q: What happen if M185B1-P01 I received can't work ?

A: Our lcd M185B1-P01 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
