products details

Home > Products >

LCD Laptop Screen

15.6 inch N156B3-L01 1366*768 60Hz LCD Screen in stock

All Category

Floor Standing Digital Signage

15.6 inch N156B3-L01 1366*768 60Hz LCD Screen in stock

Brand Name:	CMO
Model Number:	N156B3-L01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

N156B3-L01

Diagonal Size:

15.6"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1366(RGB)×768, WXGA 100PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

344.232(W)×193.536(H) Mm

Touch Panel:

Without

Used For:

Laptop

Supply Ability:

100000 Unit/Units per Month

Highlight:

1920*1080 LCD Screen

60Hz LCD Screen

V390HN1-P02 LCD Screen

Product Description

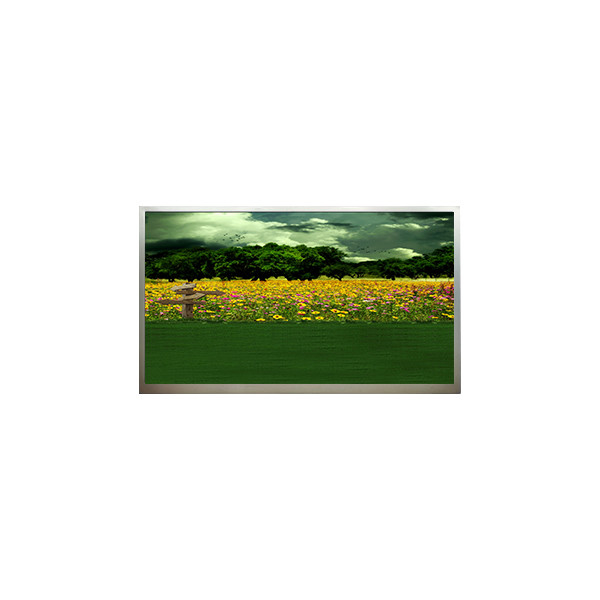

15.6 inch N156B3-L01 1366*768 60Hz LCD Screen in stock

N156B3-L01 LCD Panel Product details :

Brand	CMO
Model P/N	N156B3-L01
Diagonal Size	15.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 100PPI
Pixel Format	RGB Vertical Stripe
Active Area	344.232(W)×193.536(H) mm
Bezel Opening	348.43(W)×197.74(H) mm
Outline Dim.	359.3(W)×209.5(H)×6.2(D) mm
Luminance	220 cd/m² (Typ.)
View Direction	6 o'clock
Viewing Angle	45/45/20/45 (Typ.)(CR≥10)
Support Color	262K 60% NTSC
Form Style	Wedge (PCBA Bent, T≥5.2mm)
Frame Rate	60Hz
Treatment	Antiglare, Hard coating (3H)
Contrast Ratio	400:1 (Typ.) (TM)
Response Time	3/7 (Typ.)(Tr/Td)
Operating Mode	TN, Normally White, Transmissive
Light Source	CCFL [1 pcs] , 15K hours , W/O Driver
Designed For	Laptop
Touch Panel	Without
Interface Type	LVDS (1 ch, 6-bit)30 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C

N156B3-L01 LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

N156B3-L01 LCD Panel Shipping and Package :

15.6 inch N156B3-L01 1366*768 60Hz LCD Screen in stock 0

N156B3-L01 LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

N156B3-L01 LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

N156B3-L01 LCD Panel FAQ :

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can you give me a discount if I need a large quantity of N156B3-L01 ?

A: Of course!If you make a large order, we will give you a discount.

Q: If I place order now,when will you ship the goods of N156B3-L01 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders of N156B3-L01 ?

A: Of course!sample order is welcome !
