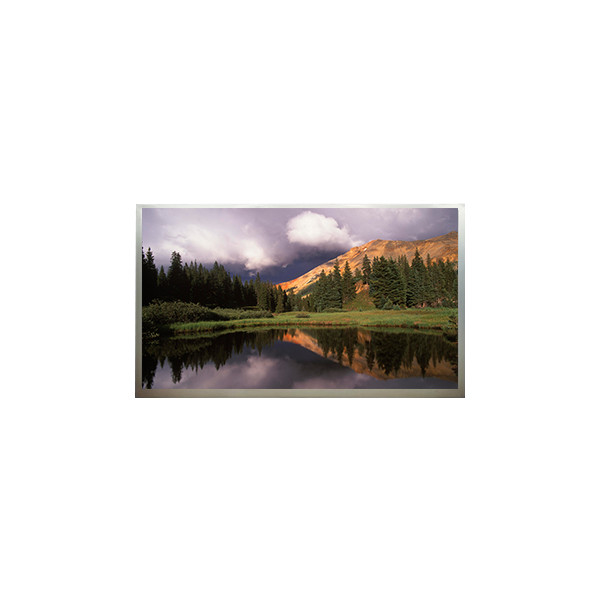

Hot Sell 1366*768 N134B6-L03 13.4 inch LCD Module
Product Details:
| Place of Origin: | China |
| Brand Name: | CMO |
| Model Number: | N134B6-L03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | N134B6-L03 | Diagonal Size: | 13.4" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1366(RGB)×768, WXGA 117PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 296.422(W)×166.656(H) Mm |
| Frame Rate: | 60Hz | Used For: | Laptop |
| Highlight: | 1366*768 LCD Module,V236BJ1-P01 Rev.C3 LCD Module,23.6 inch LCD Module |
||
Product Description
Hot Sell 1366*768 N134B6-L03 13.4 inch LCD Module
N134B6-L03 LCD Panel Product details :
| Brand | CMO |
| Model P/N | N134B6-L03 |
| Diagonal Size | 13.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 117PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 296.422(W)×166.656(H) mm |
| Bezel Opening | 299.422(W)×169.565(H) mm |
| Outline(mm) | 307.2(W)×194.8(H)×3.5(D) |
| Luminance | 220 (Typ.)(cd/m²) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) |
| Good View at | 6 o'clock |
| Color Depth | 262K 49% NTSC |
| Outline Shape | Flat (PCBA Flat, T3.4~4.0mm) |
| Refresh Rate | 60Hz |
| Treatment | Antiglare, Hard coating (3H) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Work Mode | TN, Normally White, Transmissive |
| Response | 2/6 (Typ.)(Tr/Td) ms |
| Backlight | 6 strings WLED , 12K hours , With LED Driver |
| Used for | Laptop |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6-bit), 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
N134B6-L03 LCD Screen Regarding Us:
For over a decade, we have been a trusted name in the Chinese market, specializing in the sale of high-quality LCD screens. Our extensive experience and dedication have allowed us to cater to a diverse range of industries, particularly focusing on industrial and medical applications. Whether you need compact screens as small as 0.5 inches or larger displays up to 88 inches, we have a broad selection to meet your requirements.
Our Product Range
We offer a comprehensive range of LCD screens from some of the most renowned and reliable brands in the industry. Our inventory includes:
Hitachi: Known for their durable and high-performance displays.
Samsung: Leading the market with cutting-edge technology and innovation.
Sharp: Renowned for their crystal-clear display quality and reliability.
NEC: A preferred choice for professional-grade monitors and displays.
Tianma: Recognized for their advanced industrial display solutions.
AUO: Providing a wide range of sizes and applications.
Fujitsu: Offering robust and efficient LCD solutions.
Kyocera: Known for their long-lasting and high-quality displays.
Technical Support
Beyond just providing screens, we also offer partial technical support to ensure that you can make the most out of your purchase. Our technical team is always ready to assist you with installation, troubleshooting, and any other technical queries you might have. We are committed to ensuring that our customers not only receive top-tier products but also the support they need to operate them efficiently.
N134B6-L03 LCD Panel Shipping and Package :
N134B6-L03 LCD Screen Shipping Information:
Quality Assurance
Before shipping, we conduct rigorous testing on all our LCD screens to ensure they meet our high standards of quality and performance. This thorough testing process helps us guarantee that you receive a product that is in perfect working condition.
Shipping Timeline
Once your payment is confirmed, we will proceed with the shipping process. Typically, we ship orders within 1-3 working days. Please be assured that we prioritize efficiency and aim to get your order to you as quickly as possible.
Shipping Address
We ship orders according to the shipping address provided at the time of purchase. If you need to change the shipping address, please contact us promptly to update your information before we dispatch your order. It's crucial to inform us in advance to avoid any shipping delays or errors.
Estimated Delivery Time
The delivery time for your order may vary depending on your location. Generally, you can expect your package to arrive within 7-30 days. Delivery times can differ significantly between countries due to factors such as customs processing and local postal services.
N134B6-L03 LCD Screen Returns Policy :
30-Day Money Back Guarantee
If you are not entirely satisfied with your LCD screen purchase, you can return it within 30 days of the purchase date for a full refund.
Return Process
Contact Us: To initiate a return, please contact our customer service team. Provide your purchasing information, including the order number and any other details that were sent to you at the time of purchase. This information helps us process your return efficiently.
Return Period: Ensure that your return is made within 30 days from the date of purchase. Returns made after this period may not be eligible for a refund.
Important Notes
The returned item must be in its original condition, including all accessories and packaging materials.
We recommend using a trackable shipping method for your return to ensure that it reaches us safely.
Once we receive and inspect the returned item, we will process your refund. Please allow a few business days for the refund to appear in your account.
N134B6-L03 LCD Panel FAQ :
Q: How do you ship my goods N134B6-L03 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of N134B6-L03 ?
A: 90days warranty .
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of LCD panel N134B6-L03 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Want to Know more details about this product
