LCD Screen Display Panel

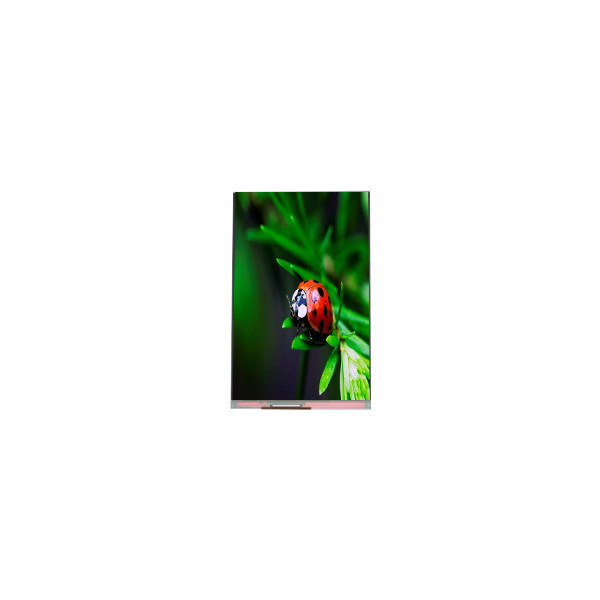

PJ055SA-03A 1080*1920 5.5 inch 16.7M LCD screen High Quality

All Category

Floor Standing Digital Signage

PJ055SA-03A 1080*1920 5.5 inch 16.7M LCD screen High Quality

Brand Name:	Innolux
Model Number:	PJ055SA-03A
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

PJ055SA-03A

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, Q-CUT (Full Cell)

Resolution:

1080(RGB)×1920, FHD 403PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

68.04(W)×120.96(H) Mm

Touch Screen:

Without

Designed For:

Mobile Phone

Supply Ability:

100000 Unit/Units per Month

Product Description

PJ055SA-03A 1080*1920 5.5 inch 16.7M LCD screen High Quality

PJ055SA-03A LCD Panel Product details :

Brand	Innolux
Model P/N	PJ055SA-03A
Diagonal Size	5.5"
Panel Type	a-Si TFT-LCD, CELL, Q-CUT (Full Cell)
Resolution	1080(RGB)×1920, FHD 403PPI
Pixel Format	RGB Vertical Stripe
Active Area	68.04(W)×120.96(H) mm
Bezel Opening	-
Outline(mm)	70.44 × 128.06× 0.4 (H×V×D)
Treatment	-
Luminance	0 cd/m²
Contrast Ratio	800 : 1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Min.)(CR≥10)
Response	25 (Typ.)(Tr+Td) ms
Good View at	Symmetry
Work Mode	IPS, Normally Black, Transmissive
Glass Thickness	0.20+0.20 mm
Transmissivity	3.2% (Typ.)
Color Depth	16.7M 70%NTSC
Backlight	No B/L
Mass	-
Used for	Mobile Phone
Refresh Rate	60Hz
Touchscreen	Without
Driver IC list	Suggest COG NT35521
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
PJ055SA-03A 1080*1920 5.5 inch 16.7M LCD screen High Quality

PJ055SA-03A LCD Screen Regarding Us:

For over a decade, we have been a trusted name in the Chinese market, specializing in the sale of high-quality LCD screens. Our extensive experience and dedication have allowed us to cater to a diverse range of industries, particularly focusing on industrial and medical applications. Whether you need compact screens as small as 0.5 inches or larger displays up to 88 inches, we have a broad selection to meet your requirements.

Our Product Range

We offer a comprehensive range of LCD screens from some of the most renowned and reliable brands in the industry. Our inventory includes:

Hitachi: Known for their durable and high-performance displays.

Samsung: Leading the market with cutting-edge technology and innovation.

Sharp: Renowned for their crystal-clear display quality and reliability.

NEC: A preferred choice for professional-grade monitors and displays.

Tianma: Recognized for their advanced industrial display solutions.

AUO: Providing a wide range of sizes and applications.

Fujitsu: Offering robust and efficient LCD solutions.

Kyocera: Known for their long-lasting and high-quality displays.

Technical Support

Beyond just providing screens, we also offer partial technical support to ensure that you can make the most out of your purchase. Our technical team is always ready to assist you with installation, troubleshooting, and any other technical queries you might have. We are committed to ensuring that our customers not only receive top-tier products but also the support they need to operate them efficiently.

PJ055SA-03A LCD Panel Shipping and Package :

PJ055SA-03A 1080*1920 5.5 inch 16.7M LCD screen High Quality 0

PJ055SA-03A LCD Screen Shipping Information:

Quality Assurance

Before shipping, we conduct rigorous testing on all our LCD screens to ensure they meet our high standards of quality and performance. This thorough testing process helps us guarantee that you receive a product that is in perfect working condition.

Shipping Timeline

Once your payment is confirmed, we will proceed with the shipping process. Typically, we ship orders within 1-3 working days. Please be assured that we prioritize efficiency and aim to get your order to you as quickly as possible.

Shipping Address

We ship orders according to the shipping address provided at the time of purchase. If you need to change the shipping address, please contact us promptly to update your information before we dispatch your order. It's crucial to inform us in advance to avoid any shipping delays or errors.

Estimated Delivery Time

The delivery time for your order may vary depending on your location. Generally, you can expect your package to arrive within 7-30 days. Delivery times can differ significantly between countries due to factors such as customs processing and local postal services.

PJ055SA-03A LCD Screen Returns Policy :

30-Day Money Back Guarantee

If you are not entirely satisfied with your LCD screen purchase, you can return it within 30 days of the purchase date for a full refund.

Return Process

Contact Us: To initiate a return, please contact our customer service team. Provide your purchasing information, including the order number and any other details that were sent to you at the time of purchase. This information helps us process your return efficiently.

Return Period: Ensure that your return is made within 30 days from the date of purchase. Returns made after this period may not be eligible for a refund.

Important Notes

The returned item must be in its original condition, including all accessories and packaging materials.

We recommend using a trackable shipping method for your return to ensure that it reaches us safely.

Once we receive and inspect the returned item, we will process your refund. Please allow a few business days for the refund to appear in your account.

PJ055SA-03A LCD Panel FAQ :

Q: If I place order now,when will you ship the goods of PJ055SA-03A?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can you give me a discount if I need a large quantity of PJ055SA-03A?

A: Of course!If you make a large order, we will give you a discount.

Q: How long will I receive my goods PJ055SA-03A?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How to make payment of PJ055SA-03A?

A: We accept T/T , Paypal , western union .
