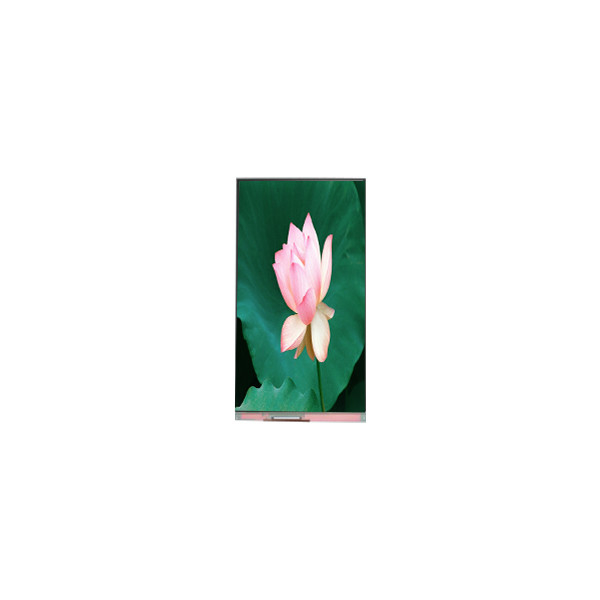

PD064JC-06J 6.4 inch 720*1560 60Hz LCD Screen Monitor

Brand Name:	Innolux
Model Number:	PD064JC-06J
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

PD064JC-06J

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, Q-CUT (Full Cell)

Resolution:

720(RGB)×1560 268PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

68.04(W)×147.42(H) Mm

Designed For:

Mobile Phone

Touchscreen:

In-Cell Touch, SPI

Supply Ability:

100000 Unit/Units per Month

Product Description

PD064JC-06J 6.4 inch 720*1560 60Hz LCD Screen Monitor

PD064JC-06J LCD Panel Product details :

Brand	Innolux
Model P/N	PD064JC-06J
Diagonal Size	6.4"
Panel Type	LTPS TFT-LCD, CELL, Q-CUT (Full Cell)
Resolution	720(RGB)×1560 268PPI
Pixel Format	RGB Vertical Stripe
Active Area	68.04(W)×147.42(H) mm
Bezel Opening	-
Outline Size	70.04(W)×151.52(H)×0.32(D) mm
Brightness	0 cd/m²
Viewing Angle	80/80/80/80 (Min.)(CR≥10)
Best View on	Symmetry
Glass Depth	0.16+0.16 mm
Display Colors	16.7M 70%NTSC
Frequency	60Hz
Weight	-
Surface	Without Polarizer
Contrast Ratio	1000:1 (Typ.) (TM)
Display Mode	AAS, Normally Black, Transmissive
Response Time	26 (Max.)(Tr+Td)
Transmissivity	4.8% (Typ.)(with Polarizer)
Lamp Type	No B/L
Touch Screen	In-Cell Touch, SPI
Application	Mobile Phone
Driver IC	COGSuggest NT36572A, FT8615,ILI7807G, TD4320
PD064JC-06J 6.4 inch 720*1560 60Hz LCD Screen Monitor

PD064JC-06J LCD Panel Payment Instructions :

Accepted Payment Methods:

We prioritize the safety and convenience of our customers by accepting payments through Escrow, which allows you to pay securely online using your Credit Card.

Payment Timeline:

To ensure the timely processing and shipping of your order, please make your payment within 3 days of placing the order. Prompt payment is appreciated and helps us maintain efficient service. If you encounter any issues or delays with your payment, please don't hesitate to contact us immediately. We are here to assist you and resolve any problems to ensure a smooth transaction.

PD064JC-06J LCD Panel Shipping and Package :

PD064JC-06J LCD Panel Shipment Information :

Shipping Address:

We will ship your order to the address provided at the time of payment. Please ensure the address you entered is correct and up-to-date to avoid any delivery issues.

Estimated Delivery Time:

Typically, your order will arrive within 15-35 days. For orders shipped to Brazil, the estimated delivery time is 20-40 days. Some countries or regions may experience longer shipping times.

Delayed Shipments:

If your parcel has not arrived within the expected timeframe, please contact us first before taking any further action. We are here to assist you and will work to provide a satisfactory resolution.

Dispute Policy:

Please refrain from opening a dispute within the first 60 days after placing your order. If your order has not arrived after 60 days, you may contact us to request a refund or a resend of the product.

Customs Duty and Import Tax:

We are not responsible for any customs duties or import taxes that may be applicable in your country. Please check your local customs regulations for more information.

Important Instructions for Receiving and Handling Your PD064JC-06J LCD Panel :

Inspecting the Package Upon Arrival:

When you receive the package, carefully inspect its condition.

If you notice any obvious damage, dents, or deformities, prepare to record a video as you open the package. This evidence is crucial for any potential claims.

Reporting Damaged Goods:

If you find that the LCD panel is damaged, immediately take detailed images and videos showing the damage.

Send these visuals to us to document the issue.

Our team will handle shipping-related damages but not those caused during installation. To secure your rights, provide the requested evidence and initiate a dispute for a refund if necessary.

Testing Before Installation:

After confirming the screen is undamaged, thoroughly test its functionality before proceeding with installation.

Do not attempt to install the screen yourself unless you are a professional. We recommend that installation be carried out by qualified technical personnel. We are not responsible for damages resulting from unprofessional installation.

Product Authenticity and Labels:

Each product from our store includes a unique anti-tear label.

Do not remove this label, as it verifies the product's authenticity and origin from our store.

Documenting Product Issues:

If you encounter any issues with the product, ensure that your video proof includes the labels as evidence.

Following these guidelines will help ensure a smooth process and protect your purchase rights. Thank you for your cooperation.

PD064JC-06J LCD Panel FAQ :

Q: How long will I receive my goods of lcd PD064JC-06J?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: When will my order PD064JC-06J ship?

A: The order are shipped within 1-2 working days after received the payment.

Q: Do you accept the sample order?

A: Yes , sample order is welcome.

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
